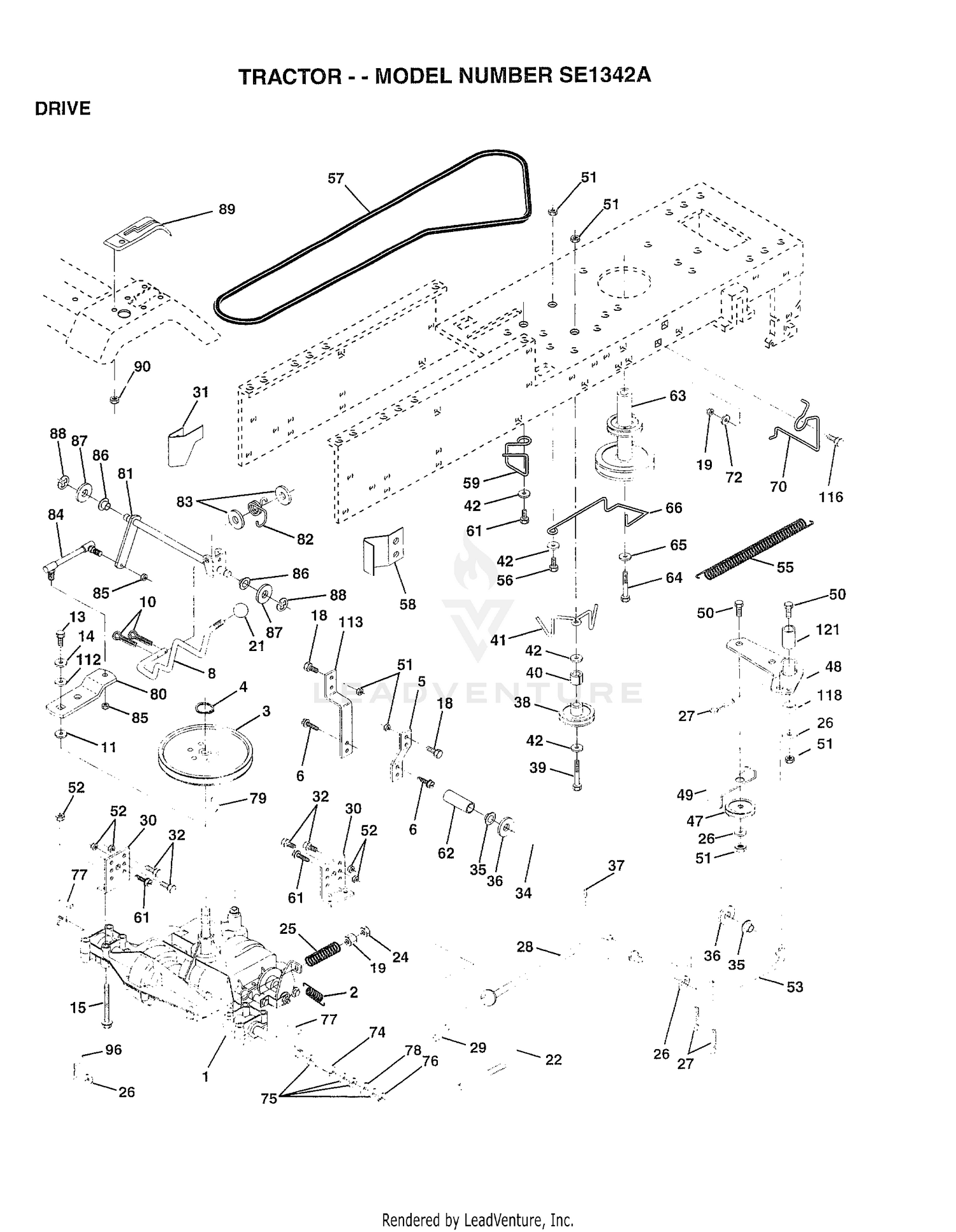

| Ref | Part Number | Description |
|---|
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 6 |
17490512 |
SCREW Price: Call Us |
| 8 |
141003 |
ROD SHIFT FEND LT Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
154777 |
SUB= 165692 Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154604 |
BELLCRANK ASM Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
137057 |
SPACER AXLE Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 81 |
156049 |
SHAFT.CROS.P930. Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 85 |
150360 |
NUT.CNT.LOCK.1/4 Price: Call Us |
| 86 |
71208 |
BUSHING Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
139964 |
SUB= 918139964 Price: Call Us |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 90 |
124346X |
NUT Price: Call Us |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 112 |
19091210 |
WASHER LT Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 118 |
154474 |
SPACER BELLCRANK Price: Call Us |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
