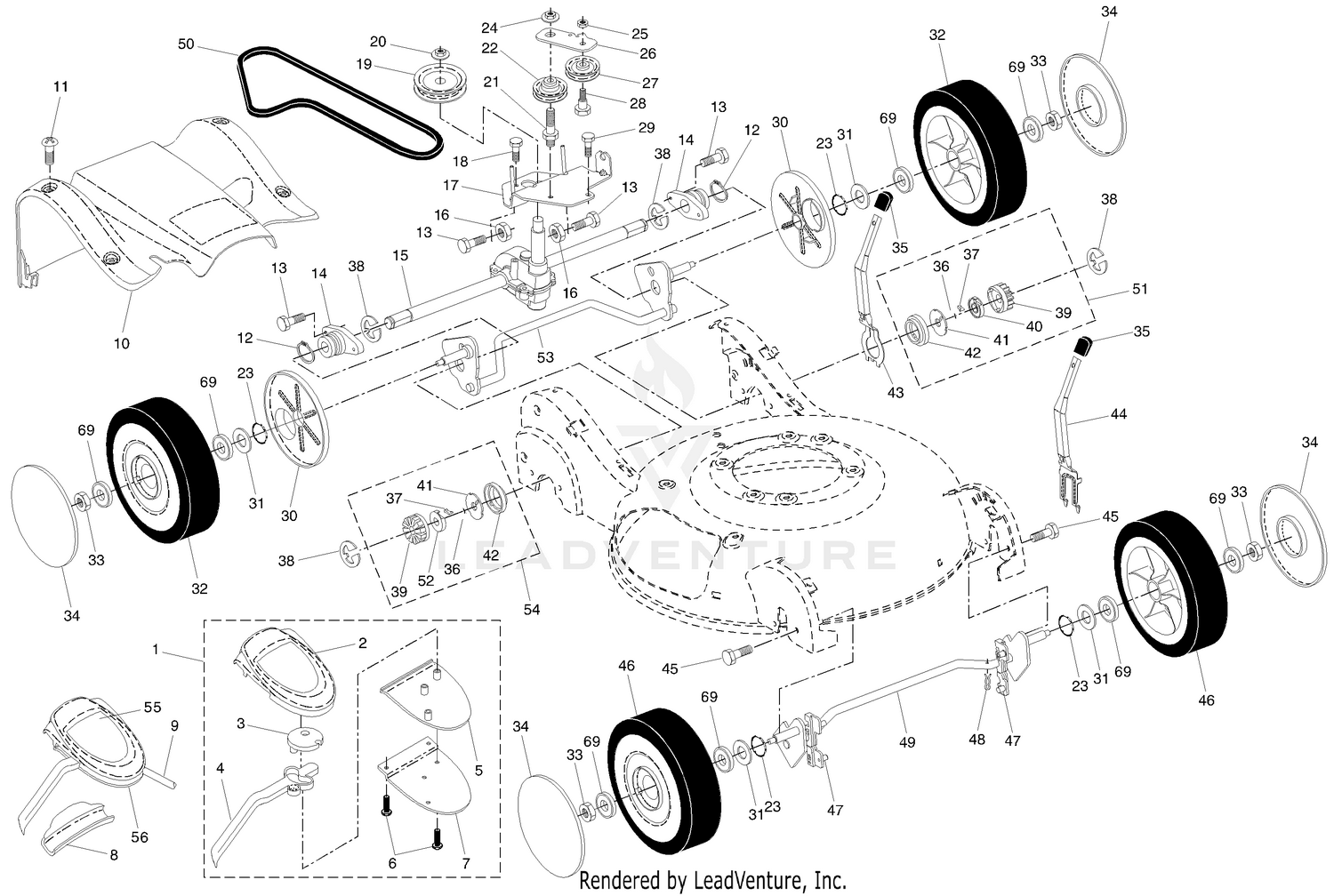

| Ref | Part Number | Description |
|---|
| 1 |
57-8800 |
INLET ASM Price: $71.04 |
| 2 |
532197168 |
KIT.CONTL.ASM.CASE.HALVES.GREY This part replaces 532188279. Price: $44.99 |
| 2 |
59-0690 |
DISCONTINUED Price: Call Us |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 3 |
59-0940 |
DISCONTINUED Price: Call Us |
| 4 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 4 |
532425662 |
LEVER.BLACK This part replaces 532190283. Price: $12.99 |
| 5 |
532197168 |
KIT.CONTL.ASM.CASE.HALVES.GREY This part replaces 532188278. Price: $44.99 |
| 5 |
57-8720 |
ADAPTER Price: $232.98 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 6 |
57-9620 |
SEAL Price: $5.93 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL This part replaces 532187097. Price: $4.99 |
| 7 |
71-6210 |
PLUG, HOLE Price: $23.20 |
| 8 |
532186297 |
EZ WALK SNAP COVER PLATE Price: $5.99 |
| 8 |
72-3890 |
SCREW Price: $2.29 |
| 9 |
532196577 |
DRIVE CONTROL CABLE This part replaces 532188280. Price: $54.99 |
| 9 |
57-9170 |
SWIVEL Price: $26.27 |
| 10 |
532188356 |
RP.COVER.DRIVE.REAR.21.HV.GRAY This part replaces 532190565. Price: $27.99 |
| 10 |
59-0460 |
SWIVEL-CHOKE Price: $20.24 |
| 11 |
532194188 |
SCREW This part replaces 532184571. Price: $3.99 |
| 11 |
59-0580 |
DISCONTINUED Price: Call Us |
| 12 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 12 |
59-0720 |
PIN-COTTER Price: $5.60 |
| 13 |
532194186 |
SCREW.1/4-20X21/4.HEX. This part replaces 532183450. Price: $3.99 |
| 13 |
59-0470 |
BRACKET Price: $13.60 |
| 14 |
532187120 |
BEARING.SUPPORT.ASSEM Price: $32.99 |
| 14 |
72-3880 |
SCREW-HWH Price: $4.14 |
| 15 |
57-9190 |
CLIP Price: $5.22 |
| 16 |
532751068 |
BEARING.8".WHEEL Price: $6.99 |
| 16 |
72-3900 |
SCREW-TAPPING Price: $5.90 |
| 17 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 17 |
532408005 |
BRACKET, GEAR CASE / DRIVE This part replaces 532187093. Price: $12.99 |
| 18 |
57-9180 |
LINK-CHOKE Price: $16.40 |
| 18 |
817541011 |
Screw Price: $9.47 |
| 19 |
532195326 |
KIT.PULLEY.IDLER. This part replaces 532184543. Price: $27.99 |
| 19 |
59-1020 |
BOLT-SHOULDER Price: $7.83 |
| 20 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 20 |
82-0530 |
DISCONTINUED Price: Call Us |
| 21 |
532188611 |
BOLT, IDLER Price: $2.99 |
| 21 |
82-0540 |
TUBE-BREATHER Price: $68.03 |
| 22 |
532194128 |
PULLEY This part replaces 532189408. Price: $17.99 |
| 22 |
57-9540 |
DISCONTINUED Price: Call Us |
| 23 |
532197480 |
O-RING..070X.487.NEOPRENE This part replaces 532188152. Price: $3.99 |
| 23 |
71-6130 |
DISCONTINUED Price: Call Us |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 24 |
82-0560 |
DISCONTINUED Price: Call Us |
| 25 |
57-8580 |
FILTER Price: $4.56 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532195327 |
KIT.PULLEY.IDLER.HI-VAC. This part replaces 532187098. Price: $5.99 |
| 26 |
82-0570 |
SEAL - O-RING Price: $12.69 |
| 27 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 27 |
82-1480 |
SCREW-TAPPING, ROUND HEAD Price: $2.69 |
| 28 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 29 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 30 |
532183457 |
DUST COVER, WHEEL Price: $4.99 |
| 31 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 32 |
532192622 |
WHEEL.9X2.25.LP.TIGER.BLACK This part replaces 532188631. Price: $69.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 34 |
532183442 |
HUBCAP.WHEEL.5.SPOKE.SILVER This part replaces 532183695. Price: $4.99 |
| 35 |
532185994 |
KNOB.SELECTOR.SPRG.H-GRY (2 2) Price: $12.99 |
| 36 |
532188291 |
SPRING, TORSION Price: $3.99 |
| 37 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $4.99 |
| 38 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 39 |
532175103 |
GEAR, PINION Price: $10.99 |
| 40 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 41 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $5.99 |
| 42 |
532184172 |
SEAL.PINION Price: $5.99 |
| 43 |
532188508 |
LEVER, SELECTOR, HEIGHT, REAR This part replaces 532190520. Price: $7.99 |
| 44 |
532188509 |
SPRING.SELECTOR.FRONT This part replaces 532190518. Price: $5.99 |
| 45 |
532163409 |
SCREW Price: $3.99 |
| 46 |
532192232 |
WHEEL.9X2.25.LP.TIGER.BLK This part replaces 532184369. Price: $43.99 |
| 47 |
532183438 |
BUSHING.FRONT.TORQUE.SHAFT Price: $5.99 |
| 48 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 49 |
532192431 |
SHAFT.ASM.FRONT.TORQUE This part replaces 532187089. Price: $37.99 |
| 50 |
532183688 |
BELT.DRIVE.EZ.WALK.HI-VAC Price: $13.99 |
| 51 |
532414860 |
KIT.PINION.ASM This part replaces 532188331. Price: $76.99 |
| 52 |
532175102 |
RETAINER, DRIVE, RH Price: $5.99 |
| 53 |
532183698 |
REAR AXLE ASSY. This part replaces 532187091. Price: $22.99 |
| 54 |
532414860 |
KIT.PINION.ASM This part replaces 532188330. Price: $76.99 |
| 55 |
532189074 |
DECAL.DRIVE.CONTROL.HV Price: $5.99 |
| 56 |
532185913 |
DECAL Price: $5.99 |
