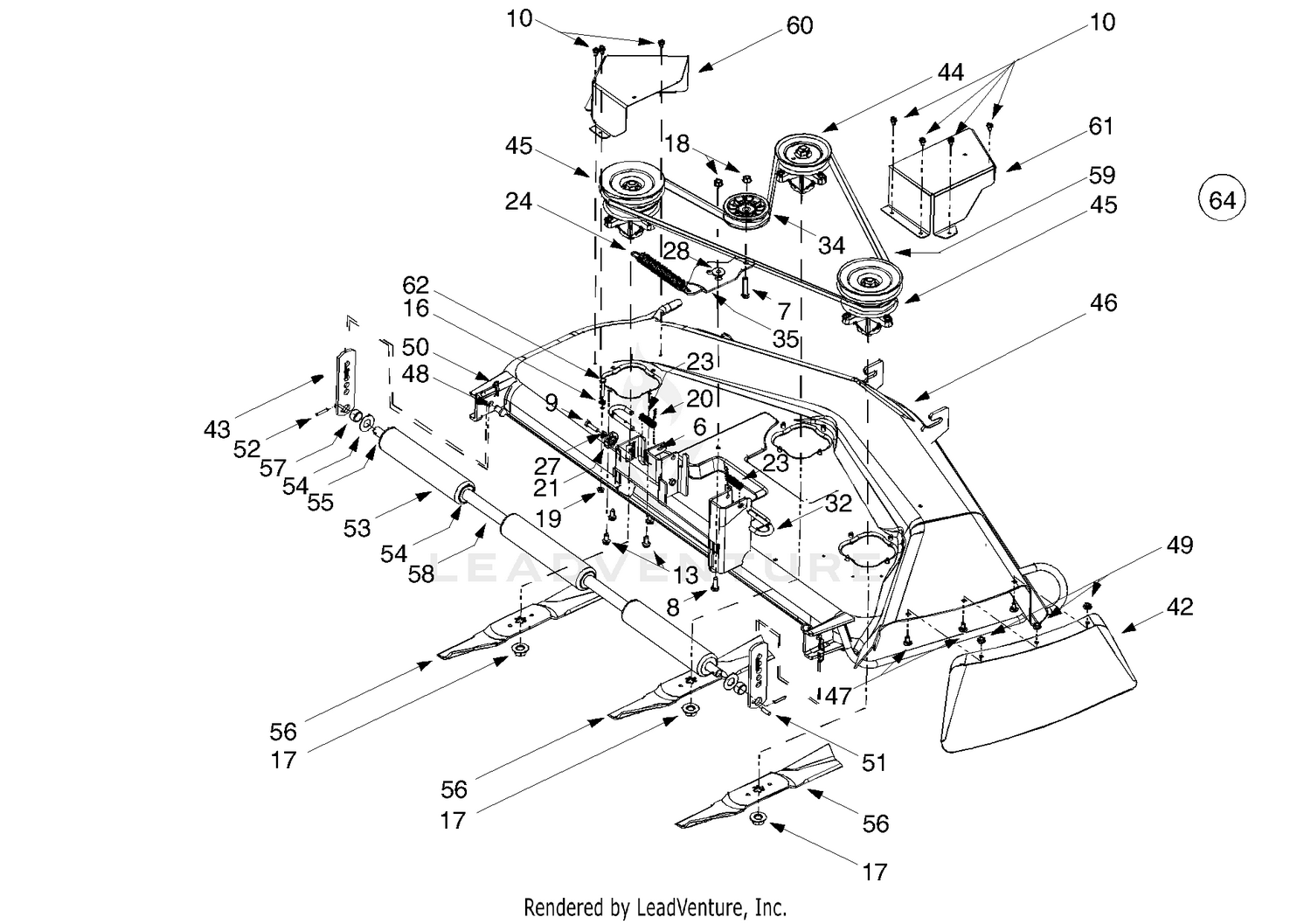

| Ref | Part Number | Description |
|---|
| 6 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 7 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 8 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 9 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 10 |
710-0599 |
Self Tapping Screw,1/4-20 x .5 Price: $3.86 |
| 13 |
710-1260A |
Self Tapping Screw, 5/16-18 x .75 Price: $3.34 |
| 16 |
712-0291 |
Center Lock Nut, 1/4-20 Price: $3.93 |
| 17 |
712-0417A |
HEX NUT Price: $6.50 |
| 18 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 19 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 20 |
714-0104 |
Internal Cotter Pin, .072 x 1.12 Price: $3.90 |
| 21 |
917-04074 |
Gear, Deck Adjustment This part replaces 717-1553A. Price: $11.45 |
| 23 |
932-0306A |
Compression Spring This part replaces 732-0306. Price: $7.69 |
| 24 |
932-0594A |
Extension Spring 6.17" Lg. This part replaces 732-0594A. Price: $13.74 |
| 27 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 28 |
938-0347 |
Shld. Spacer .625" I.D. This part replaces 738-0347. Price: $8.93 |
| 32 |
747-1116 |
Deck Release Pin Price: $11.17 |
| 34 |
756-0627D |
Fl-Idler Pulley 3.5" O.D. This part replaces 7560627. Price: $28.58 |
| 35 |
783-0139B-0637 |
IDLER BRACKET Not Available This part replaces 783-0139. Price: |
| 42 |
12649-0637 |
GUARD-CHUTE Not Available This part replaces 12649. Price: |
| 43 |
12650 |
Height Adjustment Bracket Price: $31.14 |
| 44 |
918-0428B |
SPINDLE ASSEMBLY Not Available This part replaces 618-0268. Price: |
| 45 |
918-0429A |
Double Pulley Spindle Assembly This part replaces 618-0269. Price: $216.41 |
| 47 |
710-0260A |
Carriage Bolt 5/16-18 x.62 This part replaces 710-0260. Price: $3.71 |
| 48 |
911-0332 |
Clevis Pin This part replaces 711-0332. Price: $14.98 |
| 49 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 50 |
714-0145 |
Click Pin, .092 x 1.64 Price: $4.42 |
| 51 |
715-0108 |
Spring Pin, 1/4 Dia. x 1 Price: $4.38 |
| 52 |
915-0246 |
Roll Pin 3/16 x 1.25" Not Available This part replaces 715-0246. Price: |
| 53 |
731-0335 |
Deck Roller Price: $63.49 |
| 54 |
736-0316 |
Flat Washer, .78 x 1.59 x .06 Price: $4.02 |
| 55 |
738-0295 |
Deck Roller Shaft, .75 Dia. x 47.12 Price: $109.39 |
| 57 |
750-0212 |
Spacer, .752 x 1.0 x .53 Price: $9.97 |
| 58 |
750-0288 |
SPACER-TUBE Not Available Price: |
| 59 |
954-0291A |
V-Belt 1/2" x88"x 2 (Kevlar) This part replaces 754-0291A. Price: $53.07 |
| 60 |
783-0746 |
BELT COVER (LH) 50" Not Available Price: |
| 61 |
783-0793 |
COVER-PULLEY (RH) Not Available Price: |
| 62 |
710-3288 |
Hex Cap Screw, 1/4-20 x 1.62 Price: $5.94 |
