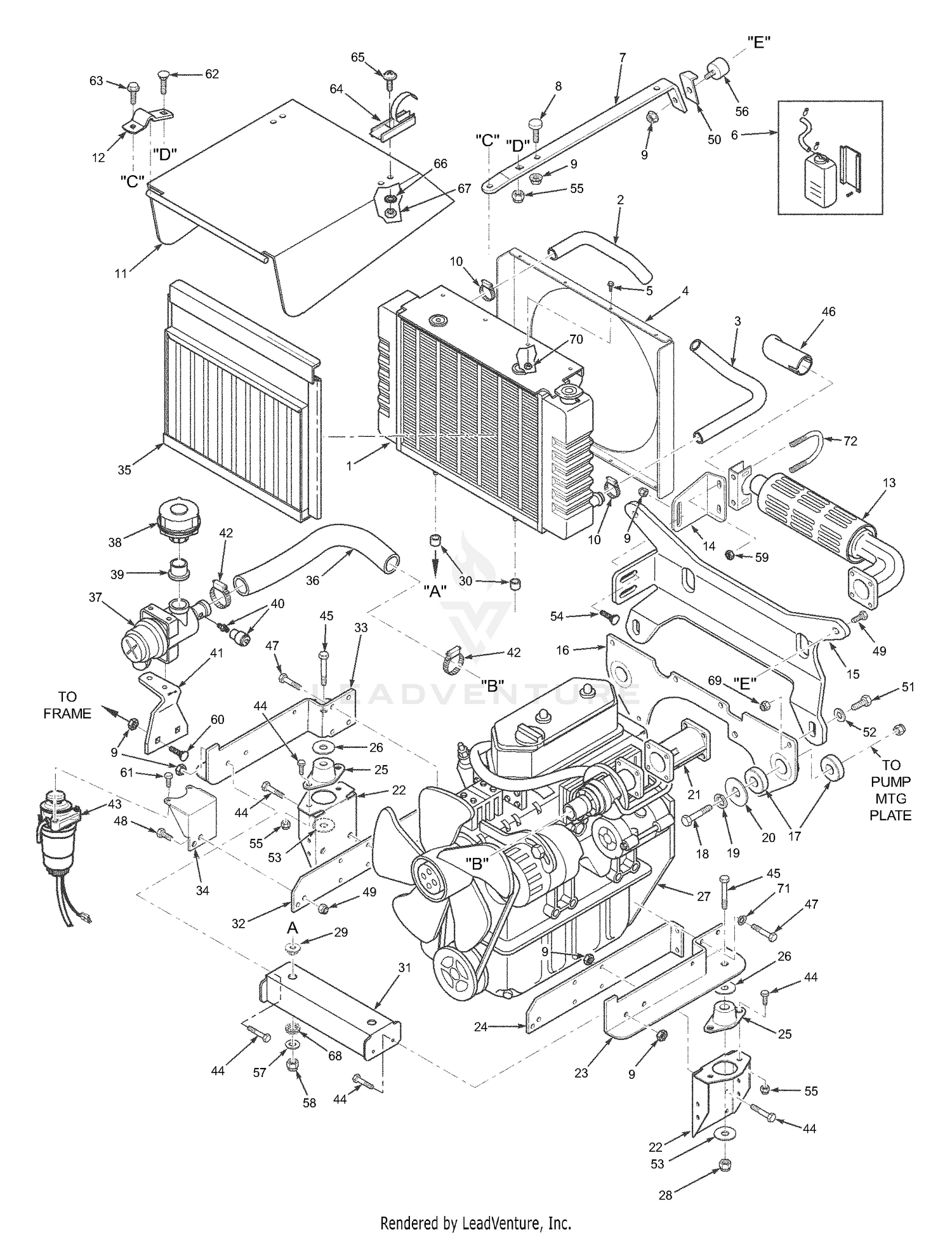

| Ref | Part Number | Description |
|---|
| 1 |
461895 |
Radiator This part replaces 482308. Price: Call Us |
| 2 |
481742 |
Hose, Upper Radiator Price: Call Us |
| 3 |
482366 |
Hose, Lower Radiator Price: Call Us |
| 4 |
423379 |
Shroud, Fan Price: Call Us |
| 5 |
04010-26 |
Screw. #10-32 x 1/2" Price: Call Us |
| 7 |
423639 |
Support Bracket, Hood Price: Call Us |
| 8 |
481284 |
Bumper, Rubber Price: Call Us |
| 9 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 10 |
48136-12 |
Clamp, 1-1/2" Dia. Price: Call Us |
| 11 |
451486 |
Hood Weldment Price: Call Us |
| 12 |
422703 |
Hinge, Hood Price: Call Us |
| 13 |
482404 |
Muffler with Guard Price: Call Us |
| 14 |
423640 |
Brace, Muffler Support Price: Call Us |
| 15 |
423637 |
Mounting Bracket, Hood Price: Call Us |
| 16 |
451487 |
Mounting Bracket Weldment, Rear Engine Mount Price: Call Us |
| 17 |
482363 |
Engine ISO Mount, Rear Price: Call Us |
| 18 |
04001-145 |
Bolt, Hex Head 1/2-13 x 3-1/2" Price: Call Us |
| 19 |
04030-06 |
Lockwasher, 1/2" Spring Price: Call Us |
| 20 |
04041-33 |
Flatwasher, 1/2-.531 x 2.0 x .25 Price: Call Us |
| 21 |
482403 |
Manifold Extension, Exhaust Price: Call Us |
| 22 |
423381 |
Mounting Bracket, Engine Price: Call Us |
| 23 |
451403 |
Mounting Bracket Weldment, Engine L.H. Price: Call Us |
| 24 |
423382 |
Mounting Bracket, Engine L.H. Price: Call Us |
| 25 |
482362 |
Engine ISO Mount, Front Price: Call Us |
| 26 |
04041-33 |
Flatwasher, 1/2-.531 x 2.0 x .25 Price: Call Us |
| 28 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 29 |
482602 |
Bushing, Radiator Isolator Price: Call Us |
| 30 |
43621 |
Bushing, Radiator ISO Mount Price: Call Us |
| 31 |
423638 |
Support Bracket, Radiator Price: Call Us |
| 32 |
423383 |
Mounting Bracket, Engine R.H. Price: Call Us |
| 33 |
451751 |
Mounting Bracket Weldment, Engine R.H. This part replaces 451404. Price: Call Us |
| 34 |
423424 |
Mounting Bracket, Water Seperator Price: Call Us |
| 35 |
451083 |
Debris Screen Price: Call Us |
| 36 |
482368 |
Hose, Air Intake Price: Call Us |
| 37 |
482405 |
Air Cleaner Assembly w/mounting Band Price: Call Us |
| 38 |
481816 |
Pre Cleaner, Engine Air Price: Call Us |
| 39 |
481924 |
Adapter, Pre Cleaner Price: Call Us |
| 40 |
481818 |
Indicator, Air Cleaner Price: Call Us |
| 41 |
423538 |
Bracket, Air Cleaner Price: Call Us |
| 42 |
48136-15 |
Clamp, Hose 2-1/2" Dia. Price: Call Us |
| 44 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 45 |
04001-52 |
Bolt, Hex Head 1/2-13 x 2-1/2" Price: Call Us |
| 46 |
481827 |
Elbow, Exhaust Price: Call Us |
| 47 |
04002-01 |
Bolt, Hex Head M8-1.25 x 3mm Price: Call Us |
| 48 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 49 |
04017-16 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 50 |
423641 |
Catch Bracket, Hood Latch Price: Call Us |
| 51 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 52 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 53 |
04041-32 |
Flatwasher, 1/2-.531 x 2.13 x .1345 Price: Call Us |
| 54 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 55 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 56 |
482603 |
Rubber Isolator Price: Call Us |
| 57 |
04041-35 |
Flatwasher, 7/16-.469 x 2.0 x .1345 Price: Call Us |
| 58 |
04021-21 |
Nut, Center Lock 7/16-14 Price: Call Us |
| 59 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 60 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 62 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 63 |
04017-16 |
Bolt, Hex Head 5/16-18 x 3/4" Serr. Flange Price: Call Us |
| 64 |
481309 |
Latch, Hood Price: Call Us |
| 65 |
04010-21 |
Screw, #10-32 x .375 Price: Call Us |
| 66 |
04031-01 |
Lockwasher, #10 Spring Price: Call Us |
| 67 |
04020-01 |
Nut, #10 Price: Call Us |
| 68 |
482601 |
Ring, Isolator Price: Call Us |
| 69 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 70 |
04021-01 |
Nut, Elastic Stop #10-32 Price: Call Us |
| 71 |
04030-03 |
Lockwasher, 5/16 Spring Price: Call Us |
