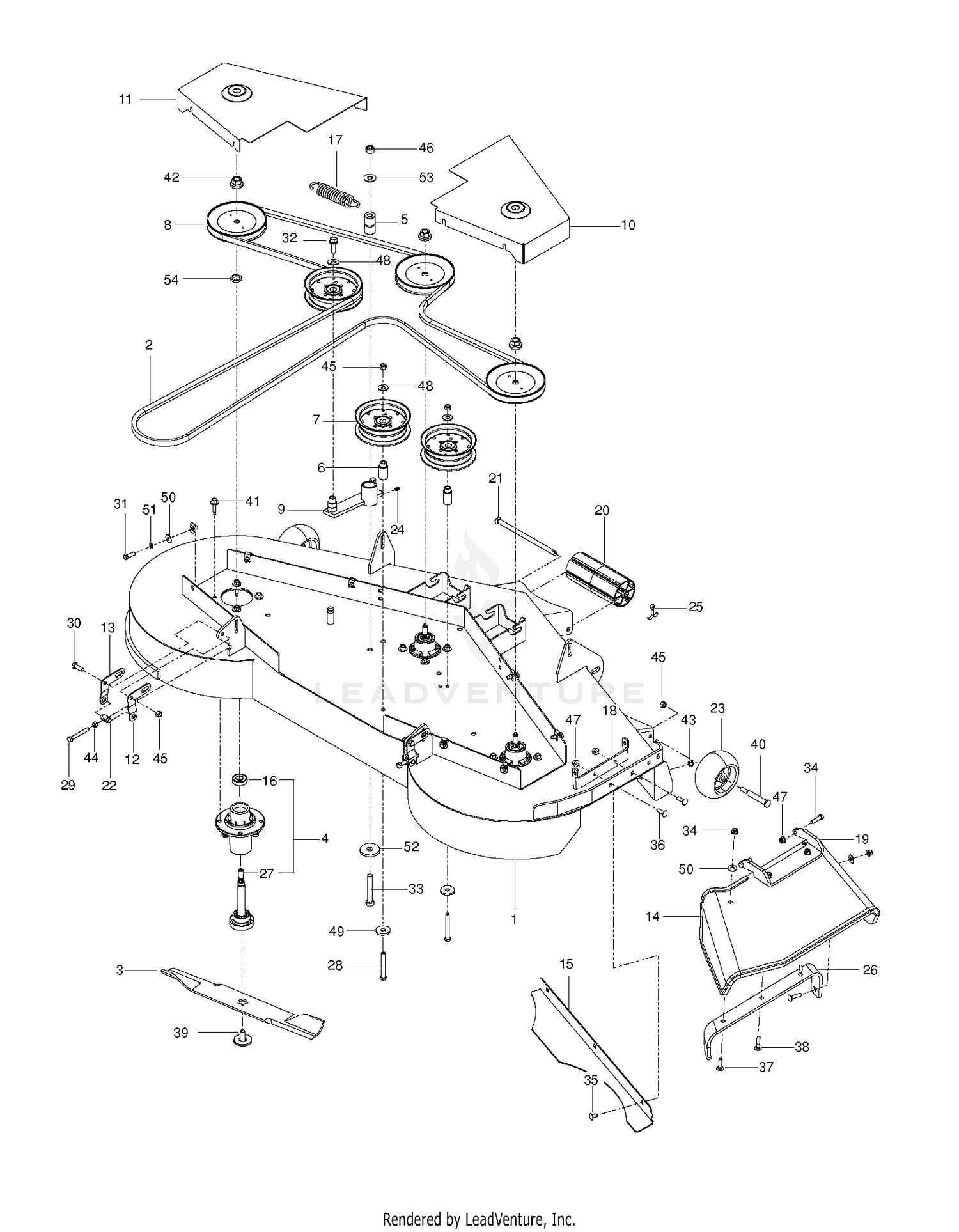

MOWER DECK / CUTTING DECK

MOWER DECK / CUTTING DECK

Parts (111)

RefPart NumberDescription
1 325-20 SCREW-HH Price: $6.29
2 522795901 BELT, DECK This part replaces 539104335. Price: $79.99
3 539113312 BLADE, 21" Price: $24.99
4 539131898 MANDREL ASM, CAST IRON Price: $69.99
5 539103427 PIVOT BUSHING Price: $7.99
6 3272-12 PIN-COTTER Price: $0.25
6 596841501 Bushings This part replaces 539112169. Price: $7.99
7 589766102 Pulleys This part replaces 539132728. Price: $27.99
7 92-7594 HOSE ASM Price: $94.90
8 539113300 PULLEY Price: $19.99
8 92-7595 HOSE-HYD Price: $102.70
9 32136-14 NUT-HST Price: $3.38
9 539112198 IDLER ARM Price: $27.99
10 539113319 BELT SHIELD, RH ORANGE Price: $79.99
10 76-8350 STOP-AXLE Price: $10.92
11 3296-45 NUT-HEX Price: $3.79
12 3256-29 WASHER-FLAT Price: $2.59
13 584859404 BRACKET.LH.PNT.MS431 Price: $3.99
13 94-8000 NUT-HEX Price: $2.65
14 3234-12 SCREW-HHF Price: $0.61
14 539130901 CHUTE, RUBBER DISCHARGE 52/61" Price: $79.99
15 539113317 CONFINEMENT PLATE 61 Price: $34.99
15 69-8890 CAP-SPINDLE Price: $13.32
16 32151-10 RING-RETAINING Price: $0.81
16 532110485 BEARING Price: $11.99
17 539103256 SPRING Price: $9.99
17 62-2170 WASHER-THRUST Price: $4.48
18 69-6470 BUSHING-CASTOR Price: $5.82
19 302-11 FITTING-LUBE, 45 DEG Price: $1.56
19 539130917 PIVOT BRACKET - CHUTE Price: $129.99
20 532176066 NOSE ROLLER 48" Price: $11.99
20 94-5607 AXLE ASM Price: $1,648.44
21 594092501 Rods This part replaces 532179127. Price: $5.99
21 92-9725-03 LH SPINDLE ASM This part replaces 92-9725. Price: $553.13
22 596565501 Nuts This part replaces 539131859. Price: $9.99
22 69-2980 SEAL Price: $33.94
23 254-106 CONE-BEARING, TAPERED Price: $19.51
23 532133957 WHEEL GAGE DONUT Price: $11.99
24 254-107 CUP-BEARING, TAPERED Price: $9.93
24 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
25 114-3908 HUB ASM This part replaces 92-9650. Price: $129.48
25 596029501 Pins This part replaces 539990365. Price: $2.99
26 254-72 BEARING-CUP, TAPERED Price: $9.67
26 592964402 BRACKET.REINF.CHUTE.52/61.EDIP This part replaces 539130920. Price: $22.99
27 254-92 CONE-BEARING, OUTER Price: $15.84
27 597023501 MANDRELS This part replaces 532187291. Price: $24.99
28 596564405 Bolts This part replaces 874780648. Price: $2.99
28 86-5910 TIRE-6 PLY Price: $114.98
29 120-8909 RIM This part replaces 217-125. Price: $198.53
29 596437101 Screws This part replaces 539108396. Price: $2.99
30 5108 VALVE This part replaces 232-27. Price: $6.29
30 596564401 Bolts This part replaces 539990563. Price: $3.99
31 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99
31 93-0309 WASHER-TAB Price: $3.52
32 596583101 Screws This part replaces 539990582. Price: $3.99
32 93-0307 NUT-LOCK, RETAINER Price: $3.36
33 539103433 HCS 1/2C X 3 1/4 Price: $5.99
33 69-2970 CAP-HUB Price: $20.74
34 3272-13 PIN-COTTER Price: $0.25
34 595305701 Screws This part replaces 874780520. Price: $3.99
35 139-2564 NUT-LUG This part replaces 242-50. Price: $0.99
35 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99
36 596435701 Bolts This part replaces 872110508. Price: $2.99
36 92-9652 STUD-BOLT Price: $4.89
37 3220-7 NUT-JAM Price: $4.09
37 596671401 Bolts This part replaces 539100472. Price: $3.99
38 596030801 Bolts This part replaces 539102933. Price: $3.99
38 92-5839 JOINT-BALL Price: $207.89
39 532193003 BOLT.WASHER.ASM.7/16-2 Price: $6.99
39 94-8142 HYD CYLINDER ASM Price: $802.19
40 32151-104 RING-RETAINING, EXTERNAL Price: $4.85
40 596434404 Bolts This part replaces 532137644. Price: $4.99
41 302-5 FITTING-GREASE Price: $0.59
41 584953901 BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99
42 237-78 O-RING Price: $3.85
42 596134801 Nuts This part replaces 532400234. Price: $1.00
43 340-97 FITTING-ELBOW, 90 DEG Price: $36.21
43 596583702 Nuts This part replaces 539990717. Price: $2.99
44 237-22 O-RING Price: $2.43
44 596582601 Nuts This part replaces 539990196. Price: $2.99
45 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
45 92-5833 SPACER-JOINT, BALL Price: $20.71
46 3210-5 SCREW-HH Price: $0.54
46 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
47 105-7815 TIE ROD ASM This part replaces 74-5940. Price: $573.88
47 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
48 2411-46-03 LH TIE ROD ASM This part replaces 2411-46. Price: $128.10
48 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
48 71-4740-03 RH TIE ROD END ASM This part replaces 2411-45. Price: $163.79
49 32152-5 NUT-HEX Price: $0.54
49 596770301 Washers This part replaces 539106504. Price: $4.99
50 105-7815 TIE ROD ASM This part replaces 2412-122. Price: $573.88
50 596134901 GSPH This part replaces 539990692. Price: $2.99
51 596565001 Washers This part replaces 539109600. Price: $2.99
51 94-5603 BUSHING-METRIC Price: $110.04
52 302-33 FITTING-GREASE Price: $2.31
52 596437501 Washers This part replaces 539102243. Price: $8.99
53 595316401 Washers This part replaces 539990550. Price: $2.99
53 94-8115 DISCONTINUED Price: Call Us
54 92-7604 DISCONTINUED Price: Call Us
55 93-7247 WASHER-THRUST Price: $3.46
56 92-7495 STEERING TUBE ASM Price: $148.27
57 340-70 NUT-LOCK Price: $2.10
58 237-22 O-RING Price: $2.43
59 92-7494 REAR STEARING TUBE ASM Price: $150.03
60 106-6898 JOINT-BALL This part replaces 92-5837. Price: $210.81
61 3220-11 NUT-JAM Price: $0.81
62 94-2807 ADAPTOR-NUT, WHEEL Price: $17.80
63 100-3895-03 WEIGHT-WHEEL This part replaces 94-3052. Price: $841.13
64 3256-26 WASHER-FLAT Price: $0.39
65 3213-14 SCREW-HH Price: $8.01
