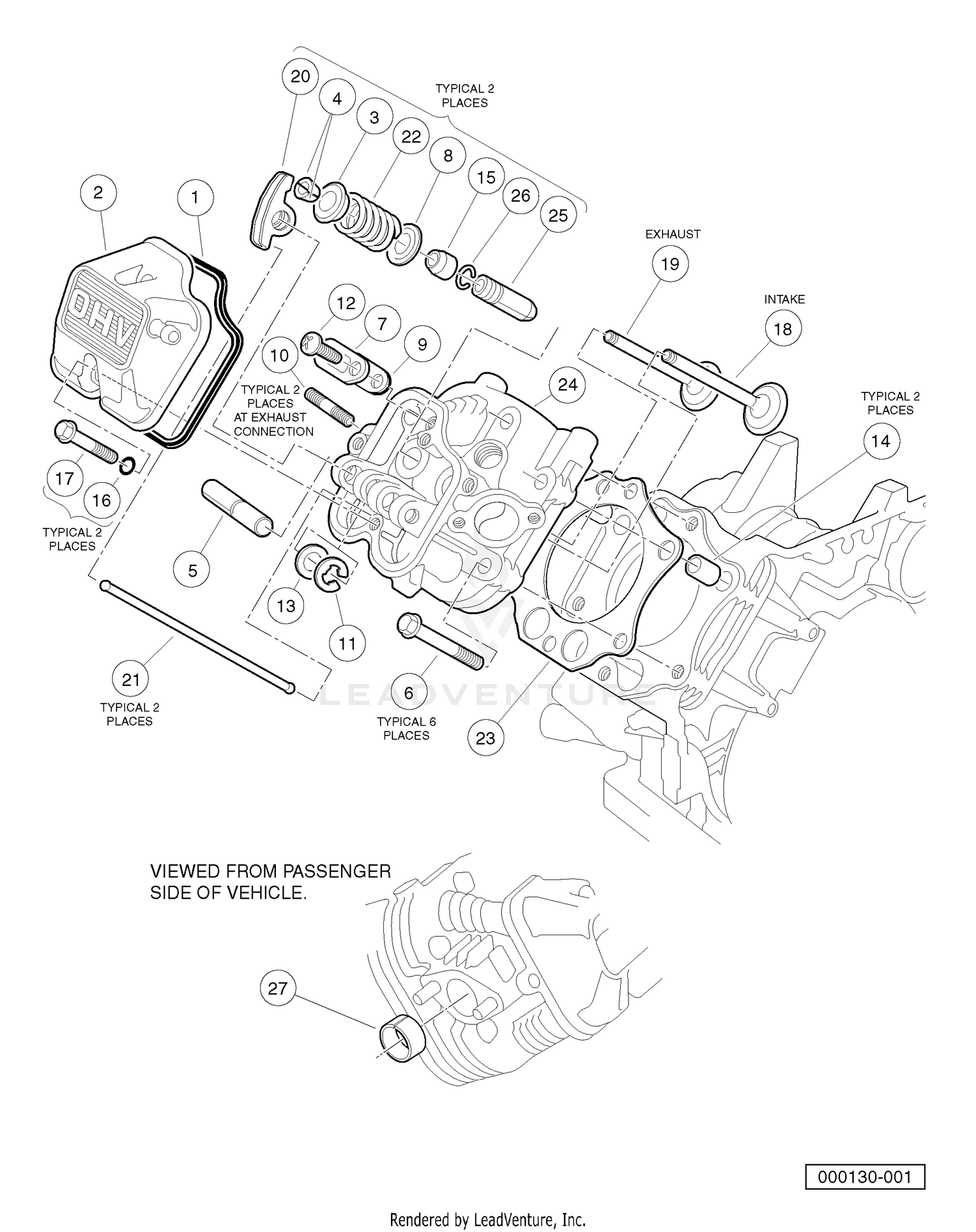

FE400 ENGINE (KEY-START) - CYLINDER HEAD
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 603000296 | GASKET, ROCKER CASE Price: $22.99 |
| 3 | 603000304 | RETAINER - VALVE SPRING Price: $5.99 |
| 4 | 603000305 | COLLET Price: $2.99 |
| 5 | 603000306 | SHAFT - ROCKER Price: $7.99 |
| 6 | 603000311 | BOLT, FLANGED Price: $2.99 |
| 7 | 603000315 | PLATE Price: $2.99 |
| 8 | 603000316 | SEAT, SPRING Price: $1.99 |
| 9 | 603000318 | VALVE Price: $1.99 |
| 10 | 603000320 | STUD, M8-1.25 2-ENDED Price: $2.99 |
| 11 | 603000330 | CIRCLIP - TYPE - E Price: $1.99 |
| 12 | 603000339 | SCREW Price: $1.99 |
| 13 | 603000342 | WASHER, 12.1X19X1.8 Price: $2.99 |
| 14 | 603000346 | PIN Price: $1.99 |
| 15 | 603000348 | SEAL, OIL Price: $17.99 |
| 16 | 603000349 | O-RING Price: $2.99 |
| 17 | 603000359 | BOLT, 6X35 Price: $2.99 |
| 18 | 603000398 | VALVE - INTAKE Price: $54.99 |
| 19 | 603000399 | VALVE - EXHAUST Price: $64.99 |
| 20 | 603000400 | ARM - ROCKER Price: $14.99 |
| 21 | 603000404 | ROD - PUSH Price: $17.99 |
| 22 | 603000413 | SPRING - ENGINE VALVE Price: $9.99 |
| 23 | 603000846 | FE400 HEAD GASKET Price: $89.99 |
| 24 | 603000847 | FE400 CYLINDER HEAD Price: $159.99 |
| 26 | 603000343 | SNAP RING Price: $1.99 |
| 27 | 603000853 | SLEEVE EXHAUST FE400 SPLIT Price: $6.99 |
| 28 | 603000879 | GASKET KIT, FE400 Price: $129.99 |
