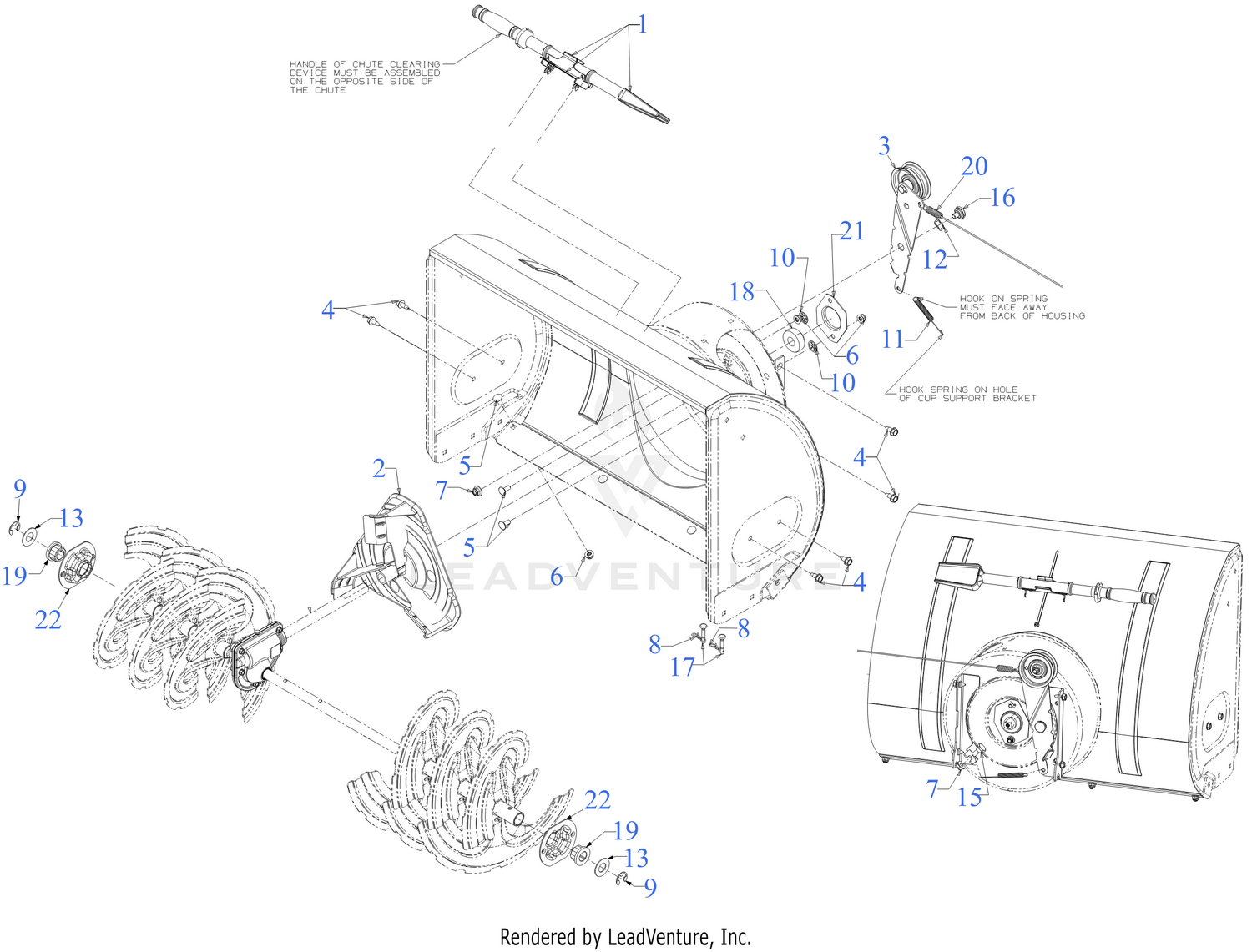

| Ref | Part Number | Description |
|---|
| 1 |
731-11421 |
CLEANOUT TOOL MOUNTING CLIP Price: $9.83 |
| 1 |
931-2643 |
CLEANOUT TOOL Price: $16.68 |
| 3 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 3 |
712-04065 |
NUT Price: $3.68 |
| 3 |
756-04224 |
FLAT IDLER PULLEY 2.75 OD Price: $24.80 |
| 3 |
790-00080D |
AUGER IDLER BRACKET Price: $25.44 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 6 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 7 |
712-04065 |
NUT Price: $3.68 |
| 8 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 9 |
716-0231 |
E-RING Price: $3.50 |
| 10 |
726-04012 |
PUSH ON NUT Price: $6.20 |
| 11 |
732-04460 |
EXTENSION SPRING .38 OD x 4.59 Price: $4.69 |
| 12 |
736-0174 |
WAVE WASHER .660 ID X.88 OD x .010 Price: $5.94 |
| 13 |
736-0445 |
FLAT WASHER Price: $3.95 |
| 15 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 16 |
738-0281 |
SHOULDER SCREW .625 Price: $9.16 |
| 17 |
490-241-C063 |
Cub Cadet SHEAR PINS (2X SNOW) Price: $9.53 |
| 17 |
490-241-Y055 |
Troy-Bilt SHEAR PIN 6PK (04124A) Price: $9.53 |
| 17 |
738-04124A |
SHEAR PIN .25 x 1.50 GR2 Price: $1.56 |
| 18 |
941-0309 |
BEARING W/OUT COLLAR Price: $69.59 |
| 19 |
741-05041 |
FLANGE BEARING Price: $8.37 |
| 20 |
946-04230B |
AUGER DRIVE CABLE 47.48" Price: $21.53 |
| 21 |
790-00075B |
BEARING HOUSING 1.85 ID Price: $5.66 |
