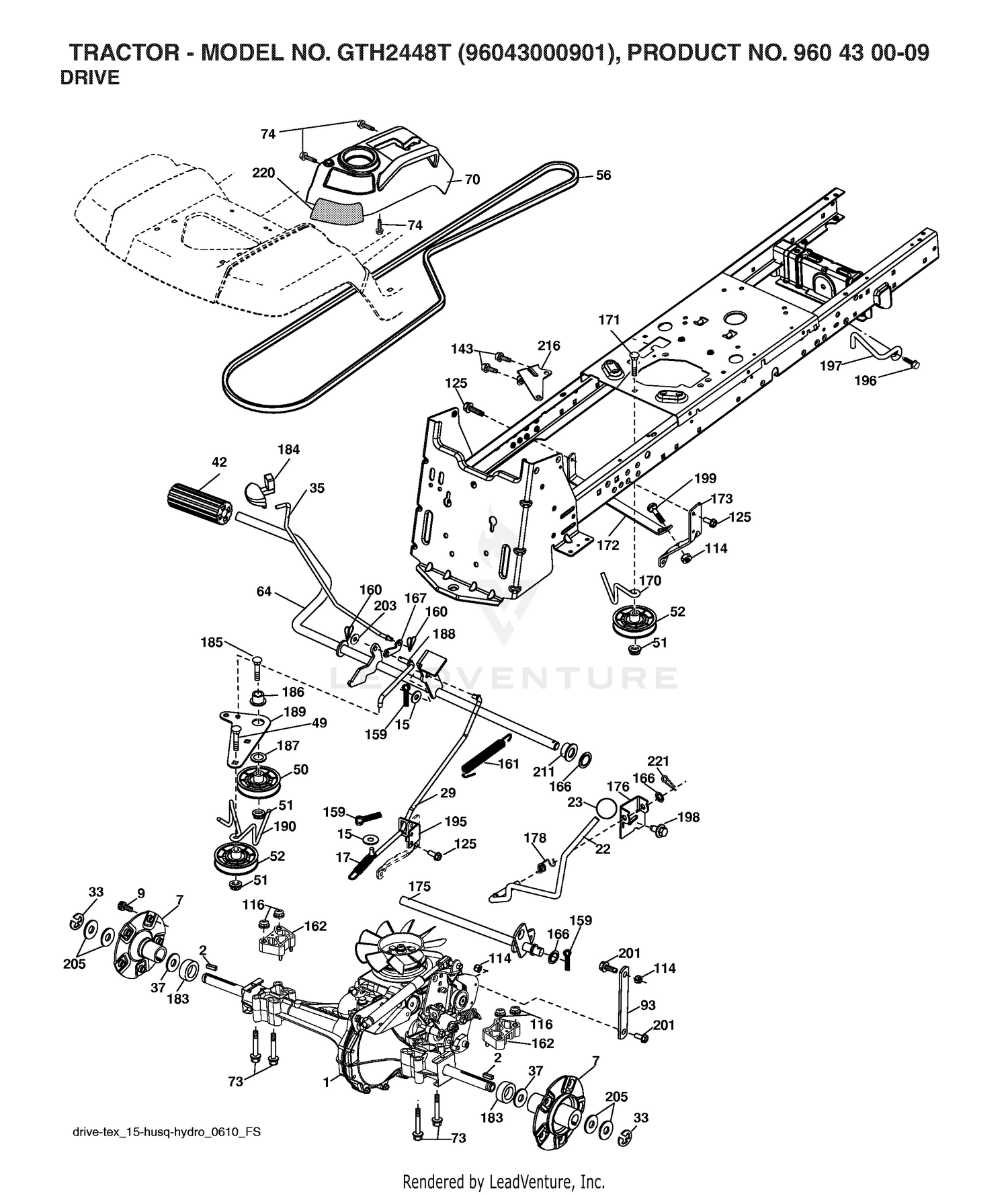

| Ref | Part Number | Description |
|---|
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
100-7631 |
PULLEY-IDLER Price: $146.29 |
| 2 |
532186211 |
KEY.SQUARE.187X2.500 Price: $3.99 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
108-1438 |
WASHER-HARDENED Price: $1.76 |
| 5 |
99-7667 |
WASHER-FLAT Price: $4.80 |
| 6 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 7 |
112-4874 |
SCREW-HH, TAP Price: $8.70 |
| 7 |
531170101 |
SERVICE.KIT HUB ASM HUB.ASM.WH This part replaces 532199844. Price: $49.99 |
| 8 |
117-8461-03 |
ARM-TRAILING Price: $265.67 |
| 9 |
117-8465-03 |
LINK-LIFT Price: $29.79 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
119-6301-03 |
ARM-GAUGE, WHEEL Price: $153.51 |
| 11 |
117-8469-03 |
BRACKET-PULLEY Price: $20.10 |
| 12 |
117-8484 |
TAB-LOCKING Price: $36.51 |
| 13 |
117-8544 |
WHEEL-CASTER Price: $120.71 |
| 14 |
119-2985 |
BUSHING Price: $7.60 |
| 15 |
119-2992-03 |
BRACKET-ADJUST,TENSION Price: $42.10 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
119-6184 |
BLOCK-PIVOT Price: $36.42 |
| 17 |
121-2772-03 |
SUPPORT-COVER, BELT Price: $43.49 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
119-6189 |
TUBE-PIVOT Price: $5.65 |
| 19 |
119-6191 |
TUBE-PIVOT Price: $4.68 |
| 20 |
119-6192 |
TUBE-PIVOT Price: $6.50 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 22 |
323-6 |
SCREW-HH Price: $0.66 |
| 22 |
532197329 |
ROD.SHIFT.FENDER.STGT. Price: $74.99 |
| 23 |
3234-40 |
SCREW-HF Price: $3.38 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 24 |
325-14 |
SCREW-HH Price: $2.64 |
| 25 |
325-9 |
SCREW-HH Price: $1.87 |
| 26 |
325-10 |
SCREW-HH Price: $1.82 |
| 27 |
328-2 |
SCREW-HH Price: $6.51 |
| 28 |
3217-11 |
NUT-HEX Price: $0.95 |
| 29 |
119-6253 |
SPACER-LIMITER Price: $9.65 |
| 29 |
532199467 |
ROD.BRAKE.0610.PEDAL.CONTROL Price: $37.99 |
| 30 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 33 |
812000060 |
Ring E Price: $1.48 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532140218 |
V-BELT. Price: $49.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 70 |
532439660 |
SUBASM.CONSOLE.HUSQ.GT.HYDRO This part replaces 532400298. Price: $79.99 |
| 73 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT This part replaces 532195403. Price: $9.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532196211. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 172 |
532197656 |
STRAP.TRQ.LH.FS.HG0510 Price: $4.99 |
| 173 |
532197424 |
STRAP.TORQUE.FS.0610.RH Price: $5.99 |
| 175 |
532197653 |
SHAFT.ASM.SHFT.HG0510/ Price: $17.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $6.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $4.99 |
| 183 |
532400424 |
SPACER.SPLIT.800X.350 Price: $4.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 195 |
532198012 |
BRKT.ROD.BRAKE.18/20/2 Price: $3.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 198 |
532199496 |
SCREW.7/16-14X7/8.FLAN Price: $5.99 |
| 199 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 201 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
