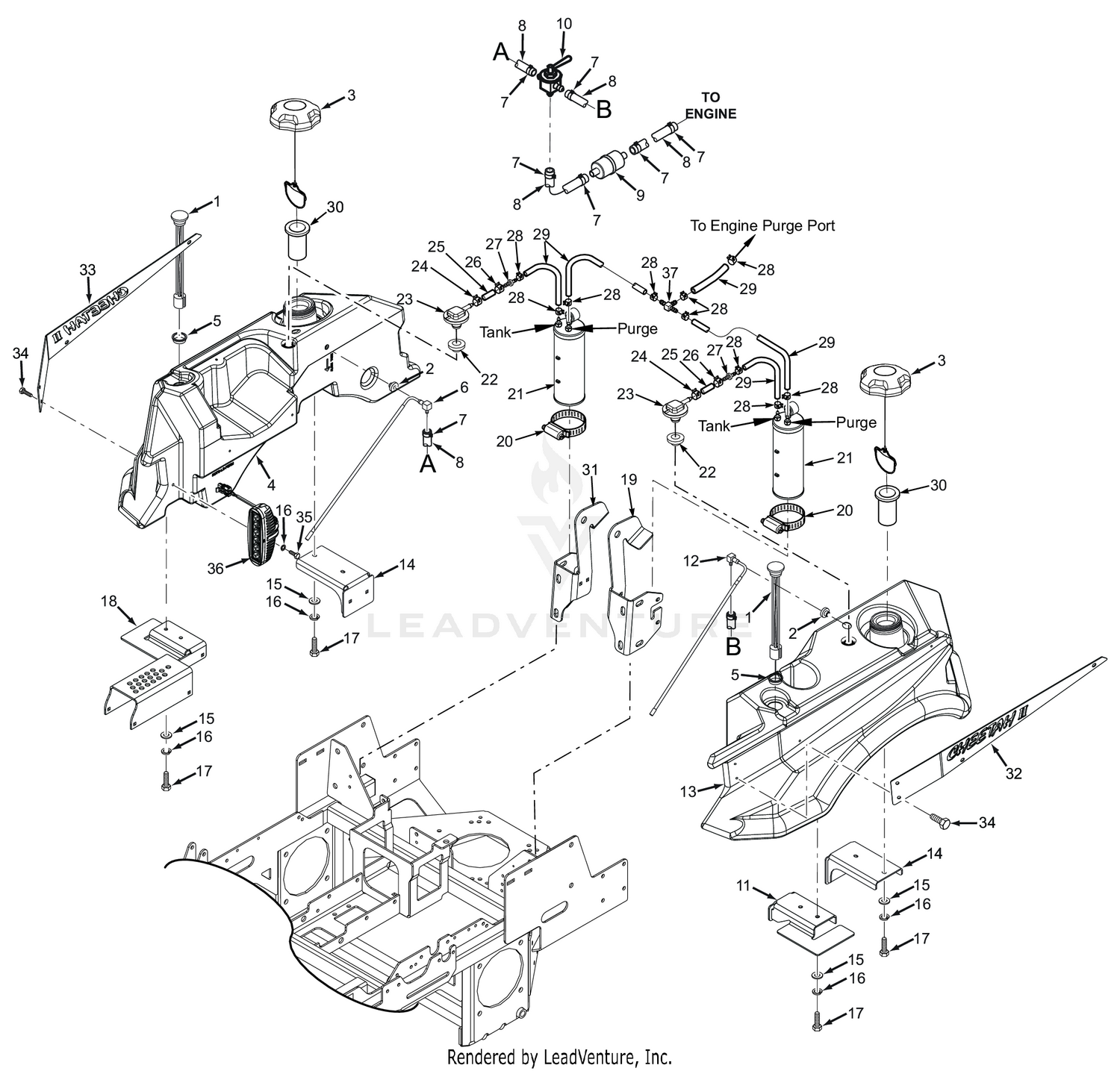

| Ref | Part Number | Description |
|---|
| 1 |
484243 |
Fuel Gauge Assembly Price: Call Us |
| 2 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 3 |
484286 |
Fuel Cap w/ Tether (E.P.A.) Price: Call Us |
| 4 |
463273 |
Fuel Tank Assembly, RH Price: Call Us |
| 5 |
484242 |
Grommet, Fuel Gauge Price: Call Us |
| 6 |
484553 |
Fuel Tube Assembly Price: Call Us |
| 7 |
48059-01 |
Clamp, Fuel Hose 1/4" Hose I.D. Price: Call Us |
| 8 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) Price: Call Us |
| 10 |
482212 |
Valve, Fuel Shut-Off Price: Call Us |
| 11 |
428233 |
Mounting Bracket, Fuel Tank Front Price: Call Us |
| 12 |
484552 |
Fuel Tube Assembly, LH Price: Call Us |
| 13 |
463272 |
Fuel Tank Assembly, LH Price: Call Us |
| 14 |
428261 |
Mounting Bracket, Fuel Tank Rear Price: Call Us |
| 15 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 16 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 17 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 18 |
463235-G |
Adjustment Bracket, Upper Cut Height (Scag Gold) Price: Call Us |
| 19 |
427177 |
ROPS Mount, LH, 29CV-EFI Price: Call Us |
| 20 |
48136-17 |
Clamp, 3-1/2" Max. Dia. Price: Call Us |
| 21 |
484342 |
Carbon Canister - SVR-52V / SVR-61V Price: Call Us |
| 22 |
484285 |
Grommet, Viton, Price: Call Us |
| 23 |
484333 |
Remote Vent, No Valve Price: Call Us |
| 24 |
48059-02 |
CLAMP, FUEL HOSE(KAWASAKI ONLY) Price: Call Us |
| 25 |
484347 |
Hose, 1/4" Vapor Recovery (order by inch) Price: Call Us |
| 26 |
48059-02 |
CLAMP, FUEL HOSE(KAWASAKI ONLY) Price: Call Us |
| 27 |
484343-01 |
Mender, 1/4 x 3/16 w/0.02 Hole Price: Call Us |
| 28 |
48059-05 |
Clamp, Vapor Recovery Hose 3/16" Price: Call Us |
| 29 |
484345 |
Hose, Vapor Recovery 3/16" Price: Call Us |
| 30 |
484279-01 |
Tube, Fuel Tank Insert - 4" Price: Call Us |
| 31 |
427178 |
ROPS Mount, RH, 29CV-EFI Price: Call Us |
| 32 |
428229 |
Plate, LH Fuel Tank Price: Call Us |
| 33 |
428195 |
Plate, RH Fuel Tank Price: Call Us |
| 34 |
04017-04 |
CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 35 |
04015-11 |
SOC HD CAPSCR, 5/16-18 X .75 Price: Call Us |
| 36 |
486672 |
Light Assembly Price: Call Us |
| 484297 |
Fuel |
Cap w/Tethered - California Models Only Price: Call Us 484297 |
| 484366 |
Dust |
Filter, Carbon Canister Price: Call Us 484366 |
| 488244 |
Dust |
Filter, Carbon Canister - Anfan Price: Call Us 488244 |
