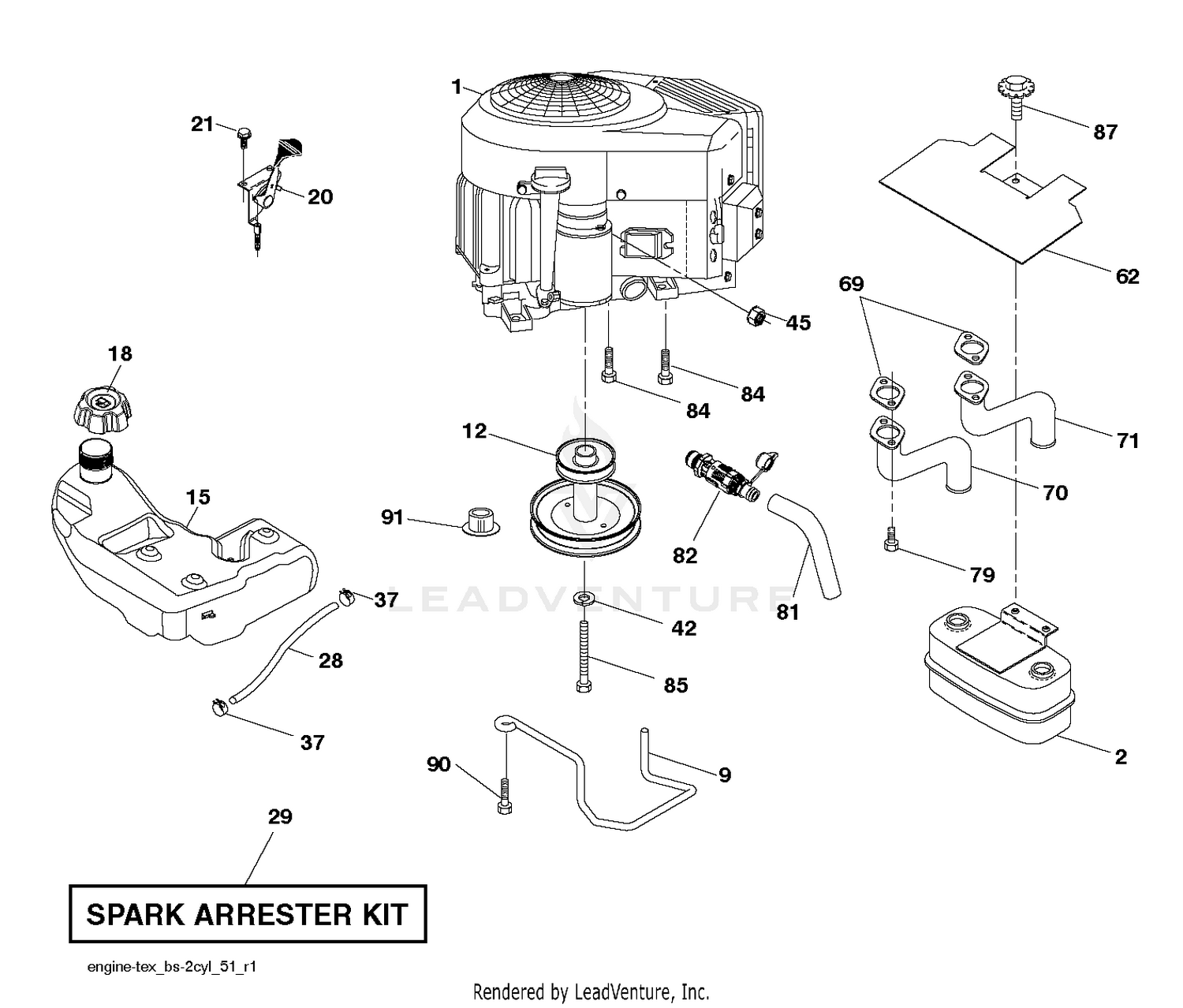

| Ref | Part Number | Description |
|---|
| 1 |
112-1403 |
ADAPTER ASM Price: $437.59 |
| 2 |
130-7823 |
ARM-LIFT This part replaces 112-1408. Price: $286.60 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $49.99 |
| 3 |
110-3362 |
BAR-PIVOT Price: $71.83 |
| 4 |
112-7695-03 |
HANDLE Price: $53.91 |
| 5 |
112-7686 |
LATCH Price: $40.54 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 9 |
323-7 |
SCREW-HH Price: $0.65 |
| 9 |
584908001 |
KEEPER BELT ENGINE This part replaces 532194320. Price: $2.99 |
| 10 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 12 |
532405471 |
PULLY ENGINE Price: $64.99 |
| 13 |
112-0038 |
SPACER Price: $7.34 |
| 14 |
99-7984 |
KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 15 |
532438080 |
TANK.ASSY.3.GAL.EPA Price: $169.99 |
| 15 |
75-5270 |
SPACER-KNOB, SEAT This part replaces 99-2058. Price: $4.61 |
| 16 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 17 |
144-7093 |
LINK ASM This part replaces 110-8105. Price: $105.96 |
| 18 |
532430214 |
CAP ASM.FL.RTCHT.3"GRY.E10 Price: $24.99 |
| 18 |
92-2651 |
WASHER Price: $1.83 |
| 19 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 20 |
323-10 |
SCREW-HH Price: $0.89 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN. Price: $19.99 |
| 21 |
132-4389 |
HANGER This part replaces 108-2941-03. Price: $129.61 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 23 |
84-2350 |
SPACER-LONG Price: $10.04 |
| 24 |
323-14 |
SCREW-HH Price: $1.34 |
| 25 |
323-15 |
SCREW-HH Price: $1.53 |
| 28 |
532401135 |
LINE.FUEL.64"REAR.EMIS Price: $19.99 |
| 29 |
323-12 |
SCREW-HH Price: $1.14 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 30 |
323-47 |
SCREW-HH Price: $1.22 |
| 31 |
121-1760 |
SPACER Price: $1.45 |
| 34 |
114-4320 |
ROD-HANDLE Price: $9.07 |
| 37 |
110-1364 |
CHAIN-PROOF, 12 LINK Price: $8.22 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
115-2090 |
PAD-WEAR Price: $43.56 |
| 40 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 41 |
47-2910 |
WASHER-THRUST Price: $12.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 42 |
66-9300 |
SCREW-HHF Price: $4.69 |
| 43 |
92-2739 |
PIN-CLEVIS Price: $8.48 |
| 44 |
100-5024 |
PIN-CLEVIS Price: $7.44 |
| 45 |
119-8969 |
NUT-HEX Price: $1.29 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 46 |
120-3499-03 |
BRACKET-STOP This part replaces 120-3499. Price: $23.48 |
| 47 |
121-9062-03 |
TUBE-TONGUE This part replaces 121-9062. Price: $85.05 |
| 48 |
121-9065-03 |
HITCH ASM This part replaces 121-9065. Price: $39.94 |
| 49 |
325-22 |
SCREW-HH Price: $4.26 |
| 50 |
325-7 |
SCREW-HH Price: $1.53 |
| 51 |
3218-5 |
NUT-JAM Price: $0.27 |
| 52 |
3233-14 |
SCREW-CARR Price: $1.95 |
| 53 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 62 |
532434017 |
SHIELD.HEAT.MUFFLER Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
532183906 |
SCREW.SOCKET.HEAD.5/16-18 Price: $3.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
