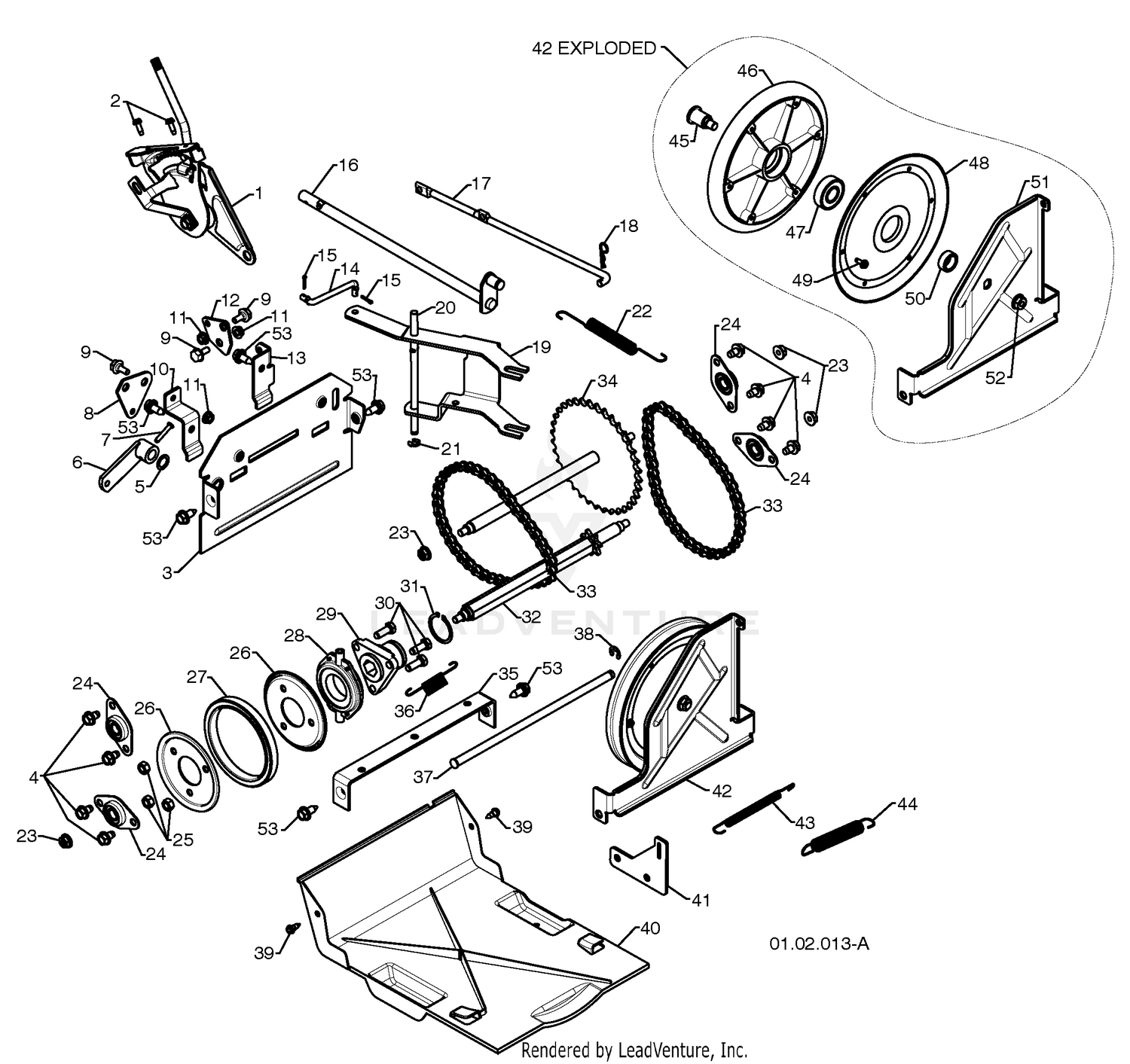

| Ref | Part Number | Description |
|---|
| 1 |
198875 |
SPEED SELECTOR ASSEMBLY Price: Call Us |
| 1 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 2 |
17501010 |
SCREW 10-24 X .625 Price: Call Us |
| 2 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 3 |
402685X428 |
END PLATE Price: Call Us |
| 3 |
99-7311 |
MOUNT-HEADLIGHT Price: $18.97 |
| 4 |
17490508 |
SCREW 5/16-18 X .50 Price: Call Us |
| 4 |
99-7310 |
HEADLIGHT Price: $50.71 |
| 5 |
100-8281 |
HOOD-FRONT, CONSOLE Price: $1,082.22 |
| 5 |
57079 |
WASHER Price: Call Us |
| 6 |
3250-25 |
SCREW-PPH Price: $0.23 |
| 6 |
405485 |
CONTROL ARM Price: Call Us |
| 7 |
100-6777 |
DASH PANEL ASM Price: $207.47 |
| 7 |
198580 |
CLEVIS PIN Price: Call Us |
| 8 |
100-8450 |
NUT-WELL Price: $5.16 |
| 8 |
403097X004 |
SHIFTER PLATE Price: Call Us |
| 9 |
32128-33 |
NUT-HF Price: $0.25 |
| 9 |
402881 |
SHOULDER BOLT Price: Call Us |
| 10 |
403096 |
X004 SHIFTER BRACKET Price: Call Us 403096 X004 |
| 10 |
40764 |
GROMMET Price: $14.37 |
| 11 |
191730 |
NUT 1/4-20 Price: Call Us |
| 11 |
94-7290 |
PLUG-HOLE Price: $0.88 |
| 12 |
100-6735 |
MONITOR MOUNTING BRACKET KIT Price: $83.83 |
| 12 |
402856 |
X004 CLUTCH PLATE Price: Call Us 402856 X004 |
| 13 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 13 |
416717X004 |
CLUTCH BRACKET Price: Call Us |
| 14 |
121-5022 |
SPRAY MONITOR ASM This part replaces 104-8991. Price: $2,658.36 |
| 14 |
187101 |
SHIFTER LINK Price: Call Us |
| 15 |
100-8436 |
SEAL-FOAM Price: $4.73 |
| 15 |
700279 |
RETAINER Price: Call Us |
| 16 |
100-8437 |
SEAL-FOAM Price: $3.47 |
| 16 |
427542 |
CONTROL SHAFT Price: Call Us |
| 17 |
3250-13 |
SCREW-PPH Price: $0.95 |
| 17 |
402568 |
CLUTCH ROD Price: Call Us |
| 18 |
169675 |
RETAINER Price: Call Us |
| 18 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 19 |
356308 |
DISCONTINUED Price: Call Us |
| 19 |
401732 |
SHIFTER YOKE Price: Call Us |
| 20 |
100-8468 |
WASHER-RUBBER Price: $0.88 |
| 20 |
402310 |
PIVOT ROD Price: Call Us |
| 21 |
100-8464 |
SPACER Price: $26.19 |
| 21 |
12000036 |
RETAINER Price: Call Us |
| 22 |
100-6776 |
SEAT BASE ASM Price: $2,125.23 |
| 22 |
402878 |
RETURN SPRING Price: Call Us |
| 23 |
3217-26 |
NUT-HEX Price: $0.25 |
| 23 |
751153 |
NUT 5/16-18 Price: Call Us |
| 24 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 24 |
408981 |
BEARING Price: Call Us |
| 25 |
73930500 |
NUT 5/16-18 Price: Call Us |
| 25 |
94-7074 |
FLARE-FENDER, RH Price: $111.01 |
| 26 |
198176X479 |
RUBBER WHEEL PLATE Price: Call Us |
| 26 |
94-7075 |
FLARE-FENDER, LH Price: $124.14 |
| 27 |
100-8443-03 |
PANEL-SHIELD, RH Price: $85.71 |
| 27 |
179831 |
RUBBER RING Price: Call Us |
| 28 |
100-8623-03 |
BRACKET-SUPPORT, ENGINE COVER Price: $50.60 |
| 28 |
175344 |
BEARING Price: Call Us |
| 29 |
178613 |
WHEEL HUB Price: Call Us |
| 29 |
92-3788 |
INSERT Price: $7.31 |
| 30 |
323-6 |
SCREW-HH Price: $0.66 |
| 30 |
74760514 |
SCREW 5/16-18-.875 Price: Call Us |
| 31 |
12000012 |
RETAINER RING Price: Call Us |
| 31 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 32 |
100-6731-03 |
SHIELD-HEADLIGHT Price: $47.07 |
| 32 |
402187 |
SPROCKET SHAFT Price: Call Us |
| 33 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 33 |
401619 |
CHAIN Price: Call Us |
| 34 |
417234 |
SPROCKET WELDMENT Price: Call Us |
| 34 |
62-5550 |
DECAL Price: $9.32 |
| 35 |
121-5006 |
DECAL-1250 This part replaces 100-8392. Price: $22.97 |
| 35 |
401984X479 |
SHIFTER BRACKET Price: Call Us |
| 36 |
100-8423 |
TRIM-SHIELD, TOP Price: $37.70 |
| 36 |
180135 |
SPRING Price: Call Us |
| 37 |
100-8444 |
TRIM-SHIELD, FRONT AND REAR Price: $20.45 |
| 37 |
402652 |
PLATE PIVOT ROD Price: Call Us |
| 38 |
100-8463 |
SEAL-FOAM Price: $11.75 |
| 38 |
428288 |
E-RING .375 Price: Call Us |
| 39 |
100-8499 |
SEAL-FOAM Price: $15.83 |
| 39 |
184471 |
SHOULDER SCREW Price: Call Us |
| 40 |
3296-21 |
NUT-HEX Price: $0.22 |
| 40 |
410877 |
BOTTOM PAN Price: Call Us |
| 41 |
100-8622 |
TREAD-FLOOR Price: $59.56 |
| 41 |
413429X479 |
SPRING BRACKET Price: Call Us |
| 42 |
100-8448-03 |
PANEL-SHIELD, LH Price: $77.92 |
| 42 |
402689 |
DRIVE PLATE ASSEMBLY Price: Call Us |
| 43 |
106-4872 |
PAD-FOAM, HEADLIGHT Price: $4.84 |
| 43 |
414557 |
IDLER SPRING Price: Call Us |
| 44 |
100-8619 |
DECAL-SWITCH, BOOM Price: $10.09 |
| 44 |
178828 |
IDLER SPRING Price: Call Us |
| 45 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 45 |
402504X008 |
PULLEY SHAFT Price: Call Us |
| 46 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 46 |
401820 |
DRIVE PLATE Price: Call Us |
| 47 |
198791 |
BEARING Price: Call Us |
| 48 |
402393 |
PULLEY HALF Price: Call Us |
| 49 |
17541008 |
SCREW 10-24 X .50 Price: Call Us |
| 50 |
402511 |
SPACER BEARING Price: Call Us |
| 51 |
418894X479 |
SWING PLATE Price: Call Us |
| 52 |
132010 |
NUT 3/8-16 Price: Call Us |
