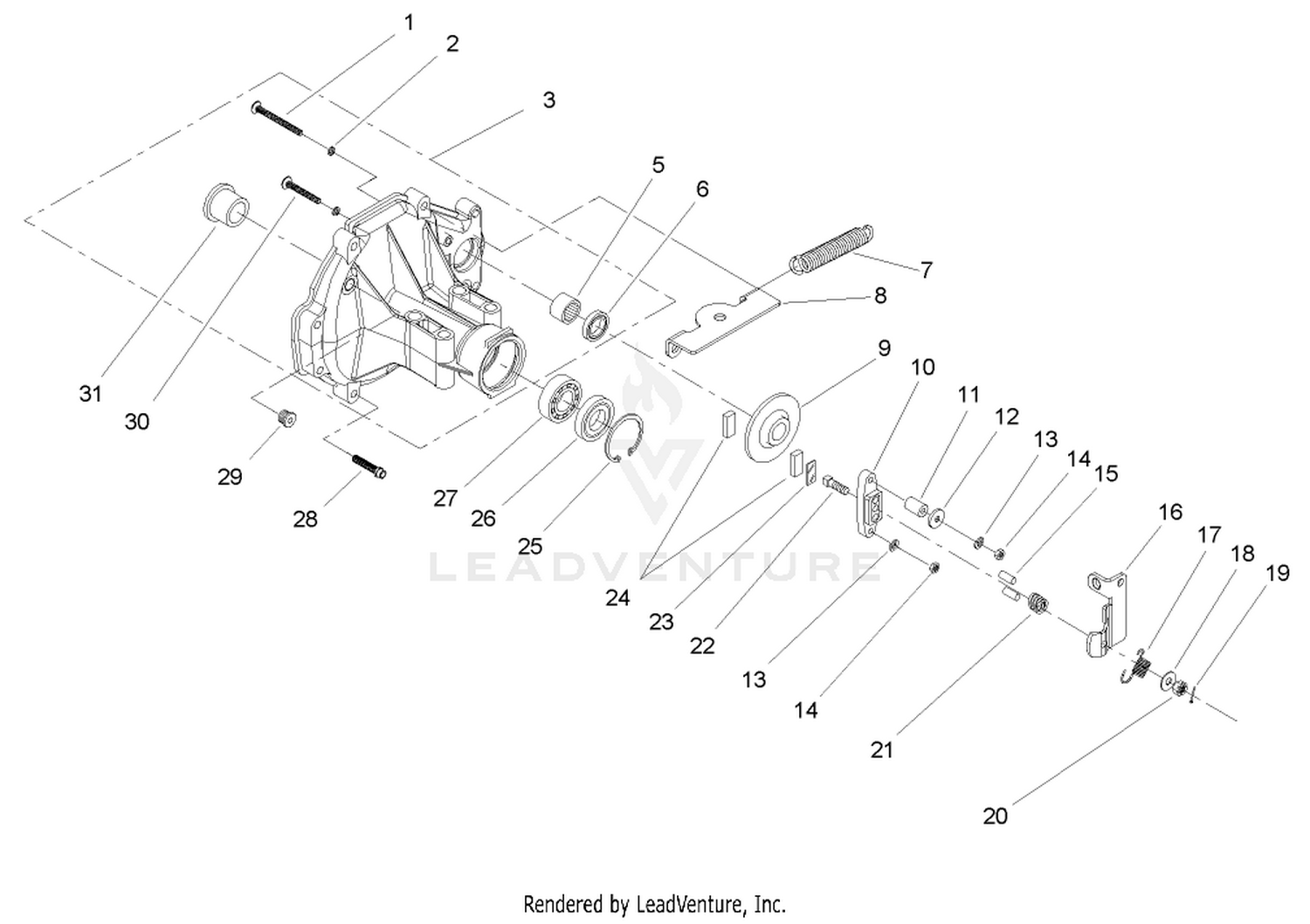

Brake Assembly Transaxle Assembly No. 104-4310
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-2182 | BOLT Price: $14.96 |
| 2 | 104-2191 | O-RING Price: $5.57 |
| 3 | 104-2102 | RH HOUSING ASM Price: $1,029.99 |
| 5 | 104-2149 | BEARING-NEEDLE Price: $58.62 |
| 6 | 104-2152 | SEAL-LIP Price: $23.22 |
| 7 | 104-2118 | SPRING-RETURN Price: $26.99 |
| 8 | 100-1349 | BRACKET-CRANK, BELL Price: $12.52 |
| 9 | 104-2153 | DISK-BRAKE Price: $71.99 |
| 10 | 104-2173 | YOKE-BRAKE Price: $40.38 |
| 11 | 104-2180 | SPACER Price: $7.99 |
| 12 | 104-2183 | WASHER Price: $6.00 |
| 13 | 104-2177 | WASHER-LOCK Price: $3.24 |
| 14 | 104-2178 | NUT Price: $4.19 |
| 15 | 104-2176 | PIN-BRAKE Price: $9.99 |
| 16 | 104-0841 | ARM-BRAKE Price: $89.69 |
| 17 | 104-2184 | SPRING-ARM, BRAKE (BIAS) Price: $15.99 |
| 18 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 19 | 3272-7 | PIN-COTTER Price: $0.25 |
| 20 | 93-3807 | NUT-CASTLE Price: $17.99 |
| 21 | 104-2188 | SPRING-BRAKE, ANTI DRAG Price: $7.19 |
| 22 | 104-2174 | BOLT-SQH Price: $16.68 |
| 23 | 104-2181 | PUCK-PLATE Price: $8.99 |
| 24 | 104-2171 | PUCK-BRAKE Price: $18.99 |
| 25 | 104-2169 | RING-RETAINING Price: $16.99 |
| 26 | 104-2144 | SEAL Price: $50.99 |
| 27 | 104-2143 | BEARING-BALL Price: $39.99 |
| 28 | 104-2148 | SCREW-TTH Price: $11.29 |
| 29 | 104-2189 | PLUG-THREAD, STRAIGHT Price: $24.99 |
| 30 | 104-2172 | BOLT Price: $11.82 |
