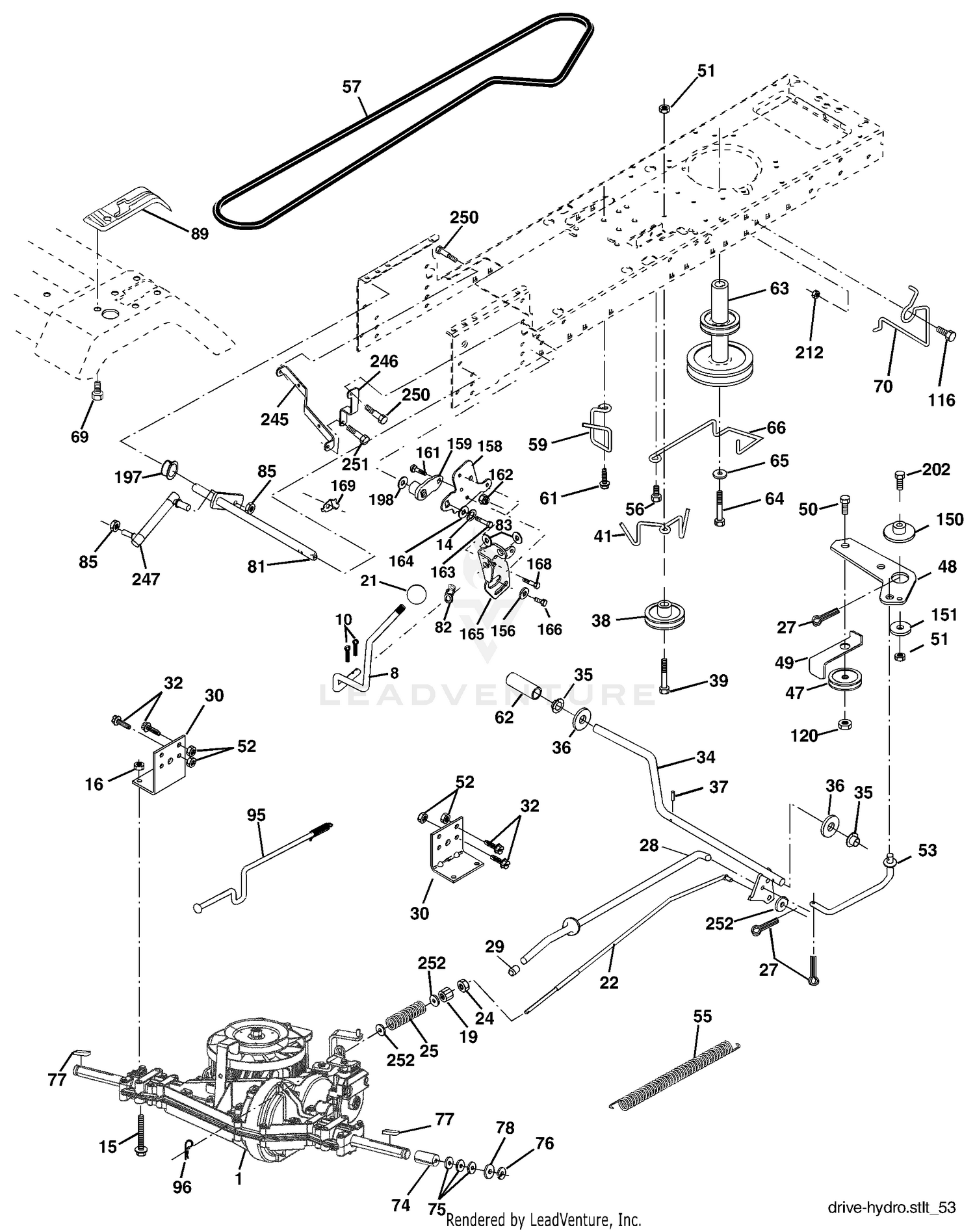

| Ref | Part Number | Description |
|---|
| 3 |
93-6693 |
DECAL-PLATE, FLOOR Price: $10.84 |
| 4 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 5 |
93-7592 |
TREAD-REST, FOOT Price: $13.96 |
| 6 |
62-7400 |
DECAL Price: $24.54 |
| 7 |
75-0620 |
TREAD-FOOT, LH Price: $24.33 |
| 8 |
165619 |
Rod Shift Fender Adjust Price: Call Us |
| 8 |
75-0610 |
TREAD-FOOT, RH Price: $21.68 |
| 10 |
STD561210 |
Pin Cotter 1/8 x 1 CAD Price: Call Us |
| 11 |
93-6691 |
DECAL-BOLT, ECCENTRIC Price: $1.84 |
| 12 |
93-6699 |
DECAL-FAST / SLOW Price: $18.07 |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
104-2052 |
DISCONTINUED Price: Call Us |
| 15 |
74490544 |
Bolt Hex FLGHD 5/16-18 Gr.5 Price: Call Us |
| 16 |
STD541431 |
Nut Lock Hex W/Ins. 5/16-18 Unc Price: Call Us |
| 19 |
STD541437 |
Nut Lock Hex W/Wsh 3/8-16 Unc Price: Call Us |
| 21 |
106933X |
Knob 1/2-13 Price: Call Us |
| 22 |
178141 |
Rod, Brake Price: Call Us |
| 24 |
73350600 |
Nut, Hex Jam 3/8-16 Unc Price: Call Us |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 27 |
STD561210 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 29 |
71673 |
Cap, Parking Brake Price: Call Us |
| 30 |
174973 |
Bracket, Transaxle Price: Call Us |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 Unc x 3/4 Price: Call Us |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Pin, Roll Price: Call Us |
| 38 |
179114 |
Pulley, Composite Price: Call Us |
| 39 |
74760648 |
Bolt Fin Hex 3/8-16 x 3 Price: Call Us |
| 41 |
175556 |
Keeper, Belt Idler Price: Call Us |
| 47 |
127783 |
Pulley, Idler, V-Groove Price: Call Us |
| 48 |
154407 |
Bellcrank, Clutch Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5 Price: Call Us |
| 51 |
STD541437 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
STD541431 |
Nut, Crownlock 5/16-18 Unc Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
178138 |
V-Belt Price: Call Us |
| 59 |
169691 |
Keeper, Center Span Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover, Pedal Price: Call Us |
| 63 |
175410 |
Pulley, Engine Price: Call Us |
| 64 |
173937 |
Bolt Hex 7/16-20 x 4 Gr. 5 Price: Call Us |
| 65 |
STD551143 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Hydro Price: Call Us |
| 69 |
142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 Unc Price: Call Us |
| 70 |
134683 |
Keeper Belt Engine Price: Call Us |
| 74 |
137057 |
Spacer Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
STD581075 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 81 |
178140 |
Shaft Asm Cross Tapered Price: Call Us |
| 82 |
123782X |
Spring Torsion Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4-28 FNTHD Price: Call Us |
| 89 |
169373X428 |
Console, Shift Price: Call Us |
| 95 |
178134 |
Disconnect Asm Rod Bypas LTH Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sqneck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16 ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 Unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 Price: Call Us |
| 164 |
19091010 |
Washer 5/8 x .281 x 10 Ga Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8" ID Price: Call Us |
| 198 |
169593 |
Washer Nyl 7/8 ID x .105" Hyd Price: Call Us |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr.5 Price: Call Us |
| 212 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 245 |
178122 |
Strap Torque Lh LTH2000 Price: Call Us |
| 246 |
178121 |
Strap Torque Rh LTH2000 Price: Call Us |
| 247 |
181463 |
Link Shift Transaxle LTH2000 Price: Call Us |
| 250 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 251 |
17060516 |
Screw 5/16-18 x 1 Price: Call Us |
