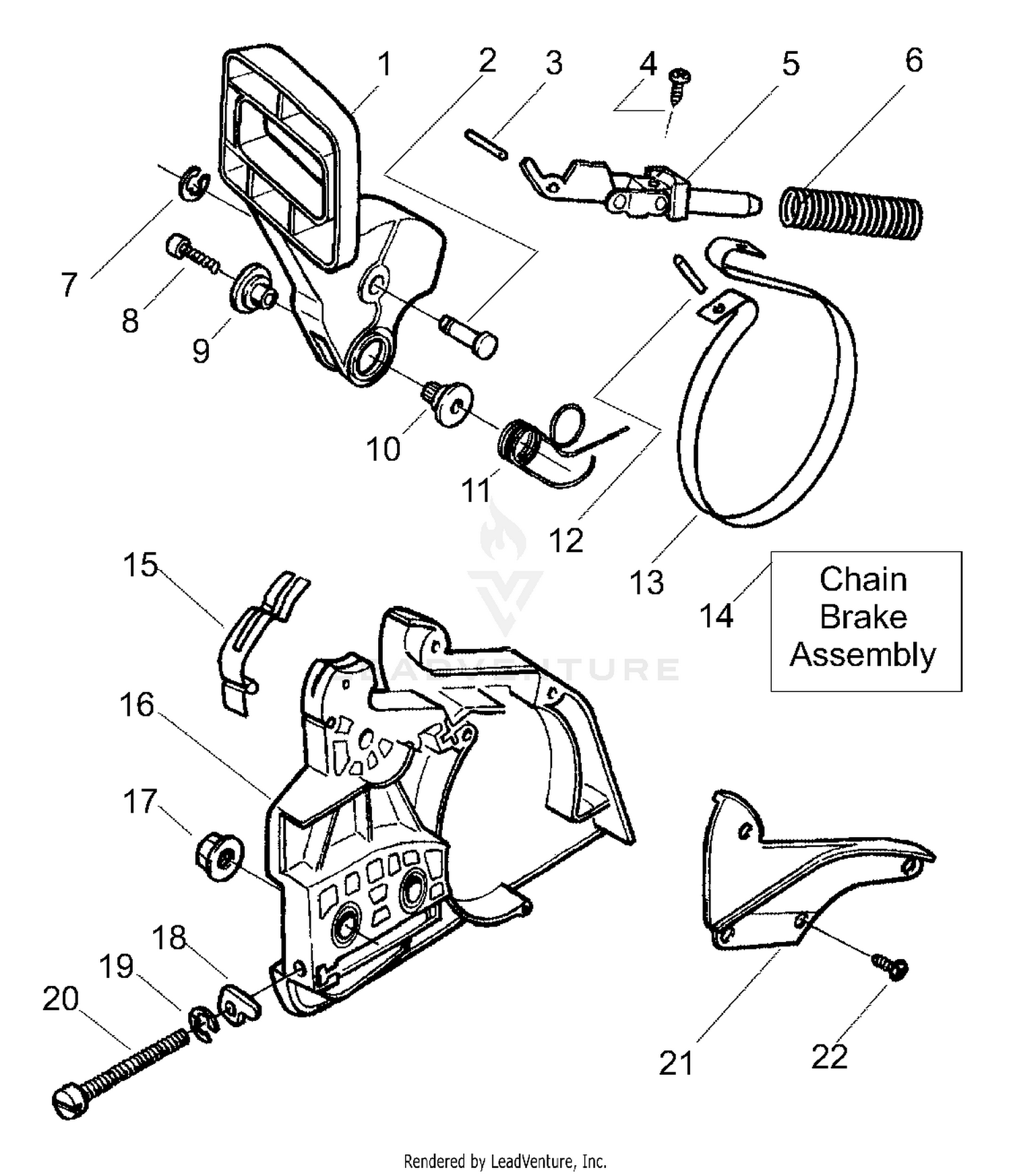

Chain Brake
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530071348 | HANDGUARD Price: $21.99 |
| 2 | 530029879 | PIVOT PIN Price: $3.99 |
| 3 | 720123300 | PIN 3X10 Price: $2.99 |
| 4 | 503212810 | SCREW Price: $2.99 |
| 5 | 530054741 | FRONT LINK ASSY Price: $4.99 |
| 6 | 501875401 | SPRING Price: $6.99 |
| 7 | 530038593 | RETAINER Price: $3.99 |
| 8 | 530015914 | SCREW Price: $2.99 |
| 9 | 501768001 | PIVOT SLEEVE R Price: $4.99 |
| 10 | 501768101 | PIVOT SLEEVE L Price: $6.99 |
| 11 | 530015910 | SPRING,BRK HDL 36/41 Price: $4.99 |
| 12 | 721425250 | SPIRAL PIN 4X12 Price: $2.99 |
| 13 | 545137401 | BRAKE BAND This part replaces 530052232. Price: $5.99 |
| 14 | 530054802 | CHAIN BRAKE ASM. Price: $39.99 |
| 15 | 530029878 | SPRING-POSITION Price: $4.99 |
| 16 | 530049483 | CLUTCH COVER Price: $14.99 |
| 17 | 530015917 | BAR NUT Price: $2.99 |
| 18 | 530015826 | ADJUST PIN,BAR 36/41 Price: $3.99 |
| 19 | 530038593 | RETAINER Price: $3.99 |
| 20 | 530016110 | BAR ADJUSTING SCREW Price: $3.99 |
| 21 | 530053035 | CHAIN BRAKE COVER Price: $2.99 |
