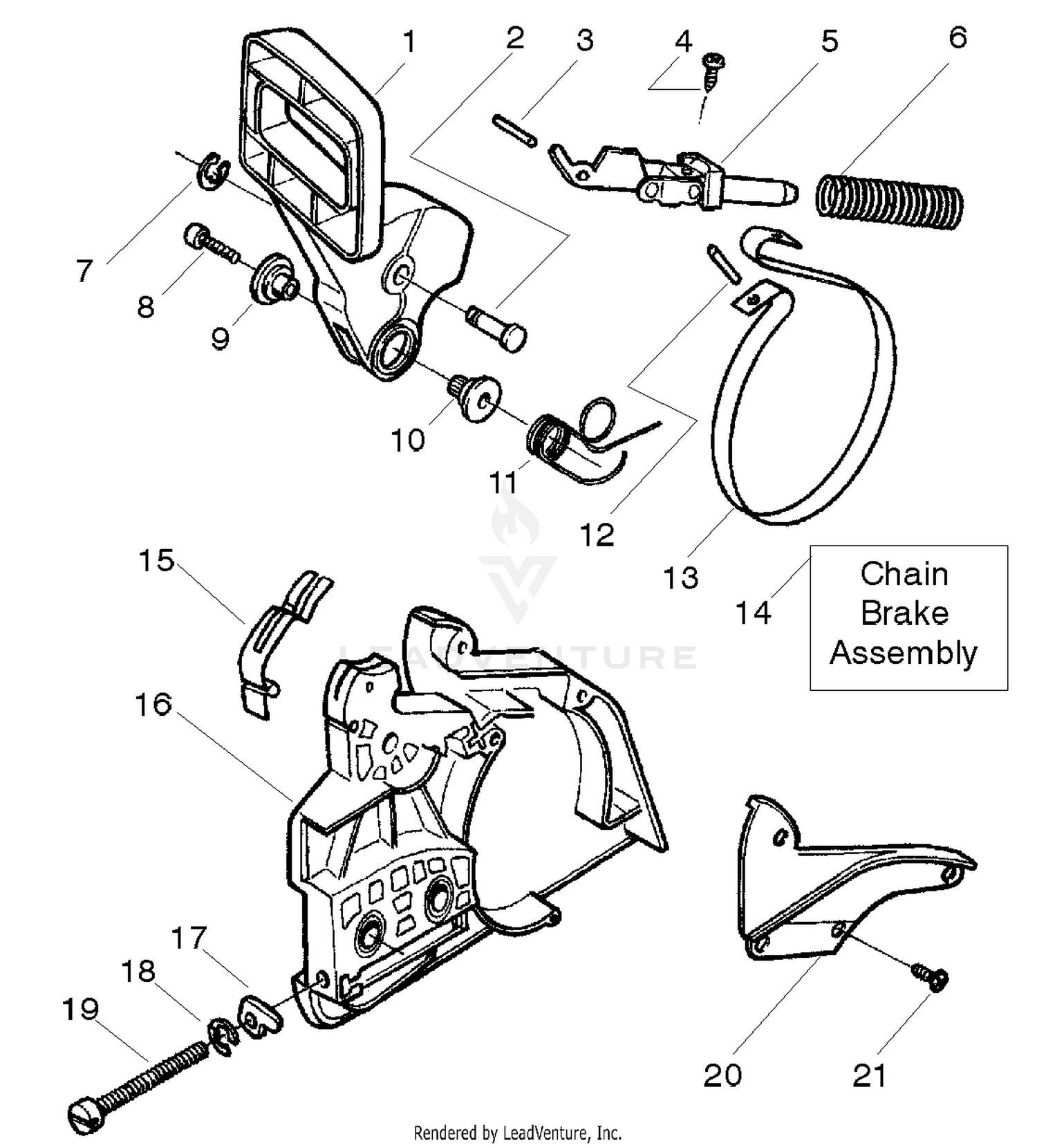

| Ref | Part Number | Description |
|---|
| 1 |
530071348 |
HANDGUARD Price: $21.99 |
| 1 |
62-7400 |
DECAL Price: $24.54 |
| 2 |
530029879 |
PIVOT PIN Price: $3.99 |
| 2 |
76-9700-01 |
COVER-TOWER This part replaces 76-9700. Price: $240.24 |
| 3 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 3 |
530015915 |
PIN Price: $3.99 |
| 4 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 4 |
574780301 |
SCREW M3.63-1.34 X 8MM This part replaces 530015911. Price: $3.99 |
| 5 |
256-237 |
BUSHING Price: $14.99 |
| 5 |
530054741 |
FRONT LINK ASSY Price: $4.99 |
| 6 |
545137301 |
COMPRESSION SPRING This part replaces 530016237. Price: $6.99 |
| 6 |
84-1080 |
FRAME WA (TRK) Price: $5,191.33 |
| 7 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 7 |
530038593 |
RETAINER Price: $3.99 |
| 8 |
530016384 |
SCREW Price: $3.99 |
| 9 |
530056531 |
JOURNAL, RIGHT Price: $3.99 |
| 9 |
94-5601-03 |
SUPPORT-TANK, LOWER This part replaces 94-5601. Price: $106.64 |
| 10 |
530029881 |
SHAFT PIVOT Price: $2.99 |
| 10 |
68-7573 |
STRIP-SEALING Price: $8.09 |
| 11 |
530015910 |
SPRING,BRK HDL 36/41 Price: $4.99 |
| 11 |
76-6360 |
DISCONTINUED Price: Call Us |
| 12 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 12 |
530015913 |
PIN Price: $2.99 |
| 13 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 13 |
545137401 |
BRAKE BAND This part replaces 530052232. Price: $5.99 |
| 14 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 14 |
530054802 |
CHAIN BRAKE ASM. Price: $39.99 |
| 15 |
530029878 |
SPRING-POSITION Price: $4.99 |
| 15 |
94-5618 |
TRIM-FIREWALL Price: $22.37 |
| 16 |
530049483 |
CLUTCH COVER Price: $14.99 |
| 16 |
93-7798 |
HOOD ASM Price: $3,496.28 |
| 17 |
530015826 |
ADJUST PIN,BAR 36/41 Price: $3.99 |
| 17 |
94-5613 |
STOP-RUBBER Price: $8.22 |
| 18 |
530038593 |
RETAINER Price: $3.99 |
| 18 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 19 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 19 |
530016110 |
BAR ADJUSTING SCREW Price: $3.99 |
| 20 |
530053035 |
CHAIN BRAKE COVER Price: $2.99 |
| 20 |
84-1460 |
DECAL-GM455D Price: $74.18 |
| 21 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 21 |
574780301 |
SCREW M3.63-1.34 X 8MM This part replaces 530015911. Price: $3.99 |
| 22 |
94-5617 |
DISCONTINUED Price: Call Us |
| 23 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 24 |
323-6 |
SCREW-HH Price: $0.66 |
| 25 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
80-7730 |
SPACER Price: $1.97 |
| 28 |
93-7236-03 |
SUPPORT-CLEANER, AIR ASM This part replaces 93-7236. Price: $284.90 |
| 29 |
74-4090 |
TREAD-REST, FOOT Price: $46.79 |
| 30 |
323-4 |
SCREW-HH Price: $1.02 |
| 31 |
94-5609-03 |
COVER-HOOD, LOWER This part replaces 94-5609. Price: $403.69 |
| 32 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 33 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 34 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 35 |
32148-10 |
NUT-CLINCH Price: $1.29 |
| 36 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 37 |
76-9300-01 |
FENDER-LH This part replaces 76-9300. Price: $724.69 |
| 38 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 39 |
88-1310 |
STRIP-FOAM, COVER Price: $24.15 |
| 40 |
88-1300-03 |
FRT SEAT COVER This part replaces 88-1300. Price: $45.69 |
| 41 |
76-6380 |
SEAL-COVER, FRONT Price: $5.49 |
| 42 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 43 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 44 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 45 |
32121-36 |
PIN-SPRING Price: $2.56 |
| 46 |
93-7203-01 |
LATCH-LOCKUP This part replaces 93-7203. Price: $73.18 |
| 47 |
325-5 |
SCREW-HH Price: $1.20 |
| 48 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 49 |
76-6361 |
STRIP-SEALING Price: $25.24 |
| 50 |
93-9425 |
DECAL-DANGER Price: $28.20 |
| 51 |
83-1470 |
WASHER-NEOPRENE Price: $1.97 |
