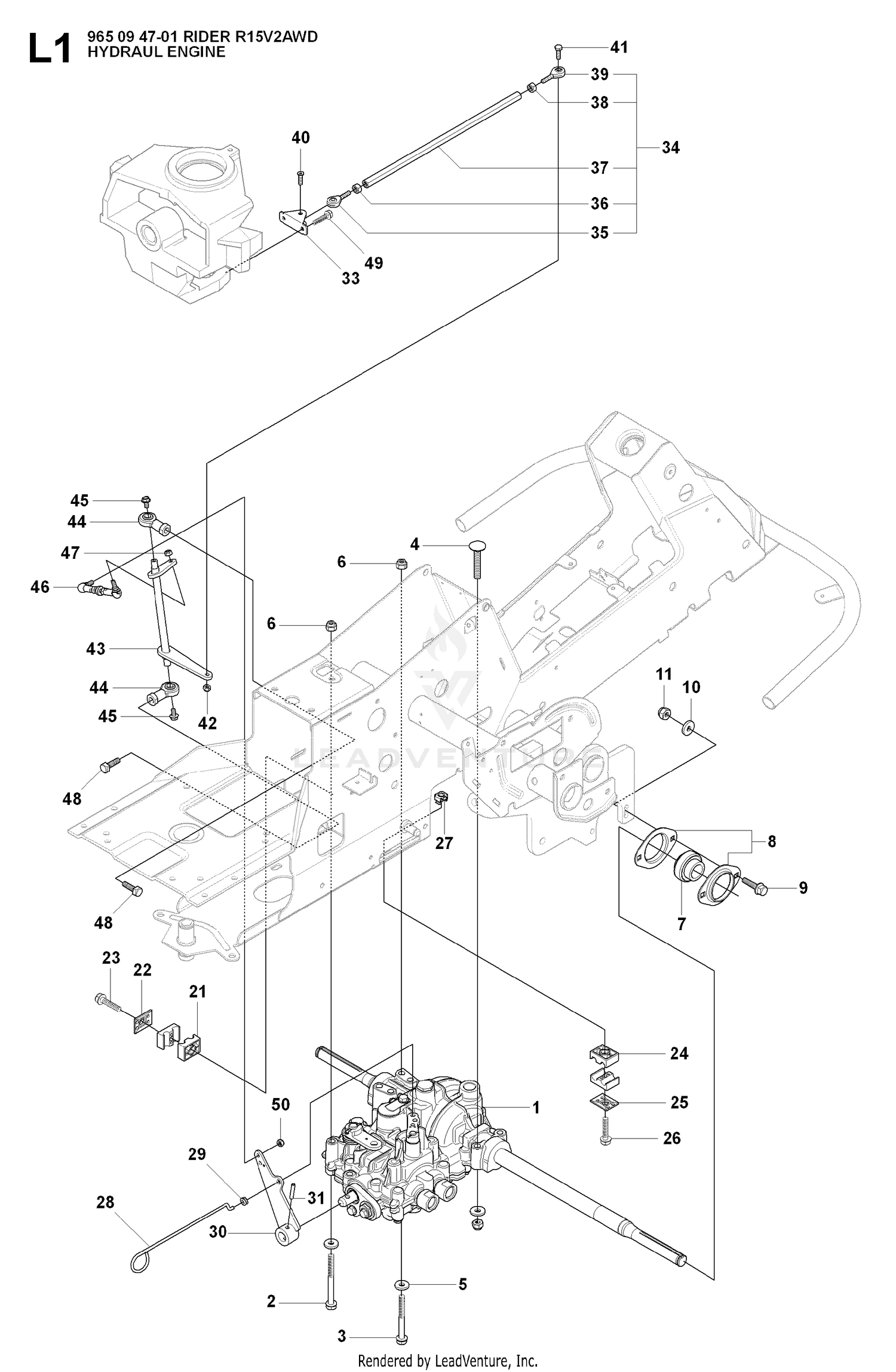

HYDRAULIC PUMP - MOTOR
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 575870301 | TRANSMISSION This part replaces 544116001. Price: $899.99 |
| 2 | 725246751 | Hex Bolt Price: $4.99 |
| 3 | 725246451 | SCREW Price: $5.99 |
| 4 | 535423803 | SCREW Price: $3.99 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 7 | 544008902 | BEARING This part replaces 544008901. Price: $64.99 |
| 8 | 544009001 | BEARING HOUSING Price: $17.99 |
| 9 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 10 | 131-6557 | ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 11 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 20 | 112-7047 | STAY-DYNAMO Price: $14.95 |
| 21 | 544373303 | PIPE CLAMP Price: $4.99 |
| 22 | 535438501 | COVER Price: $4.99 |
| 23 | 725237861 | BOLT Price: $2.99 |
| 24 | 544373302 | PIPE CLAMP Price: $3.99 |
| 25 | 544373802 | COVER PLATE Price: $4.99 |
| 26 | 506570107 | SCREW EHHFM Price: $5.99 |
| 27 | 544811701 | CAGE NUT Price: $3.99 |
| 28 | 535499701 | ARM Price: $8.99 |
| 29 | 503735801 | FUEL TANK BUSHING Price: $5.99 |
| 30 | 108-7088 | BOLT Price: $1.22 |
| 30 | 544435201 | LEVER Price: $17.99 |
| 31 | 721434701 | PIN Price: $2.99 |
| 34 | 593959403 | NEEDS DESCRIPTION This part replaces 544456703. Price: $74.99 |
| 35 | 535486602 | LINK Price: $64.99 |
| 36 | 503221018 | NUT Price: $2.99 |
| 37 | 535486503 | ROD Price: $37.99 |
| 38 | 731231601 | NUT Price: $2.99 |
| 39 | 535486601 | LINK Price: $54.99 |
| 40 | 544841701 | SCREW Price: $2.99 |
| 40 | 98-9360 | BOLT Price: $2.35 |
| 41 | 725237071 | SCREW Price: $3.99 |
| 42 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 43 | 535497401 | LINK Price: $99.99 |
| 44 | 506951701 | LINK Price: $39.99 |
| 45 | 535475212 | SCREW EHHFM Price: $2.99 |
| 46 | 544441901 | ADJUSTING ROD Price: $17.99 |
| 47 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 48 | 725249371 | Screw M10x25 Price: $1.82 |
| 49 | 725236651 | SCREW Price: $2.99 |
| 50 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 50 | 99-7526 | NUT This part replaces 98-7737. Price: $1.29 |
| 60 | 98-9366 | WASHER-PLAIN Price: $0.28 |
| 70 | 98-7738 | WASHER-SPRING Price: $0.24 |
| 90 | 98-7692 | BOLT Price: $0.92 |
| 100 | 98-9473 | PULLEY-DRIVE, FAN Price: $319.19 |
| 110 | 98-9585 | BOLT Price: $15.20 |
| 120 | 98-9676 | V-BELT Price: $31.01 |
| 130 | 104-4246 | FAN-ENGINE Price: $154.04 |
| 140 | 98-9584 | PULLEY-FAN Price: $89.56 |
| 150 | 33103-020 | SCREW-HHF Price: $2.16 |
