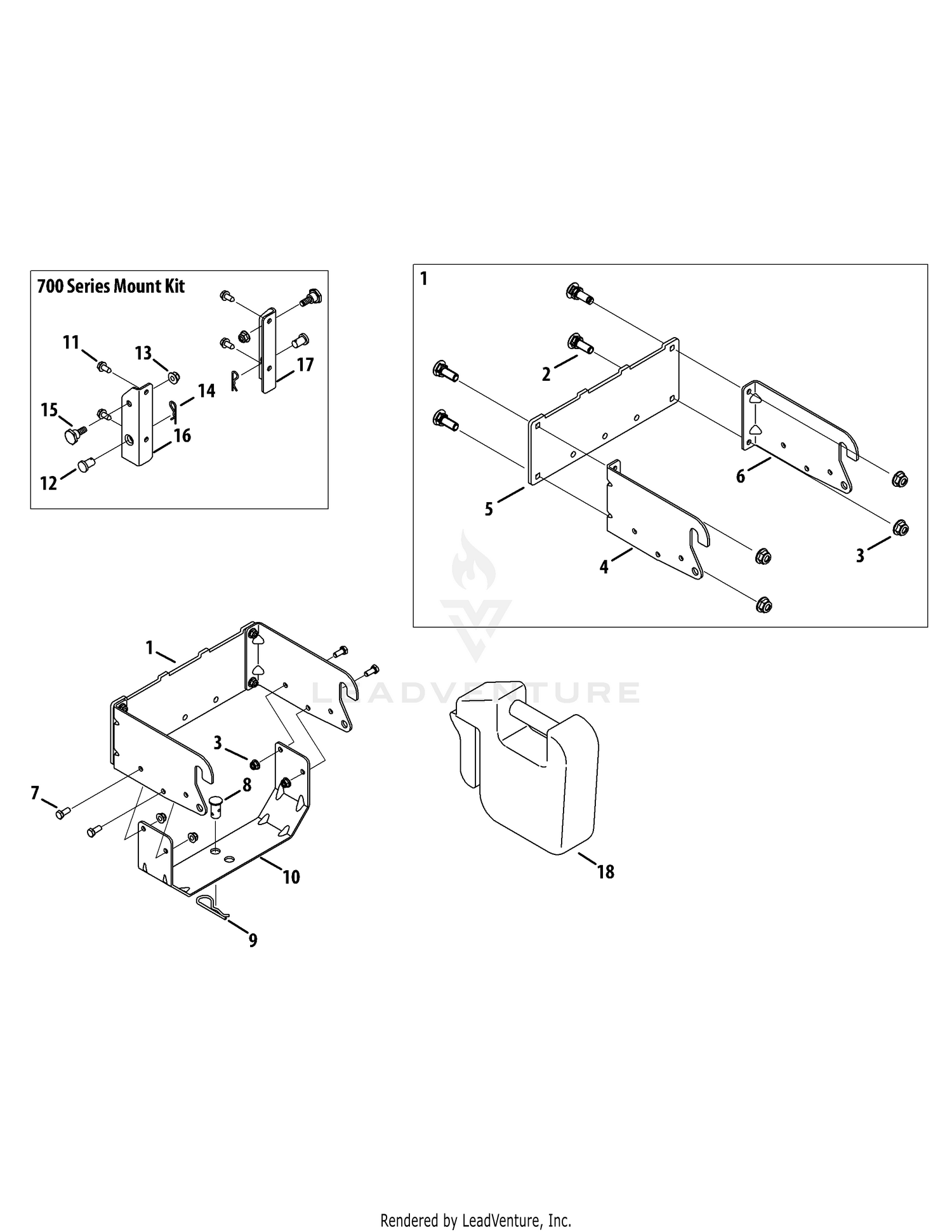

| Ref | Part Number | Description |
|---|
| 1 |
689-00101 |
Hitch Bracket Assembly Price: $102.97 |
| 2 |
710-0276 |
Carriage Screw, 5/16-18 x 1.00" Price: $3.68 |
| 3 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 7 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 8 |
711-0309A |
Clevis Pin, .62" Dia. Price: $11.31 |
| 9 |
714-0117 |
Internal Cotter Pin, .148 x 3.00 Price: $3.85 |
| 10 |
783-05887-0637 |
Universal Bracket Support Price: $47.34 |
| 11 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 12 |
911-0332 |
Clevis Pin This part replaces 711-0332. Price: $14.98 |
| 13 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 14 |
714-0145 |
Inter. Cotter Pin 3/8" Dia. This part replaces 914-0145. Price: $4.42 |
| 15 |
738-04267 |
Shoulder Screw, .625 x .412 Price: $4.77 |
