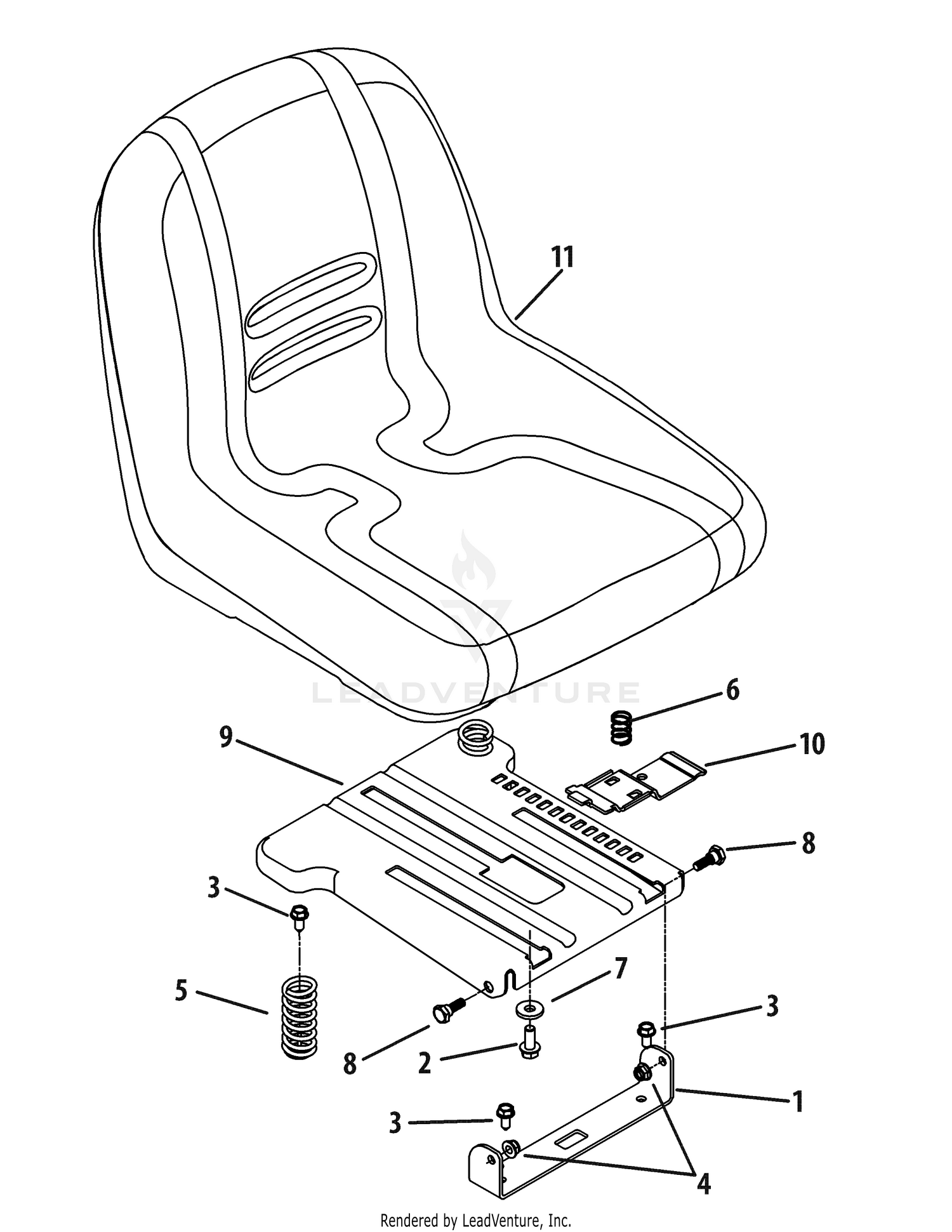

| Ref | Part Number | Description |
|---|
| 1 |
703-06941-4033 |
SEAT PIVOT BRACKET (FLINT MICA) Not Available Price: |
| 3 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 5 |
732-04035 |
Compression Spring Price: $9.61 |
| 6 |
732-04563 |
Compression Spring Price: $4.74 |
| 7 |
736-0258 |
Flat Washer, .385 x 1.0 x .135 Price: $3.93 |
| 8 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 9 |
783-06049-4033 |
Seat Mount Bracket Price: $60.14 |
| 10 |
783-06050 |
Seat Adjustment Lever Price: $8.85 |
