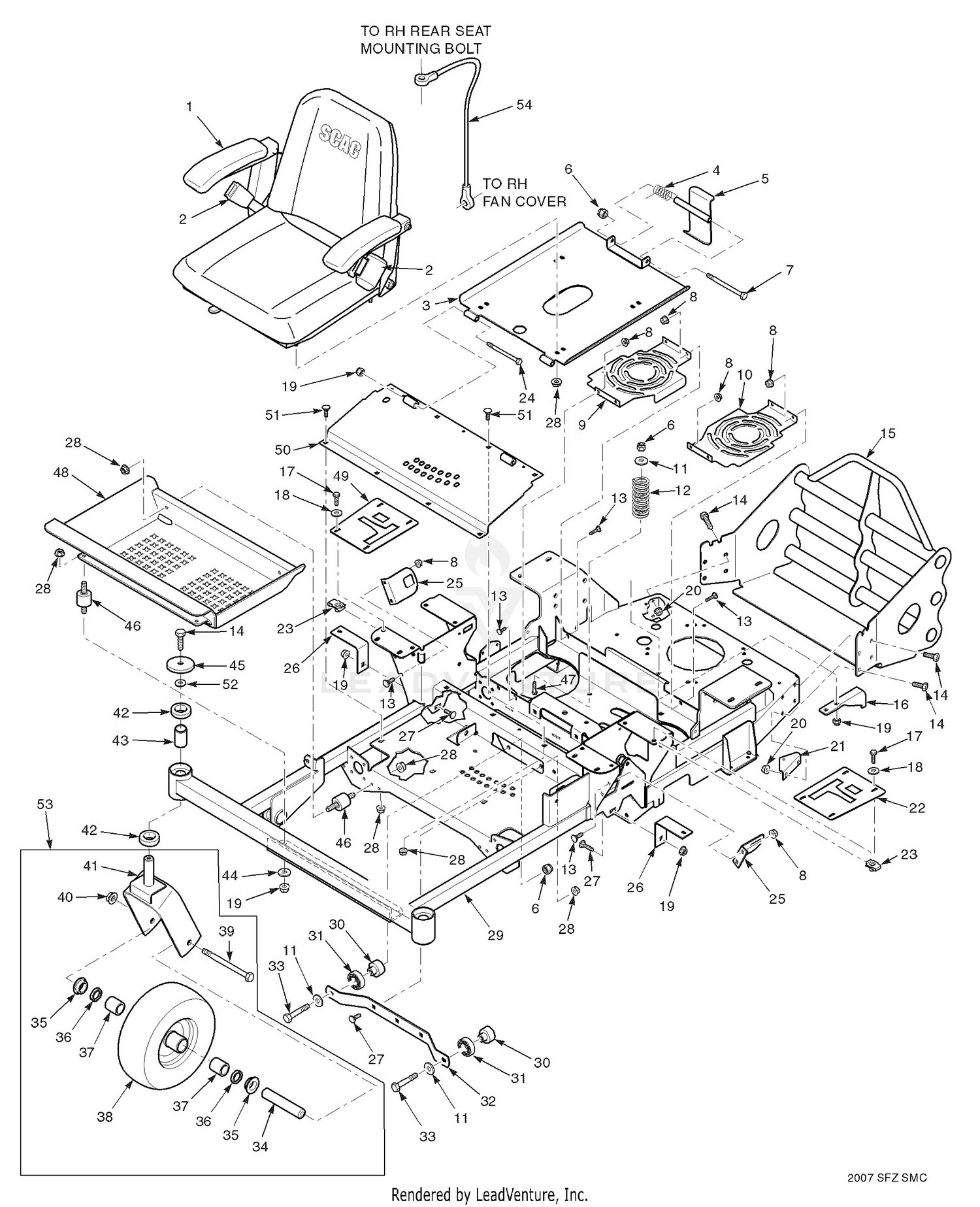

| Ref | Part Number | Description |
|---|
| 1 |
485142 |
Seat Assembly This part replaces 483408. Price: Call Us |
| 2 |
485164 |
Seat Belt Assembly, Retractable This part replaces 483412. Price: Call Us |
| 3 |
462034 |
Seat Base w/decal Price: Call Us |
| 4 |
483371 |
Spring, Seat Latch Price: Call Us |
| 5 |
451883 |
Seat Latch Price: Call Us |
| 6 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 7 |
04001-100 |
Bolt, Hex Head 3/8-16 x 6" Price: Call Us |
| 8 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 9 |
425698 |
Fan Cover, RH This part replaces 424585. Price: Call Us |
| 10 |
425697 |
Fan Cover, LH This part replaces 424550. Price: Call Us |
| 11 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 12 |
483372 |
Spring, Seat Price: Call Us |
| 13 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 14 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 15 |
452334 |
Bumper Weldment This part replaces 451929. Price: Call Us |
| 16 |
424523 |
Bracket, Anti-Rotation Price: Call Us |
| 17 |
04001-14 |
Bolt, Hex Head 1/4-20 x 1" Price: Call Us |
| 18 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 19 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 20 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 21 |
424639 |
Bracket, Dump Valve Price: Call Us |
| 22 |
462023 |
Control Plate LH Price: Call Us |
| 23 |
04110-01 |
U-Nut 1/4-20 Price: Call Us |
| 24 |
04001-73 |
Bolt, Hex Head 5/16-18 x 3-3/4" Price: Call Us |
| 25 |
424511 |
Bracket, Switch Mount Price: Call Us |
| 26 |
424516 |
Bracket, Tank Mount Price: Call Us |
| 27 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 28 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 29 |
462093 |
MAINFRAME ASSY W/DECALS, SFZ This part replaces 462022. Price: Call Us |
| 30 |
43703 |
Spacer, Bearing Price: Call Us |
| 31 |
483379 |
Bearing Price: Call Us |
| 32 |
424480 |
Support, Deck Guide Price: Call Us |
| 33 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 34 |
43698 |
Sleeve, Front Caster Wheel Price: Call Us |
| 35 |
483453-09 |
Bearing Price: Call Us |
| 36 |
483486 |
Seal, 1 x 1.375 x .25 Price: Call Us |
| 37 |
483453-08 |
Bearing Price: Call Us |
| 38 |
485207 |
Caster Wheel Assembly This part replaces 483409. Price: Call Us |
| 39 |
04001-80 |
Bolt, Hex Head 1/2-13 x 6-1/2" Price: Call Us |
| 40 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 41 |
451845 |
Yoke, Caster Wheel Price: Call Us |
| 42 |
483466 |
Bearing Price: Call Us |
| 43 |
43736 |
Spacer, Caster Bearing Price: Call Us |
| 44 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 45 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25 x .188 Price: Call Us |
| 46 |
483493 |
Rubber Isolator Price: Call Us |
| 47 |
04003-11 |
Bolt, Carriage 3/8-16 x 1-1/4" Price: Call Us |
| 48 |
451889 |
Foot Plate Weldment Price: Call Us |
| 49 |
462024 |
Control Plate RH Price: Call Us |
| 50 |
462761 |
DECKLIFT COVER W/ DECAL, SFZ This part replaces 462005. Price: Call Us |
| 51 |
04003-14 |
Bolt, Carriage 5/16-18 x 1/2" Price: Call Us |
| 52 |
04040-11 |
Flatwasher, 7/16-.500 x 1.250 x .083 Price: Call Us |
| 53 |
462716 |
Caster Wheel Assembly w/Yoke This part replaces 462015. Price: Call Us |
| 461990 |
Hardware |
Package, Seat Belt Mouting Price: Call Us 461990 |
| 483544 |
Back |
Cushion Price: Call Us 483544 |
| 483545 |
Bottom |
Cushion Price: Call Us 483545 |
| 483549 |
Arm |
Rest Kit Price: Call Us 483549 |
| 485160 |
Seat |
Adjustment Kit This part replaces 483543. Price: Call Us 485160 |
| 485242 |
Rim |
Assembly This part replaces 483410. Price: Call Us 485242 |
