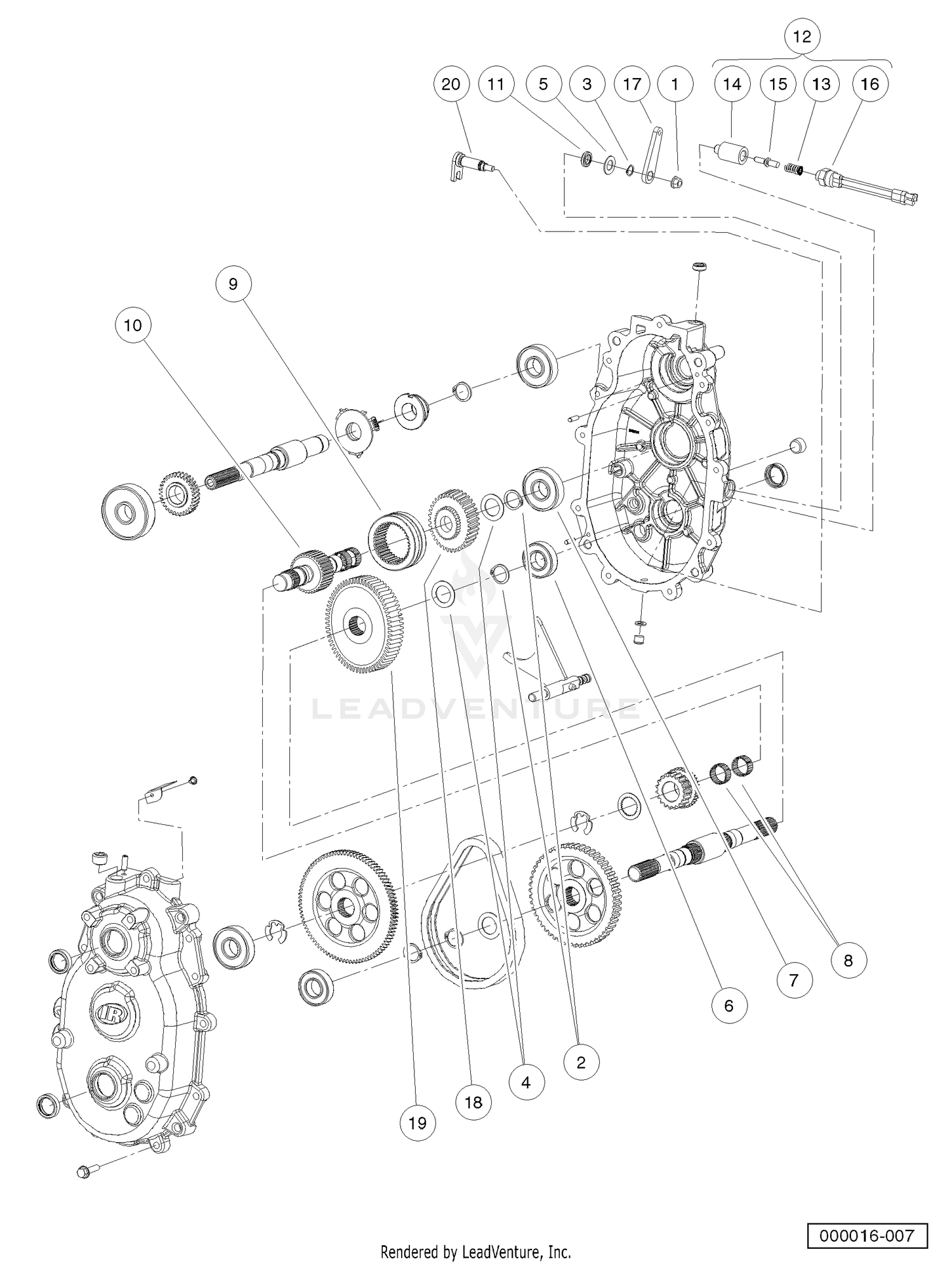

| Ref | Part Number | Description |
|---|
| 1 |
603001640 |
NUT, LOCK HEX, NYLON, 5/16-24 Price: $5.99 |
| 1 |
69-3150 |
SCREW Price: $2.17 |
| 2 |
603001642 |
RING, RETAINING, BASIC EXTERNA Price: $6.99 |
| 2 |
69-3070 |
WASHER Price: $0.28 |
| 3 |
603001644 |
RING, RETAINING, EXTERNAL 9/16 Price: $5.99 |
| 4 |
603001645 |
WASHER, THRUST, 1.007 X .062 Price: $8.99 |
| 5 |
603001646 |
WASHER, FLAT, .58 X 1.08 X .05 Price: $2.99 |
| 6 |
603001648 |
BEARING, BALL, 6205 C3 Price: $29.99 |
| 7 |
603001649 |
BEARING, BALL, 6305 C3 Price: $44.99 |
| 8 |
603001651 |
BEARING, NEEDLE, SPLIT CAGE Price: $24.99 |
| 9 |
603002826 |
DOG, ENGAGEMENT Price: $179.99 |
| 10 |
603002836 |
SHAFT, INTERMEDIATE Price: $329.99 |
| 13 |
69-3500 |
BEARING-SLEEVE Price: $472.61 |
| 14 |
69-3510 |
PIN Price: $29.51 |
| 15 |
107-4354 |
COVER-FRONT This part replaces 76-4610. Price: $1,302.74 |
| 16 |
76-4590 |
SCREW Price: $5.43 |
| 17 |
603003571 |
BELLCRANK, ALUM Price: $27.99 |
| 17 |
69-3200 |
RING-RETAINING Price: $20.29 |
| 18 |
69-3190 |
SEAL-LIP Price: $94.91 |
| 19 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 20 |
75-0460 |
BEARING-BALL This part replaces 69-3210. Price: $175.71 |
| 21 |
69-3960 |
SCREW Price: $5.90 |
| 22 |
69-3970 |
BEARING-JOURNAL Price: $392.61 |
| 23 |
94-2878 |
PIN This part replaces 69-3520. Price: $9.76 |
| 24 |
69-3980 |
SWASHPLATE Price: $589.79 |
| 25 |
69-3950 |
SHAFT-MOTOR Price: $816.22 |
| 26 |
76-4600 |
GASKET-COVER, FRONT Price: $81.78 |
| 27 |
107-4379 |
CYLINDER BLOCK KIT This part replaces 69-3910. Price: $2,151.85 |
| 28 |
69-3990 |
PLATE-VALVE, MOTOR Price: $406.84 |
| 29 |
136-1026 |
PLUG ASM This part replaces 69-3940. Price: $9.75 |
| 30 |
69-3450 |
PIN Price: $3.33 |
| 31 |
69-3370 |
BEARING-NEEDLE Price: $49.67 |
| 32 |
69-3230 |
PIN-SPRING Price: $24.22 |
| 33 |
69-3130 |
PLUG Price: $62.97 |
| 37 |
69-4020 |
PISTON-SERVO Price: $565.06 |
| 38 |
69-3560 |
O-RING Price: $7.18 |
| 39 |
69-3920 |
PISTON RING AND O-RING KIT This part replaces 69-3570. Price: $181.90 |
| 40 |
69-4030 |
SPRING-SERVO Price: $113.55 |
| 41 |
69-3710 |
GASKET-SERVO Price: $58.74 |
| 42 |
69-4040 |
STOP Price: $162.69 |
| 43 |
69-3720 |
COVER-SERVO Price: $406.84 |
| 44 |
95-4400 |
WASHER-BACKUP Price: $7.74 |
