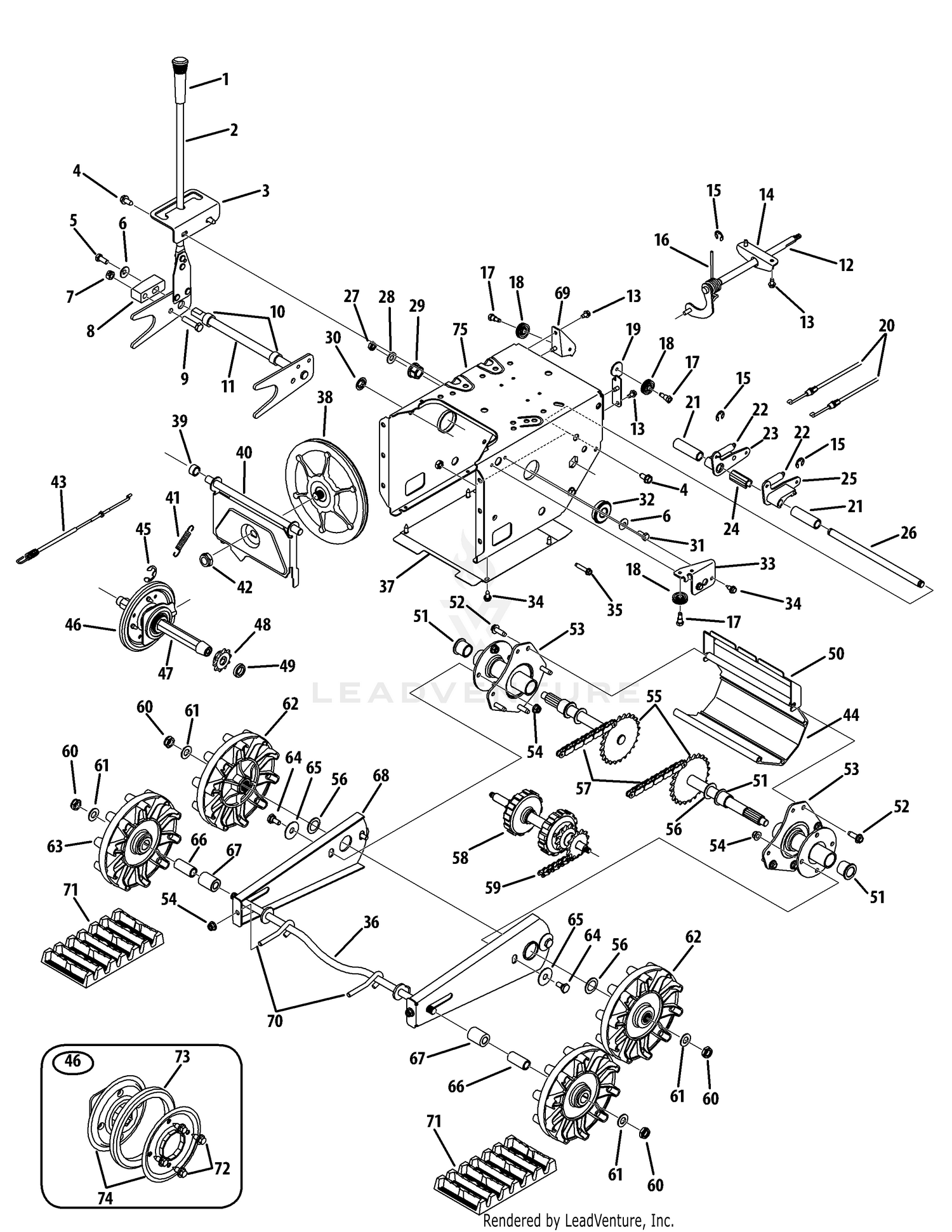

| Ref | Part Number | Description |
|---|
| 1 |
720-0223 |
Grip, .5 ID x 3.45 Price: $12.89 |
| 2 |
684-0038 |
HANDLE ASSEMBLY Price: $51.65 |
| 3 |
784-5642 |
TRACK LOCKOUT PLATE Not Available Price: |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-0157 |
Hex Screw, 5/16-24 x .75 Price: $3.90 |
| 6 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 7 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 8 |
748-0353A |
LIFT SHAFT DRIVE Not Available Price: |
| 9 |
710-0344 |
Hex Screw, 3/8-16 x 1.50 Price: $5.16 |
| 10 |
750-0547 |
Spacer, .828 ID x .875 OD x .500 Price: $4.83 |
| 11 |
684-0009A |
PIVOT ROD ASSEMBLY Not Available Price: |
| 12 |
684-04307 |
SHIFT ROD ASSEMBLY Not Available Price: |
| 13 |
710-0599 |
Hex Washer Screw, 1/4-20 x .500 Price: $3.86 |
| 14 |
784-5590 |
Shift Frame Bracket Price: $10.65 |
| 15 |
916-0104 |
E-Ring Price: $3.37 |
| 16 |
732-04514 |
TORSION SPRING Not Available Price: |
| 17 |
738-0924A |
Shoulder Screw, .34 x .335 x 1/4-28 Price: $5.94 |
| 18 |
756-0625 |
Cable Roller Price: $8.52 |
| 19 |
784-5687A-0637 |
AUGER GUIDE BRACKET Not Available Price: |
| 20 |
946-0948A |
Track Steering Cable Price: $32.82 |
| 21 |
750-0903B |
SPLIT SPACER Not Available Price: |
| 22 |
932-0209 |
Extension Spring, .48 OD x 2.03 Price: $7.01 |
| 23 |
618-0043 |
DOG ASSEMBLY (RH) Not Available Price: |
| 24 |
750-05021 |
Spacer, .491 ID x 1.87 Price: $3.49 |
| 25 |
618-0044 |
Dogg Assembly, LH Price: $21.12 |
| 26 |
911-04927 |
SHIFT ACTUATOR Not Available Price: |
| 27 |
712-0116 |
Jam Nut This part replaces 912-0116. Price: $3.95 |
| 28 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 29 |
741-1111 |
Hex Flange Bearing Price: $8.98 |
| 30 |
726-0221 |
Speed Nut, .500 Price: $5.34 |
| 31 |
710-0538 |
Hex Lock Screw, 5/16-18 x .625 Price: $4.02 |
| 32 |
941-0563 |
Ball Bearing Price: $33.84 |
| 33 |
790-00287-0637 |
AUGER GUIDE BRACKET Not Available Price: |
| 34 |
710-1652 |
Hex Washer Screw, 1/4-20 x .625 Price: $3.86 |
| 35 |
710-0788 |
Hex Washer Screw, 1/4-20 x 1.000 Price: $6.20 |
| 36 |
684-04240 |
Axle Assembly Price: $54.83 |
| 37 |
784-5648A-0637 |
TRACK FRAME COVER (POWDER BLACK) Not Available This part replaces 784-5648A-4033. Price: |
| 38 |
656-04055A |
FRICTION WHEEL DISC ASSEMBLY This part replaces 656-04055. Price: $52.47 |
| 39 |
750-04748 |
SPACER-.525 ID x .750 x .42 Not Available Price: |
| 40 |
684-04241A-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available Price: |
| 41 |
932-0264 |
Extension Spring Price: $4.40 |
| 42 |
712-0417A |
HEX NUT Price: $6.50 |
| 43 |
946-0898 |
Drive Clutch Cable Price: $24.46 |
| 44 |
719-0295A |
TRACK HOUSING Not Available Price: |
| 45 |
716-0136 |
E-Ring Price: $7.56 |
| 46 |
684-04159C |
Friction Wheel Assembly This part replaces 684-04159. Price: $89.34 |
| 47 |
911-04928 |
DRIVE SHAFT .75 HEX TRACK Not Available Price: |
| 48 |
913-04015 |
Sprocket, 10T Price: $10.58 |
| 49 |
950-0997 |
Spacer, .675 ID x 1.00 OD x .23 Price: $6.07 |
| 50 |
784-5609 |
STEERING BRACKET Not Available Price: |
| 51 |
941-0339 |
Flange Bearing Price: $11.83 |
| 52 |
710-0602 |
Hex Washer Screw, 5/16-18 x 1.0 Price: $4.05 |
| 53 |
683-0024-0637 |
Track Hub Assembly Price: $73.99 |
| 54 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 55 |
611-0053 |
Track Axle Assembly Price: $85.27 |
| 56 |
736-0287 |
Washer, Flat, .793 x 1.24 x .060 This part replaces 936-0287. Price: $3.93 |
| 57 |
713-0437 |
Chain Price: $32.86 |
| 58 |
918-0169B |
Drive Track Shift Assembly Price: $303.21 |
| 59 |
713-0233 |
Chain Price: $36.15 |
| 60 |
712-0346 |
Jam Nut, 1/2-20 This part replaces 912-0346. Price: $3.95 |
| 61 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 936-0272. Price: $4.37 |
| 62 |
731-1538A |
Track Drive Wheel Price: $33.64 |
| 63 |
631-0032A |
Track Idler Wheel This part replaces 631-0032. Price: $39.72 |
| 64 |
738-0140 |
Shoulder Screw, .435 x .178, 5/16 x .56 This part replaces 938-0140. Price: $4.93 |
| 65 |
936-0406 |
Flat Washer, .442 x 1.38 x .060 Price: $5.94 |
| 66 |
750-0995 |
SPACER Not Available Price: |
| 67 |
750-0909 |
SPACER-.51IDX1.34LG Not Available Price: |
| 68 |
784-5639 |
TRACK SIDE PLATE Not Available Price: |
| 69 |
784-5688-0637 |
DRIVE GUIDE BRACKET Not Available Price: |
| 70 |
710-1231 |
EYEBOLT5/16-18 x 3.0 Not Available Price: |
| 71 |
731-1292 |
SNOW TRACK Not Available Price: |
| 72 |
710-0896 |
Hex Washer Screw, 1/4-14 x .625 Price: $3.86 |
| 73 |
935-04054A |
FRICTION WHEEL 5.50OD This part replaces 935-04054. Price: $35.10 |
| 74 |
790-00174C |
Friction Wheel Plate This part replaces 790-00174. Price: $13.09 |
