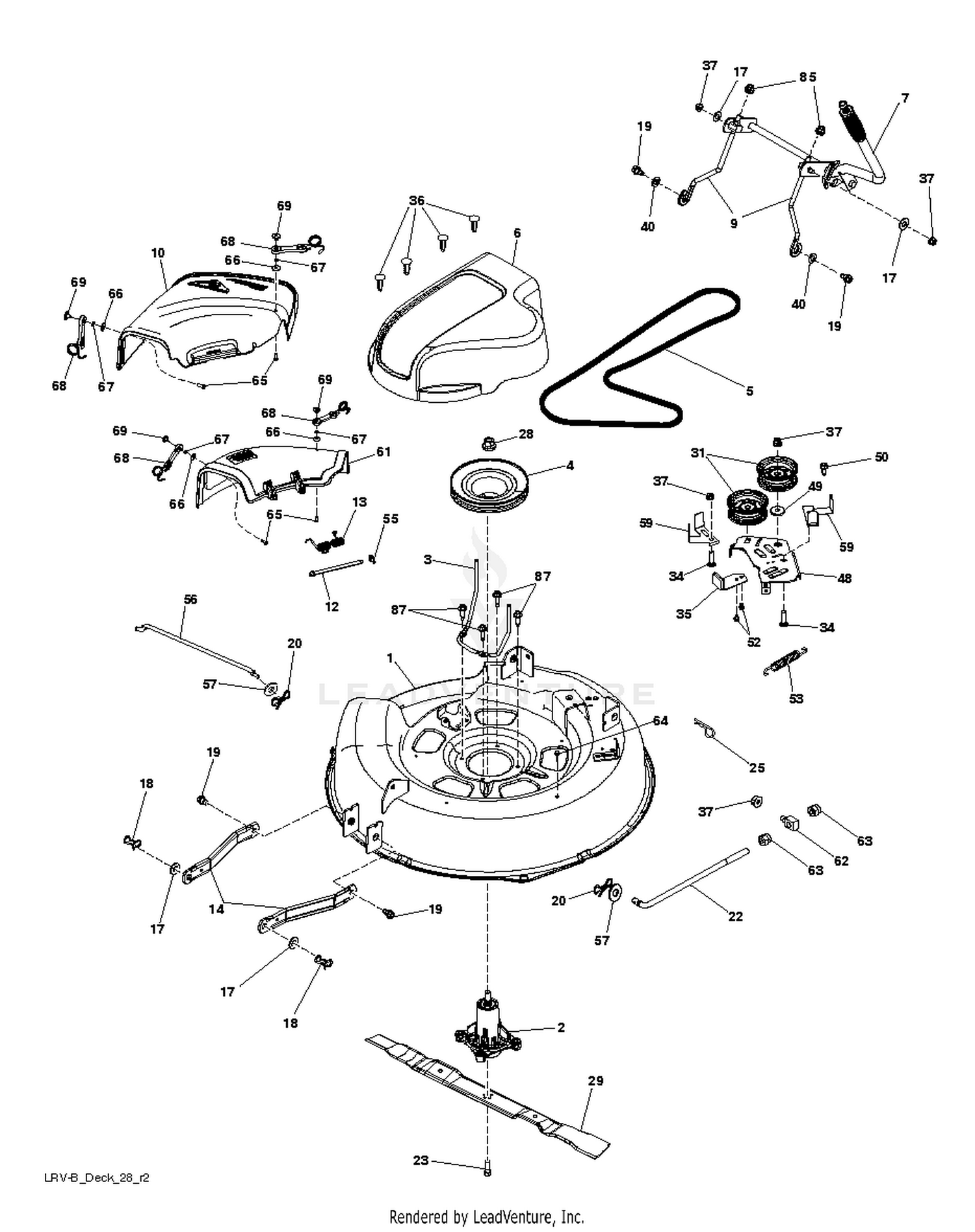

| Ref | Part Number | Description |
|---|
| 1 |
584468302 |
DECK.SVCX1.LRV.30 Price: $149.99 |
| 1 |
X-25-12 |
Washer Price: Call Us |
| 2 |
587253301 |
MANDREL.NONGREASEABLE.TALL Price: $32.99 |
| 2 |
X400-80 |
Spacer Price: Call Us |
| 3 |
231355 |
Pin-GovemorStop Price: Call Us |
| 3 |
584444502 |
KEEPER.LRV.GEN2.MANDREL.BELT Price: $3.99 |
| 4 |
235278 |
Retainer Rod Price: Call Us |
| 4 |
584444402 |
PULLEY.LRV.GENS.MANDREL Price: $8.99 |
| 5 |
235476 |
Bushing Price: Call Us |
| 5 |
584293701 |
V-BELT.MOWER.30.LRVB Price: $27.99 |
| 6 |
235496 |
Spring-Governor Price: Call Us |
| 6 |
532436863 |
COVER.MANDREL.30".LRV.(B) Price: $44.99 |
| 7 |
237022 |
Washer Price: Call Us |
| 7 |
586580901 |
LIFT.SUBASM.DECK Price: $37.99 |
| 8 |
A-235743 |
Gear, Governor Price: Call Us |
| 9 |
237455 |
Shaft, Governor Price: Call Us |
| 9 |
582342701 |
LINK.ASM.ADJUSTABLE Price: $6.99 |
| 10 |
532436456 |
DEFLECTOR.30".LRV.(B) Price: $49.99 |
| 10 |
A-237653 |
Lever, Governor Price: Call Us |
| 11 |
X-25-72 |
Washer Price: Call Us |
| 12 |
532436647 |
PIN.HINGE Price: $2.99 |
| 12 |
x-81-1 |
Nut Price: Call Us |
| 13 |
532437462 |
SPRING.DOUBLE.TORSION.SPRING Price: $5.99 |
| 13 |
X-776-1 |
Screw Price: Call Us |
| 14 |
587581702 |
FRONT.DECK.LINK.PNT Price: $3.99 |
| 14 |
X-25-58 |
Washer Price: Call Us |
| 15 |
X-25-63 |
Washer Price: Call Us |
| 16 |
X-25-102 |
Washer Price: Call Us |
| 17 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.99 |
| 17 |
X-132-9 |
Screw H.C. Price: Call Us |
| 18 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $1.99 |
| 18 |
X-102-3 |
Screw Price: Call Us |
| 19 |
48_237_02 |
Clamp, Wire Price: Call Us |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
235084 |
Spacer Price: Call Us |
| 20 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 21 |
235085 |
Spacer Price: Call Us |
| 22 |
236249 |
Bracket-Speed Control Price: Call Us |
| 23 |
584309301 |
SCREW.SEMS.7/16-20X1.HEX.HEAD Price: $1.99 |
| 25 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 28 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 29 |
532419273 |
BLADE, MULCH.LRV30 Price: $11.99 |
| 31 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $12.99 |
| 36 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 37 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 40 |
819171616 |
Washer 17/32 x 1-1/6 x 13 Gauge (AYP part number) Price: $5.99 |
| 48 |
586843601 |
ADJUSTABLE CLUTCHING ARM Price: $6.99 |
| 49 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 50 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 52 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 53 |
585049101 |
SPRING.LRVB.CLUTCH.ARM Price: $1.99 |
| 55 |
532437988 |
E-RING.5/16" Price: $2.99 |
| 56 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $17.99 |
| 57 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 59 |
532436858 |
GUARD.TUV.IDLER.42 Price: $2.99 |
| 61 |
532436455 |
COVER.MULCH.30".LRV.(B) Price: $11.99 |
| 62 |
532176205 |
TRUNNION Price: $3.99 |
| 63 |
532175994 |
NUT, LIFT LINK 7/16-20 Price: $3.99 |
| 64 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 65 |
871081010 |
SCREW Price: $3.99 |
| 66 |
819061216 |
WASHER Price: $2.99 |
| 67 |
810071000 |
LOCKWASHER Price: $2.99 |
| 68 |
532160793 |
LATCH ASSY Price: $7.99 |
| 69 |
532002029 |
NUT.WELD.#10-24 (2 2) Price: $2.99 |
| 85 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
