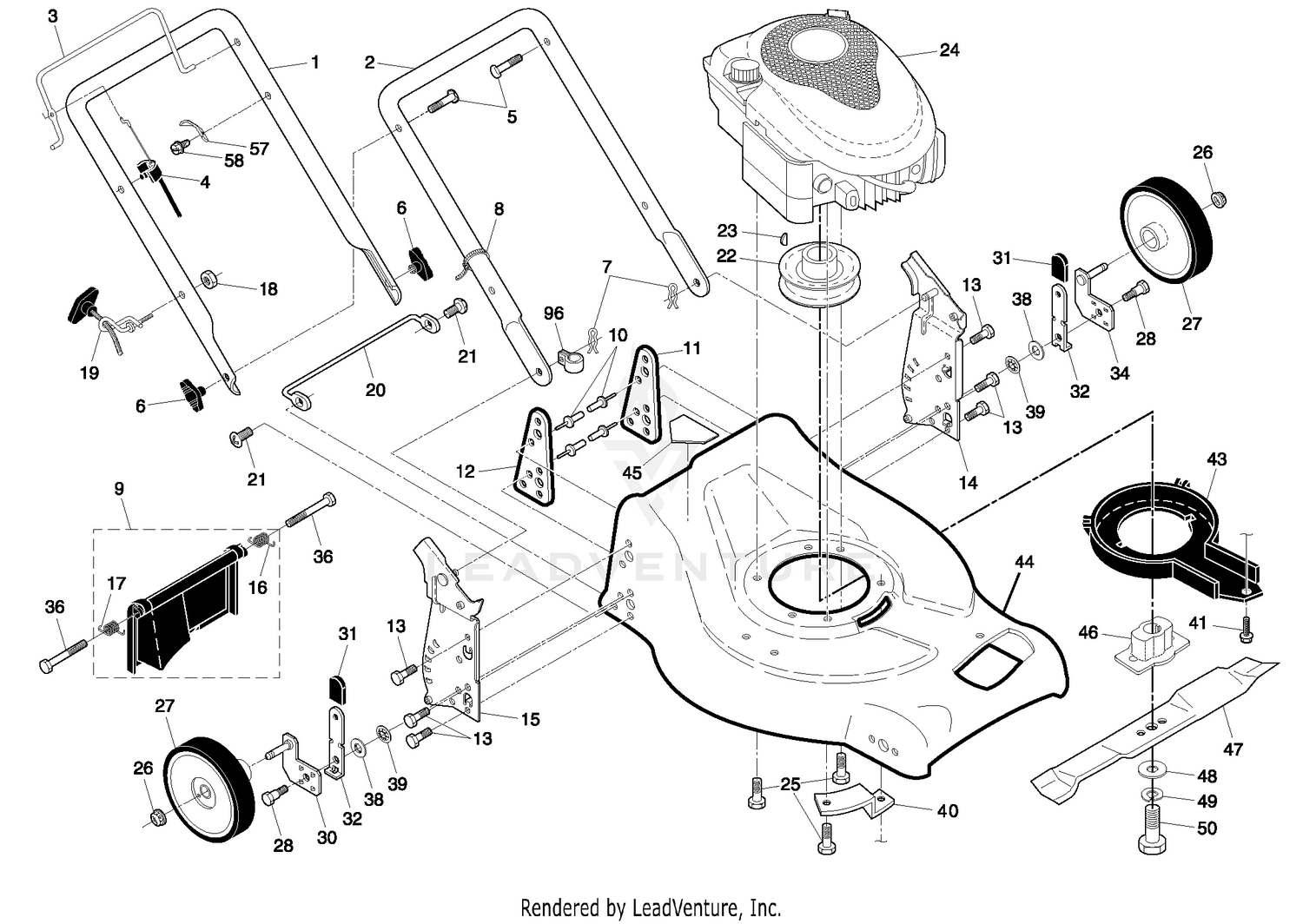

| Ref | Part Number | Description |
|---|
| 1 |
532198459 |
Upper Handle Price: $18.99 |
| 2 |
532175245 |
HANDLE.LOWER.21.FWGD.BLACK This part replaces 532153605. Price: $17.99 |
| 3 |
532198464 |
Control Bar Price: $11.99 |
| 4 |
532183567 |
Engine Zone Control Cable Price: $9.99 |
| 5 |
532191574 |
Handle Bolt Price: $1.99 |
| 6 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $1.99 |
| 7 |
532051793 |
Hairpin Cotter Price: $3.99 |
| 8 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $3.99 |
| 10 |
532128415 |
Pop Rivet Price: $2.99 |
| 11 |
532182538 |
Support Bracket, LH Price: $2.99 |
| 12 |
532175070 |
RH SUPPORT BARCKET This part replaces 532182539. Price: $3.99 |
| 13 |
817060410 |
Screw 1/4-20 x 5/8 Price: $3.99 |
| 14 |
532190154 |
Handle Bracket Assembly, LH Price: Call Us |
| 15 |
532190153 |
Handle Bracket Assembly, RH Price: Call Us |
| 16 |
532180071 |
Spring, Rear Door, LH Price: $3.99 |
| 17 |
532180072 |
Spring, Rear Door, RH Price: $3.99 |
| 18 |
539976978 |
NUT.1/4C.NYLOC This part replaces 532132004. Price: $1.49 |
| 19 |
532194788 |
Rope Guide Price: $3.99 |
| 20 |
532179205 |
Foot Guard, C.E. Price: Call Us |
| 21 |
532054583 |
Screw, Tapping 1/4-20 x 1/2 Price: $3.99 |
| 22 |
532184941 |
Engine Pulley Price: $14.99 |
| 23 |
532187723 |
Hi-Pro Key Price: $3.99 |
| 25 |
532150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 Price: $3.99 |
| 26 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $2.69 |
| 27 |
532412173 |
WHEEL.8X1.75.5SPK.RAD3.MARIG This part replaces 532197985. Price: $11.99 |
| 28 |
532189312 |
Shoulder Bolt 5/16-18 x .33 Price: Call Us |
| 30 |
532195435 |
Axle Arm Assembly, Rear, RH Price: Call Us |
| 31 |
532087877 |
Selector Knob Price: $2.99 |
| 32 |
532190157 |
Selector Spring Price: $3.99 |
| 34 |
532195436 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 36 |
532184193 |
Bolt, Hex Head Price: $3.99 |
| 38 |
532176185 |
Washer Price: $3.99 |
| 39 |
532176235 |
Pushnut Price: $3.99 |
| 40 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $3.99 |
| 41 |
532192325 |
Screw Price: $3.99 |
| 43 |
532188784 |
Debris Shield Price: $6.99 |
| 45 |
581579101 |
This part replaces 532182166. Price: $4.99 |
| 46 |
532184632 |
Blade Adapter Price: $5.99 |
| 47 |
539113233 |
BLADE,21".ZONE.CE This part replaces 532199377. Price: $18.99 |
| 48 |
532851074 |
Hardened Washer Price: $2.49 |
| 49 |
539990118 |
WASHER.3/8 This part replaces 532850263. Price: $1.49 |
| 50 |
532851084 |
Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8 Price: $2.69 |
| 57 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $3.99 |
| 58 |
532750634 |
Screw, Threaded 10-24 x 1/2 Price: $2.99 |
| 96 |
532197991 |
Clip, Cable Price: $3.99 |
| 96 |
532403247 |
Operator's Manual, European Price: Call Us |
| 96 |
532403248 |
Operator's Manual, Scandinavian Price: Call Us |
