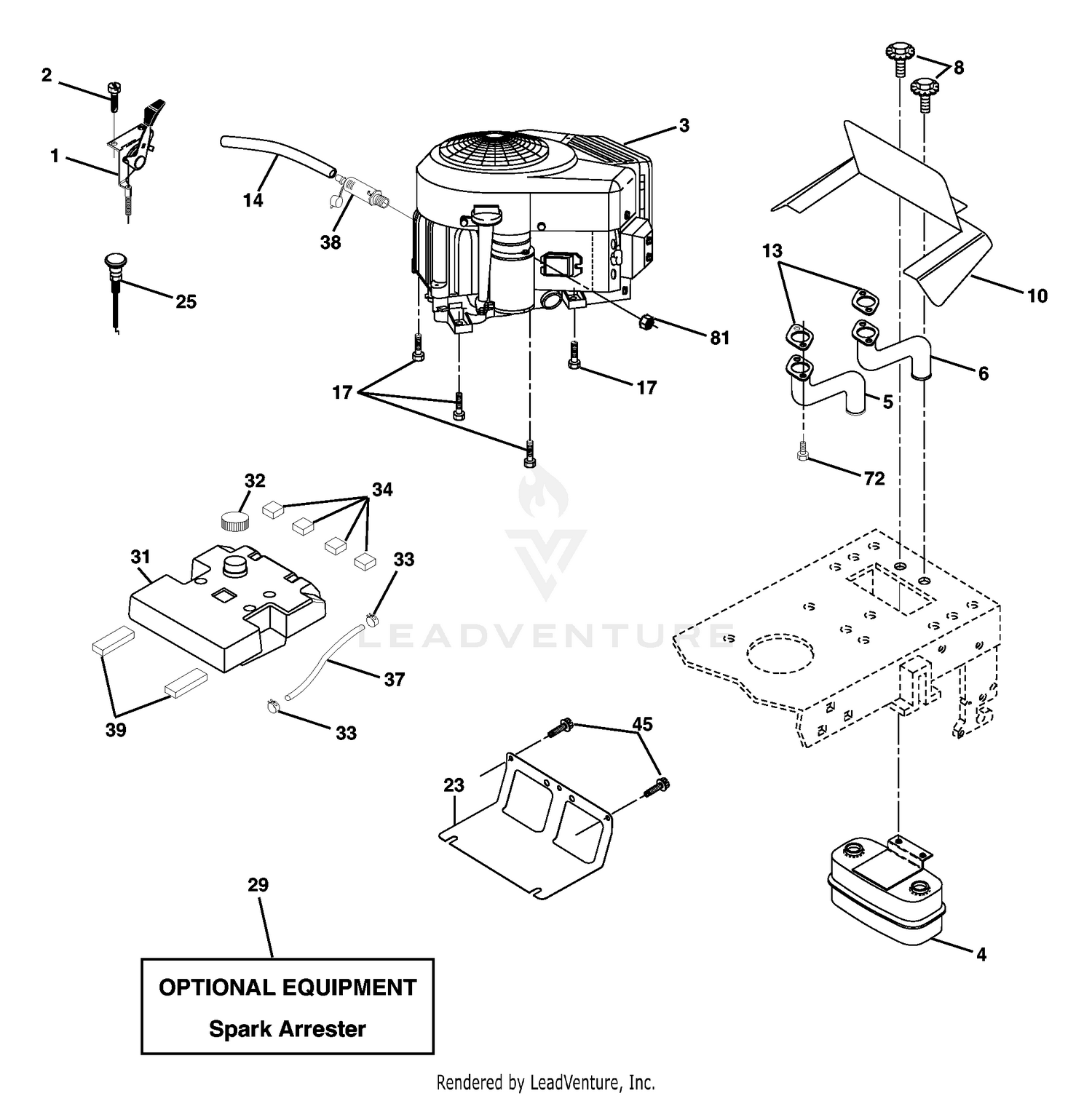

| Ref | Part Number | Description |
|---|
| 1 |
175437X428 |
Control, Throttle/Choke Price: Call Us |
| 1 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
191611 |
Screw Hex Single Lead 10 x 3/4 Price: Call Us |
| 2 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 3 |
28-9570-03 |
LEVER-PUMP Price: $264.06 |
| 4 |
149723 |
Muffler Price: Call Us |
| 4 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 5 |
159955 |
Tube Exhaust LH Price: Call Us |
| 5 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 6 |
160589 |
Tube Exhaust RH Price: Call Us |
| 6 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 7 |
3219-2 |
NUT-HEX Price: $0.37 |
| 8 |
171877 |
Bolt 5/16-18 unc x 3/4 w/Sems Price: Call Us |
| 8 |
29-6120-03 |
PUMP PLATE ASM Price: $93.02 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
162797 |
Shield Browning Price: Call Us |
| 10 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 11 |
322-17 |
SCREW-HH Price: $2.62 |
| 12 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 13 |
165391 |
Muffler Gasket Price: Call Us |
| 13 |
321-6 |
SCREW-HH Price: $0.25 |
| 14 |
148456 |
Tube Oil Drain Price: Call Us |
| 14 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
251-259 |
BEARING-BALL Price: $13.67 |
| 16 |
3210-7 |
SCREW-HH Price: $0.61 |
| 17 |
17060624 |
Screw 3/8-16 x 1-1/2 Price: Call Us |
| 17 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 19 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 20 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 21 |
3217-16 |
NUT-HEX Price: $0.25 |
| 23 |
169837 |
Shield, Browning/Debris Guard Price: Call Us |
| 25 |
187767X428 |
Control Choke Price: Call Us |
| 29 |
137180 |
Arrester, Spark Price: Call Us |
| 31 |
157103 |
Tank, Fuel Price: Call Us |
| 32 |
161696 |
Cap Gauge, Fuel Price: Call Us |
| 33 |
123487X |
Clamp, Hose Blk Price: Call Us |
| 34 |
106082X |
Pad Spacer 1x1x1 Price: Call Us |
| 37 |
8543R |
Line, Fuel Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Easy Price: Call Us |
| 39 |
109227X |
Pad Idler 1.75 x .75 x .06 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 72 |
183906 |
Screw 5/16-18 x 1 Price: Call Us |
