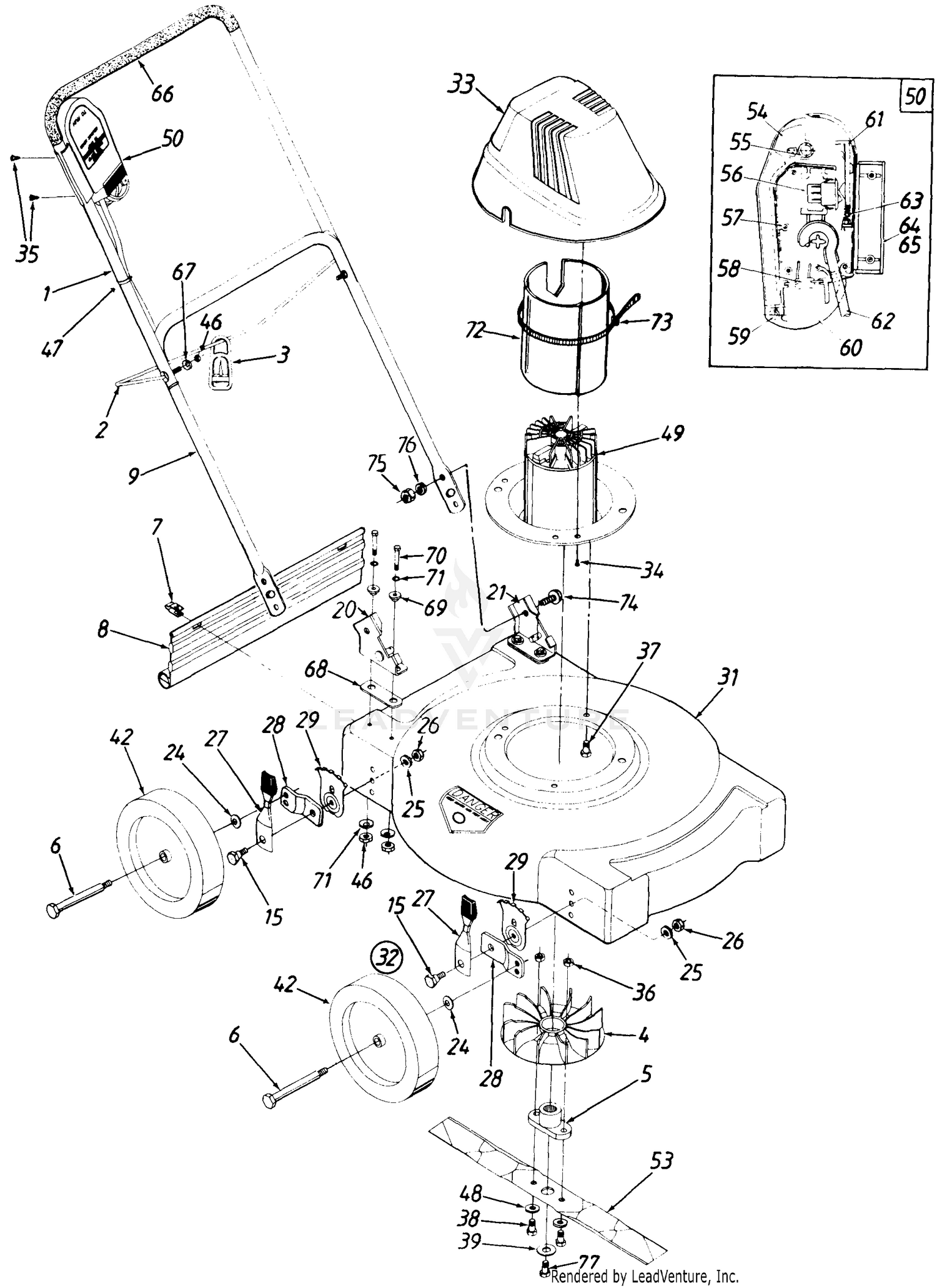

| Ref | Part Number | Description |
|---|
| 1 |
749-0884 |
UPPER HANDLE Not Available Price: |
| 2 |
747-1094 |
GUIDE ROD Not Available This part replaces 747-0790. Price: |
| 3 |
725-1590 |
CORD MINDER Not Available Price: |
| 4 |
731-1270 |
FAN Not Available Price: |
| 5 |
748-0356 |
BLADE ADAPTER Not Available Price: |
| 6 |
738-0102 |
Axle Bolt Price: $9.22 |
| 7 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 8 |
731-08724 |
Rear Flap Price: Call Us |
| 9 |
749-0928A-0637 |
Lower Handle This part replaces 749-0372B. Price: $29.67 |
| 15 |
738-0507B |
SHOULDER SCREW Price: $3.86 |
| 20 |
682-3012 |
BRACKET ASSEMBLY-HDLE (RH) Not Available Price: |
| 21 |
682-3011 |
BRACKET ASSEMBLY-HDLE (LH) Not Available Price: |
| 24 |
736-0105 |
Bell-Wash .38" I.D. x .88" O.D. Price: $3.96 |
| 25 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 27 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 28 |
15262B |
Pivot Bar Price: $13.59 |
| 29 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 32 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 33 |
731-1263 |
COVER-MOTOR BLACK Not Available Price: |
| 34 |
710-1128 |
SCREW #10-16 x .750 Not Available Price: |
| 35 |
710-1150 |
SCREW #7-19 C 1.0 Not Available Price: |
| 36 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 37 |
910-1006 |
HEX SCREW 3/8 x 7/8 Not Available This part replaces 710-1006. Price: |
| 38 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 39 |
736-0452 |
Bell-Wash 396" I.D. x 1.14" O.D. Price: $4.05 |
| 42 |
N/A |
Wheel Ass'y Comp |
| 46 |
712-0324 |
Hex Top L-Nut 1/4-20 Thd. Price: $3.38 |
| 47 |
726-0303 |
TIE-PLASTIC Not Available Price: |
| 48 |
736-0331 |
Bell-Wash. 3/8" I.D. Price: $3.50 |
| 49 |
818-60013 |
MOTOR & SWITCH ASS'Y. COMP. Not Available Price: |
| 50 |
624-0032 |
CORD & SWITCH ASS'Y COMP Not Available Price: |
| 54 |
731-1210 |
HANDLE-SWITCH BOX Not Available Price: |
| 55 |
732-0679 |
SPRING Not Available Price: |
| 56 |
725-1565 |
SWITCH Not Available Price: |
| 57 |
710-1147 |
SCREW Not Available Price: |
| 59 |
932-0680 |
PLUG RETAINER SPRING Not Available This part replaces 732-0680. Price: |
| 60 |
731-1211 |
RETAINER-PLUG BLACK Not Available Price: |
| 61 |
731-1198 |
LATCH-SWITCH BOX Not Available Price: |
| 63 |
732-0681 |
SPRING-LATCH (SW-B Not Available Price: |
| 64 |
731-1208 |
HOUSING-UPPER SWIT Not Available Price: |
| 67 |
736-0486 |
SADDLE WASHER Not Available Price: |
| 68 |
721-0309 |
STRIP-INSULATOR Not Available Price: |
| 69 |
731-1219 |
LUG INSULATOR Not Available Price: |
| 71 |
736-3090 |
Fl-Wash. 26" I.D x .72" O.D. Price: $5.79 |
| 72 |
721-0311 |
INSULATOR-MOTOR HS Not Available Price: |
| 73 |
726-0230 |
Cable Tie This part replaces 726-0209. Price: $23.95 |
| 74 |
710-0323 |
Phillips Hd. Scr 5/16 x .75" Lg. Price: $4.02 |
| 77 |
710-1251 |
SCREW 3/8-24 x 2.50 GR8 Not Available Price: |
