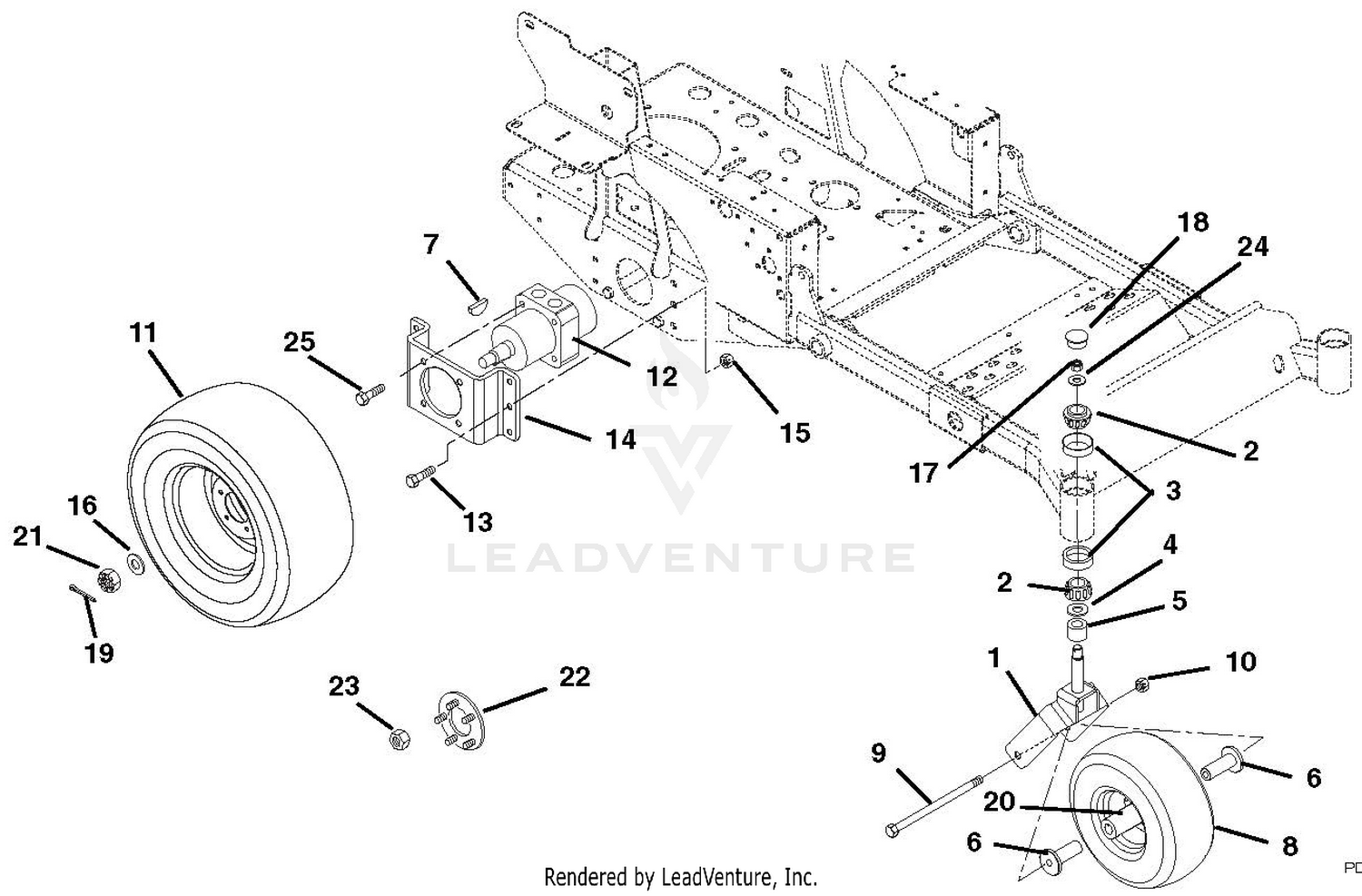

| Ref | Part Number | Description |
|---|
| 1 |
59208400 |
KIT, FRT FORK(4902) SERVICE This part replaces 00490251. Price: $163.45 |
| 2 |
05406900 |
BRG-CONE 1.0X.58 Price: $17.95 |
| 3 |
05407000 |
BRG-CUP1.980X.420 Price: $16.45 |
| 4 |
00531400 |
BEARING SEAL 1.5 X 2 X .18 Price: $9.45 |
| 5 |
00531500 |
SPACER 1.005X1.5075X.375 Price: $7.45 |
| 6 |
00675300 |
SPACER, FRONT WHEEL Price: $7.95 |
| 8 |
07101111 |
ASM, WHL/TIRE 13X5.00-6 - CHARCOAL GRAY - K404 TREAD This part replaces 07100218. Price: $115.45 |
| 8 |
07101609 |
TIRE- 13X5.00-6 SMOOTH This part replaces 07100219. Price: $60.45 |
| 9 |
05902023 |
BLT, HEX .50-13X7.50 G5 ZCC This part replaces 05978200. Price: $7.45 |
| 10 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 12 |
05015500 |
MOTOR, HYD WHEEL This part replaces 04915500. Price: $741.95 |
| 13 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 14 |
09296600 |
BRKT, WHEEL MOTOR Price: $55.95 |
| 15 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 16 |
06401016 |
WSHR, FLT .755X1.375X.062 ZCC This part replaces 06441500. Price: $3.45 |
| 17 |
06536900 |
NUT-JAM CTRLK .75-16 YWZC Price: $5.45 |
| 18 |
00456800 |
CAP, DUST Price: $16.45 |
| 21 |
06528300 |
NUT-HEX-SL .75-20 Price: $12.95 |
| 24 |
06436900 |
WSHR-FL-STL .880X1.250X.062YWZ Price: $1.95 |
