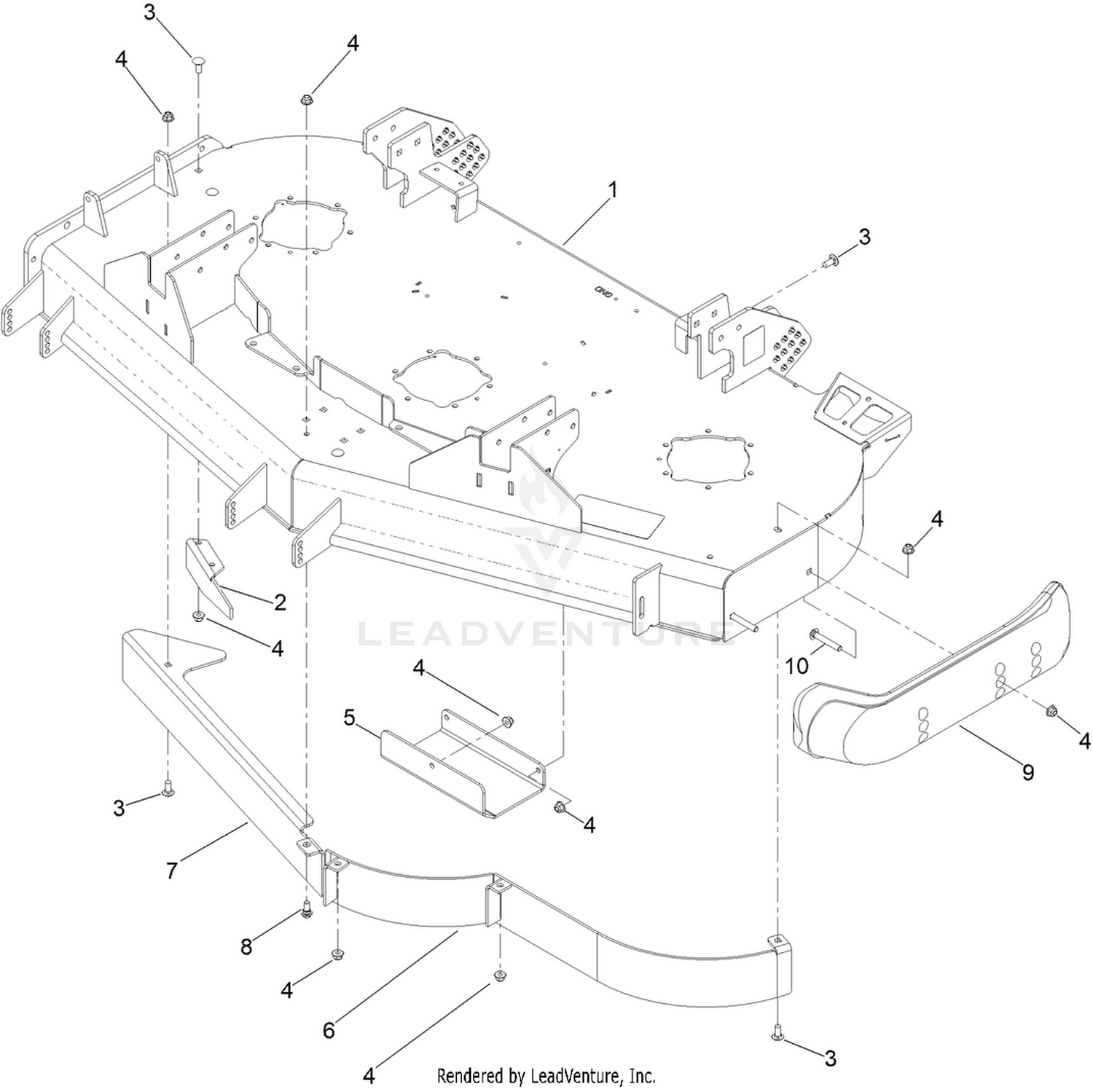

Deck and Baffle Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-0941SP | SERVICE DECK 60" SD Price: Call Us |
| 2 | 106-3216-01 | BAFFLE-DISCHARGE Price: $23.99 |
| 3 | 3231-27 | SCREW-CARR Price: $0.54 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 5 | 137-5918-0P | BRACKET-SKID This part replaces 137-5918-01. Price: $44.52 |
| 6 | 138-7322-01 | FRONT-BAFFLE Price: $313.12 |
| 7 | 138-6051-01 | PLATE-BAFFLE Price: $100.99 |
| 8 | 94-7582 | BOLT-SHOULDER Price: $3.09 |
| 9 | 112-1479 | SKID-BUMPER, DECK Price: $95.09 |
