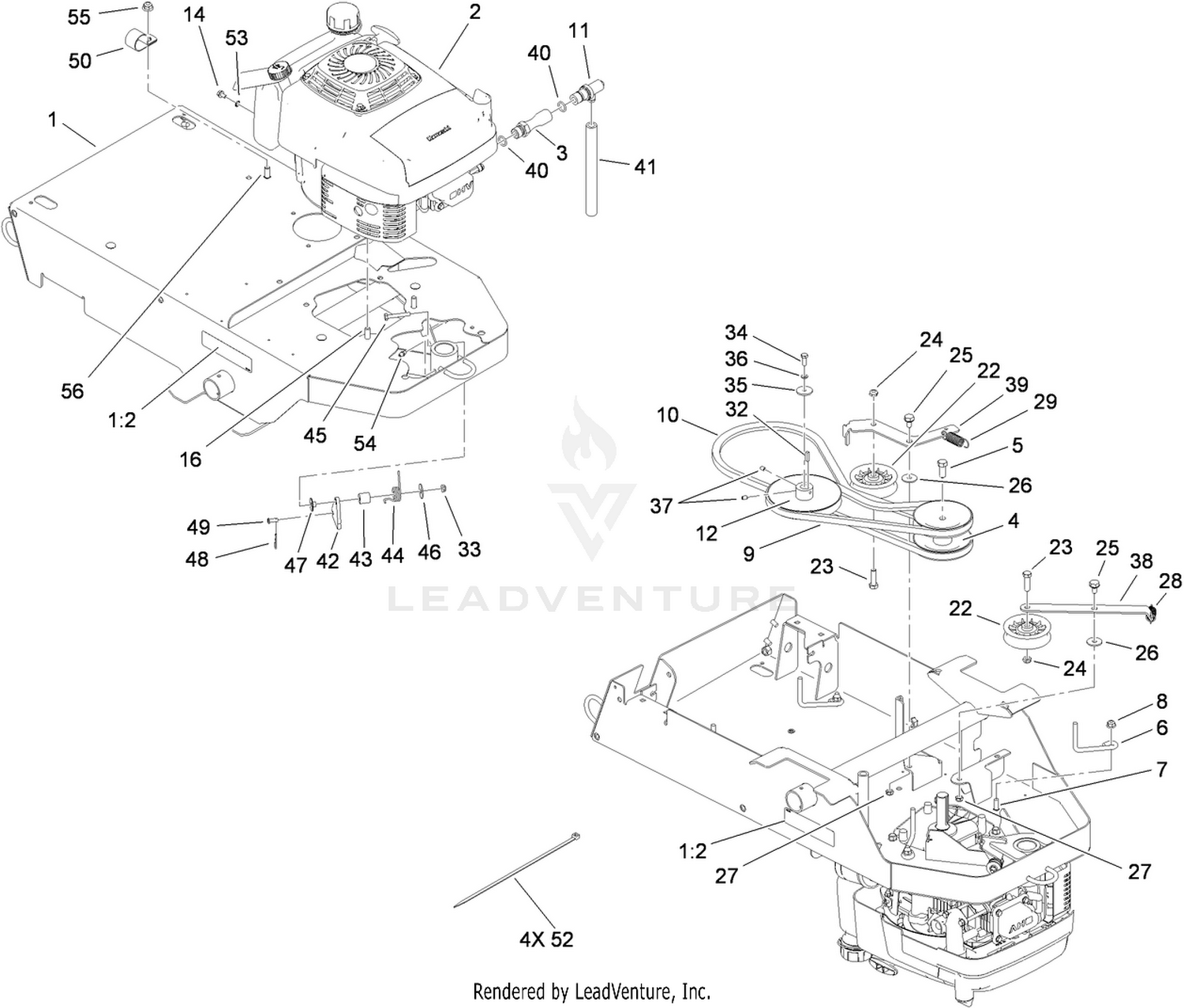

| Ref | Part Number | Description |
|---|
| 1 |
107-0534 |
DECK ASM Price: $1,423.86 |
| 2 |
112-6759 |
ENGINE-KAWASAKI, 6 HP GAS Price: $655.71 |
| 3 |
108-0263 |
EXTENSION-DRAIN Price: $87.63 |
| 4 |
108-0137 |
PULLEY-ENGINE Price: $151.93 |
| 5 |
3212-4 |
SCREW-HH Price: $2.73 |
| 6 |
93-3855 |
GUIDE-BELT, RH Price: $12.99 |
| 7 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 8 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 9 |
703621 |
V-BELT (14790) Price: $14.99 |
| 10 |
108-0172 |
BELT-V Price: $51.82 |
| 11 |
108-0223 |
VALVE-DRAIN, OIL Price: $11.68 |
| 12 |
68-0180 |
PULLEY-TRANSMISSION Price: $94.99 |
| 14 |
104-2628 |
SCREW-HWH Price: $0.75 |
| 16 |
95-1726 |
SCREW-TAPTITE Price: $1.79 |
| 22 |
104-4160 |
PULLEY-IDLER Price: $64.99 |
| 23 |
323-7 |
SCREW-HH Price: $0.65 |
| 24 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 25 |
37-8770 |
BOLT-SHOULDER Price: $1.02 |
| 26 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 27 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 28 |
107-1045 |
SPRING-EXTENSION Price: $4.89 |
| 29 |
702906 |
SPRING-EXTENSION Price: $14.54 |
| 32 |
10-8040 |
KEY-SQUARE Price: $2.59 |
| 33 |
104-7201 |
NUT-HF Price: $0.69 |
| 34 |
329-23 |
SCREW-HH Price: $5.39 |
| 35 |
1-503033 |
WASHER-RETAINER, PULLEY Price: $3.89 |
| 36 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 37 |
3245-41 |
SCREW-HSH Price: $2.09 |
| 38 |
108-0175 |
BRACKET-IDLER Price: $16.67 |
| 39 |
108-0186 |
BRACKET-IDLER Price: $38.46 |
| 40 |
237-69 |
O-RING Price: $5.72 |
| 41 |
99-3085 |
HOSE-HINGE Price: $12.59 |
| 42 |
108-0339 |
DETENT-CASTER Price: $11.66 |
| 43 |
108-0344 |
SPACER Price: $7.33 |
| 44 |
108-0097 |
SPRING-TORSION Price: $29.85 |
| 45 |
321-10 |
SCREW-HH Price: $1.29 |
| 46 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 47 |
108-0354 |
BUSHING-FLANGE Price: $5.72 |
| 48 |
9335044 |
PIN-HAIR Price: $1.29 |
| 49 |
60-1730 |
PIN-CLEVIS Price: $0.65 |
| 50 |
2412-82 |
CLAMP-R Price: $3.94 |
| 52 |
1-303287 |
TIE-CABLE Price: $0.69 |
| 53 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 54 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 55 |
104-8301 |
NUT-HF, NI Price: $1.09 |
