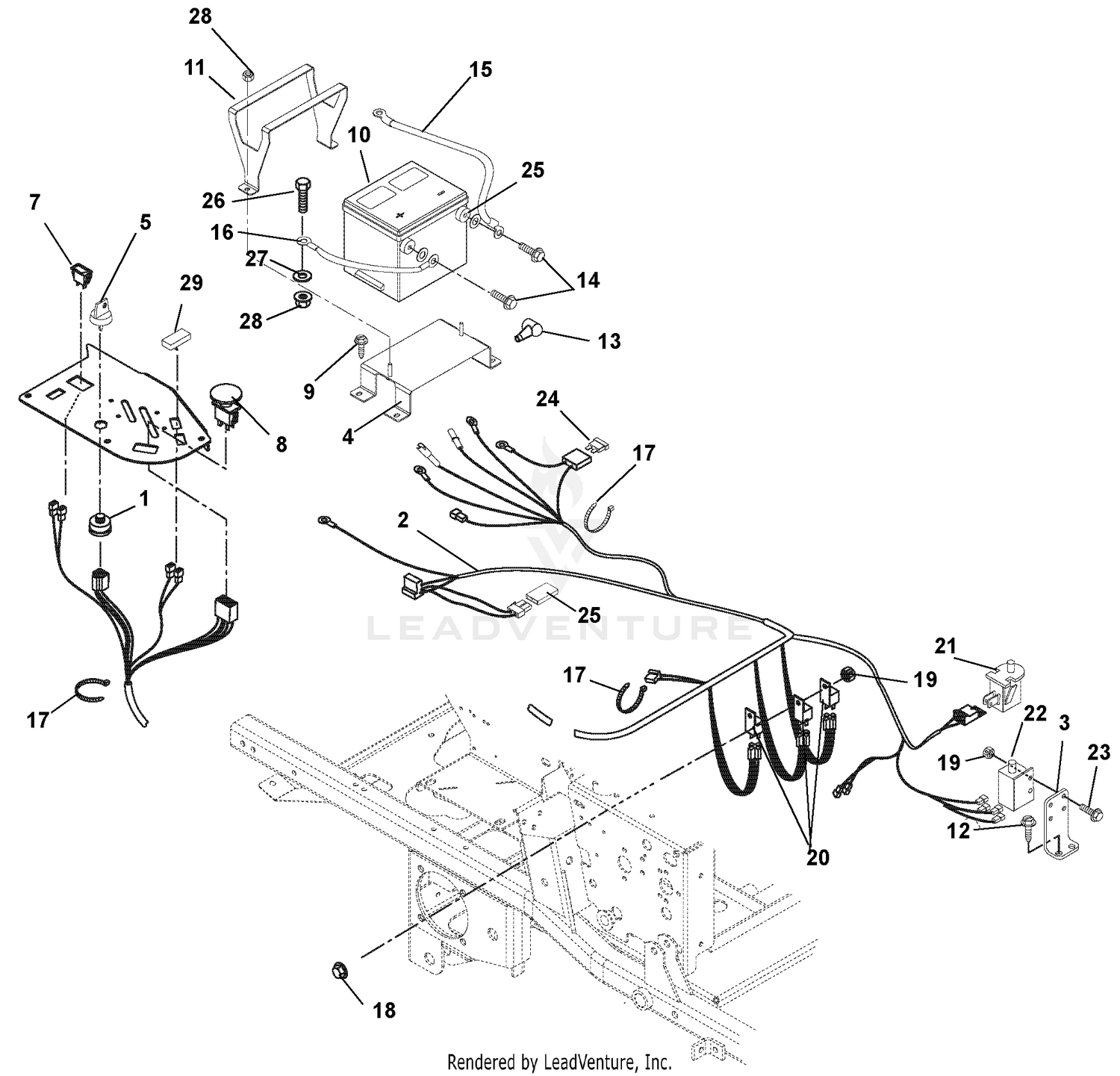

| Ref | Part Number | Description |
|---|
| 1 |
04331600 |
SWITCH, IGNITION This part replaces 00464000. Price: $41.95 |
| 2 |
04294000 |
HARNESS-WIRE PM200 VERT. A/C Price: $149.95 |
| 3 |
09275851 |
MOUNT, SAFETY SWITCH Price: $17.45 |
| 4 |
00976351 |
PLATE, BATTERY MNT 200 XDZ LPG Price: $21.95 |
| 5 |
09287000 |
KEY, W/ SHIELD Price: $14.95 |
| 6 |
21510400 |
IGNITION KEY SET Price: $9.45 |
| 7 |
09497400 |
HOUR METER This part replaces 03966800. Price: $22.45 |
| 8 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 9 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 10 |
04087300 |
BATTERY-GROUP 70-540 CCA Price: $162.20 |
| 11 |
04089351 |
BRACKET-BATTERY HOLD-DOWN Price: $56.45 |
| 12 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 13 |
00525800 |
BOOT, BATTERY TERMINAL-RED Price: $7.45 |
| 14 |
00526400 |
BATT TERMINAL SCREW Price: Call Us |
| 15 |
00977300 |
CABLE,STARTER 18.O RED Price: $15.70 |
| 16 |
00977400 |
CABLE,GROUND 18.0 BLACK Price: $15.70 |
| 17 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 18 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 19 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 21 |
02754100 |
SWITCH- SNAP MTG N.O. Price: $8.45 |
| 22 |
03606600 |
SWITCH- DOUBLE POLE N.O./N.O. Price: $15.45 |
| 23 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 25 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
| 26 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 27 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 28 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
