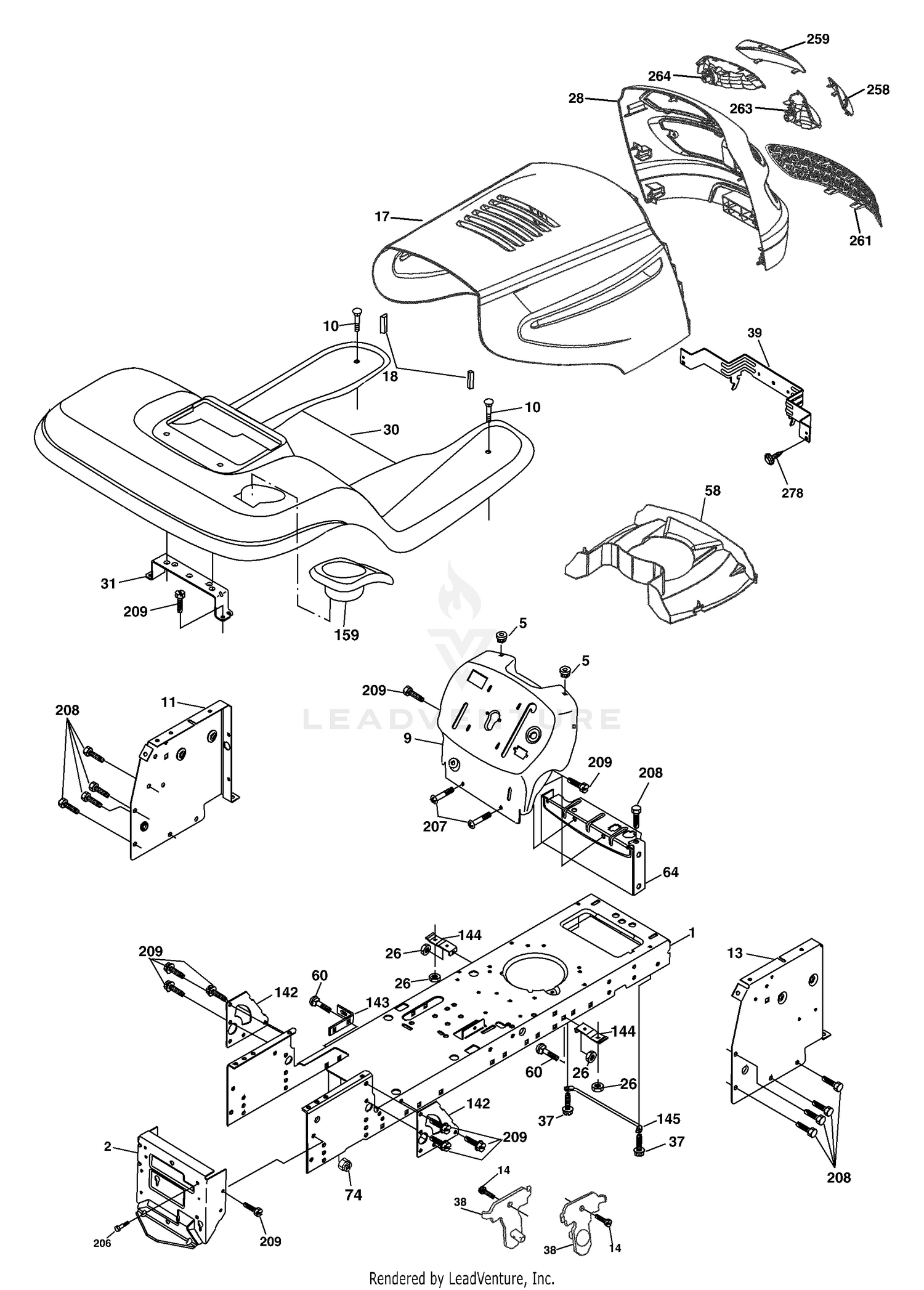

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
98-7551 |
FUEL CAMSHAFT ASM Price: $1,207.48 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 9 |
187846X012 |
Dash Price: Call Us |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 13 |
175255 |
Panel Dash Rh Price: Call Us |
| 13 |
98-7583 |
BEARING-BALL Price: $66.26 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 14 |
98-7584 |
STOPPER Price: $2.66 |
| 15 |
100-9195 |
BOLT This part replaces 98-7585. Price: $0.72 |
| 16 |
98-7586 |
COVER-FUEL, CAMSHAFT Price: $83.51 |
| 17 |
183393X428 |
Hood Price: Call Us |
| 17 |
98-7587 |
COLLAR Price: $13.90 |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 18 |
98-7588 |
GASKET Price: $3.84 |
| 19 |
98-7589 |
CIRCLIP-EXTERNAL Price: $12.39 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 30 |
188572X428 |
Fender Footrest Price: Call Us |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 58 |
189350 |
Duct Air Price: Call Us |
| 60 |
72140606 |
Bolt RDHD Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self Thd Wsh - HD 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Step-thru Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 217 |
179132X428 |
Console Fuel Window Price: Call Us |
| 258 |
183835X599 |
Lens Grille Pro RH Price: Call Us |
| 259 |
183834X599 |
Lens Grille Pro LH Price: Call Us |
| 261 |
183829Z428 |
Insert Grille Price: Call Us |
| 263 |
183832 |
Bezel Grille LH Price: Call Us |
| 264 |
183833 |
Bezel Grille RH Price: Call Us |
