| Ref | Part Number | Description |
|---|
| 1 |
92-7531-03 |
TUBE-PUMP CONTROL This part replaces 92-7531. Price: $139.90 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
323-9 |
SCREW-HH Price: $1.29 |
| 6 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 12 |
92-7608-03 |
BRACKET-SPRING This part replaces 92-7608. Price: $16.86 |
| 13 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 14 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 15 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 16 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 17 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 18 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 19 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 20 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 21 |
233-42 |
KNOB Price: $12.88 |
| 22 |
75-6490 |
LEVER ASM Price: $78.45 |
| 23 |
84-3500 |
DECAL - SPEED CONTROL Price: $13.52 |
| 23 |
93-6699 |
DECAL-FAST / SLOW Price: $18.07 |
| 24 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
32128-20 |
NUT-HF Price: $0.99 |
| 27 |
322-3 |
SCREW-HH Price: $0.79 |
| 28 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 29 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 30 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 31 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 32 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 33 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 34 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 35 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 36 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 37 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 38 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 39 |
256-42 |
BUSHING Price: $7.03 |
| 40 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 41 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 42 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 43 |
60-5700 |
SPRING Price: $27.02 |
| 44 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 45 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 46 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 47 |
5-0652 |
SPACER Price: $5.35 |
| 48 |
3290-378 |
TIE-CABLE Price: $0.79 |

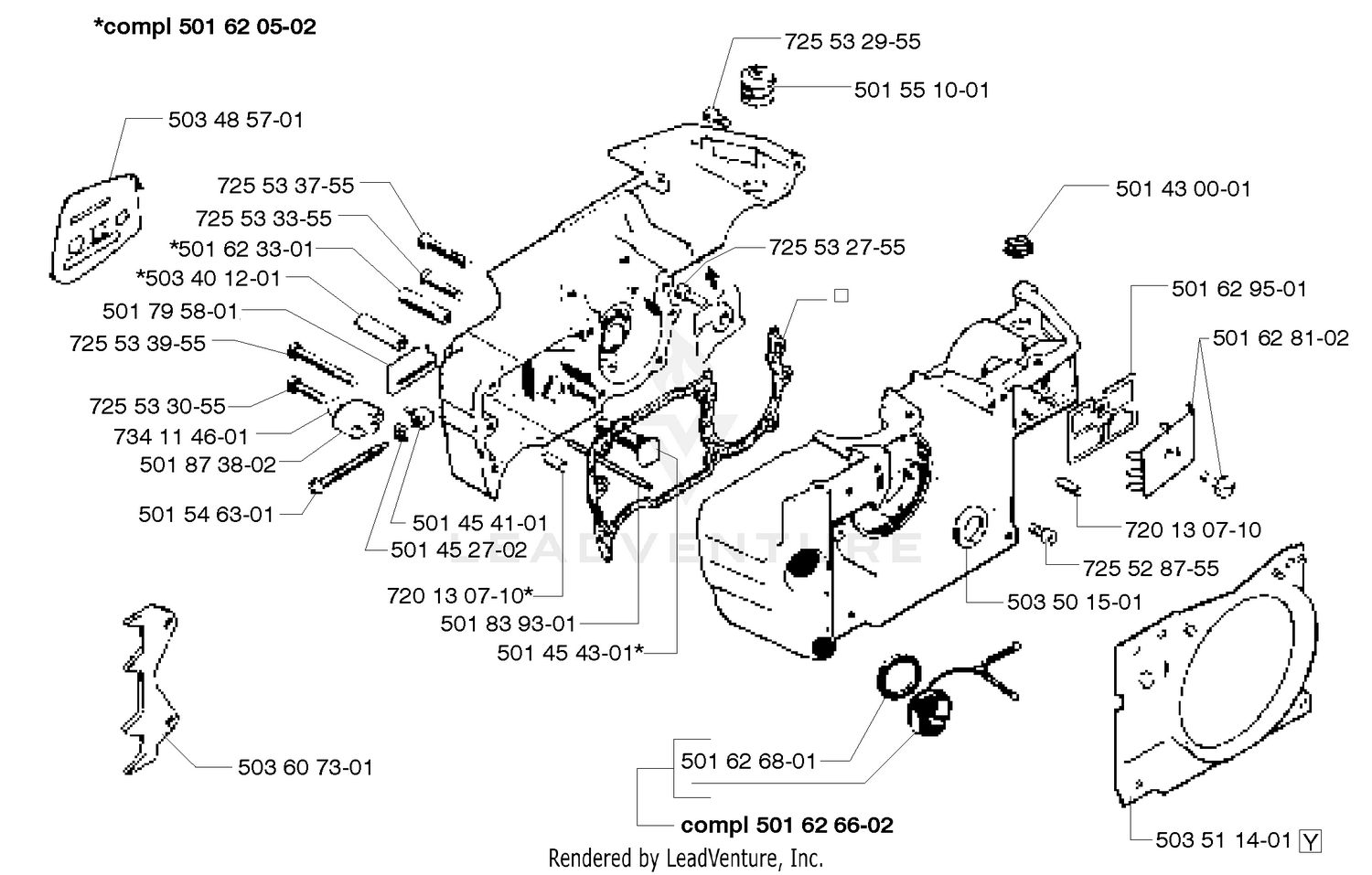

| 501430001 |
501430001 |
GROMMET Price: $3.99 |
| 501452702 |
501452702 |
NUT Price: $3.99 |
| 501454101 |
501454101 |
PAWL Price: $5.99 |
| 501454301 |
501454301 |
BOLT Price: $4.99 |
| 501546301 |
501546301 |
SCREW Price: $4.99 |
| 501551001 |
501551001 |
SEAL Price: $7.99 |
| 501620502 |
501620570 |
CRANKCASE This part replaces 501620502. Price: $215.02 |
| 501623301 |
501623301 |
GUIDE BAR LOCATING PIN Price: $3.99 |
| 501626602 |
501626602 |
TANK CAP Price: $11.99 |
| 501626801 |
501626801 |
OILCAP GASKET Price: $3.99 |
| 501628102 |
501628102 |
COVER Price: $12.99 |
| 501629501 |
501629501 |
PREFILTER Price: $6.99 |
| 501795801 |
501795801 |
GUIDE Price: $4.99 |
| 501839301 |
501839301 |
HOSE Price: $2.99 |
| 501873802 |
501873802 |
CHAIN CATCHER Price: $6.99 |
| 503401201 |
503401201 |
SPRING PIN CPL Price: $8.99 |
| 503485701 |
503485701 |
PROTECTION PLATE Price: $6.90 |
| 503501501 |
503260202 |
SEALING RING This part replaces 503501501. Price: $9.99 |
| 503607301 |
503607301 |
FELLING DOG Price: $14.23 |
| 720130710 |
720130752 |
Pins This part replaces 720130710. Price: $4.99 |
| 725528755 |
725528755 |
SCREW MC6S 4X8 Price: $2.99 |
| 725532755 |
725532755 |
SCREW MC6S 5X12 Price: $2.99 |
| 725532955 |
725532955 |
SCREW MC6S 5X16 Price: $6.99 |
| 725533055 |
725533055 |
SCREW MC6S 5X18 Price: $1.99 |
| 725533355 |
725533355 |
SCREW MC6S 5X25 Price: $3.99 |
| 725533755 |
725533755 |
SCREW MC6S 5X35 Price: $3.99 |
| 725533955 |
725533955 |
SCREW MC6S 5X40 Price: $3.99 |
| 734114601 |
819070816 |
Washer 7/32 x 1/2 x 16 Gauge This part replaces 734114601. Price: $5.99 |
