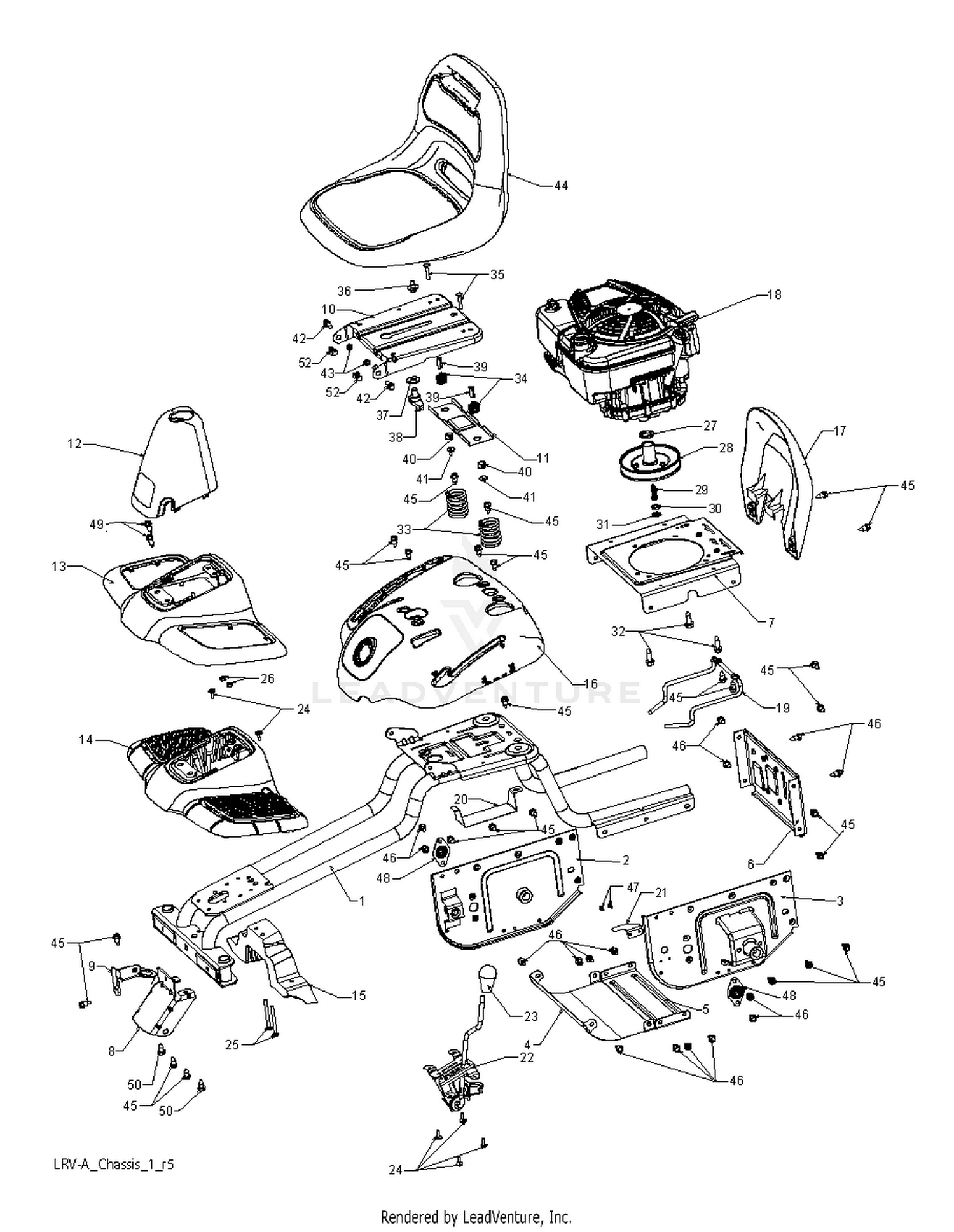

| Ref | Part Number | Description |
|---|
| 1 |
3-9126 |
DISCONTINUED Price: Call Us |
| 1 |
532428048 |
CHASSIS.WLD.26".LRV Price: $129.99 |
| 2 |
5-4660 |
DISCONTINUED Price: Call Us |
| 3 |
3296-7 |
NUT-LOCK Price: $0.34 |
| 4 |
5-2615 |
DISCONTINUED Price: Call Us |
| 5 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER This part replaces 231-41. Price: $147.85 |
| 5 |
532428110 |
STRAP.CROSS.FRICTION.DRIVE Price: $9.99 |
| 6 |
242-44 |
DISCONTINUED Price: Call Us |
| 6 |
532428109 |
COVER, FRICTION DRIVE Price: $14.99 |
| 7 |
532428040 |
PLATE, ENGINE Price: $24.99 |
| 9 |
532428856 |
BRACKET, STEERING SUPPORT Price: $4.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 11 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $4.99 |
| 12 |
583513801 |
DUST.BOOT.LRV(INTERNATIONAL) This part replaces 532436891. Price: $54.99 |
| 13 |
532436496 |
FOOTREST.AESTHETIC.WE.GRN.LRV Price: $32.99 |
| 14 |
532428250 |
STRUCTURE, FOOT REST Price: $49.99 |
| 15 |
532428249 |
SUPPORT, FOOT REST Price: $24.99 |
| 16 |
532436497 |
FENDER.CNTRL.PNL.WE.GRN.LRV Price: $74.99 |
| 17 |
532428348 |
GUARD.ENGINE.LRV Price: $17.99 |
| 19 |
532428986 |
KEEPER, BELT Price: $6.99 |
| 20 |
532428046 |
BRACKET, BATTERY LRV Price: $3.99 |
| 21 |
532429815 |
LEVER, SWITCH Price: $2.99 |
| 22 |
532428826 |
CABLE.ASM.CLUTCH.W/BRACKET Price: $74.99 |
| 23 |
532149846 |
KNOB.OVAL.CUSTOM.BLACK Price: $5.99 |
| 24 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 25 |
872140424 |
BOLT.CARRIAGE Price: $2.99 |
| 26 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 27 |
532430087 |
SPACER.ENGINE.B&S.LRVA Price: $2.99 |
| 28 |
580747201 |
HUB.FRICTION.COMPOSITE SUBASM This part replaces 532428301. Price: $34.99 |
| 29 |
532430817 |
BOLT, SCKT HD 3/8-24 X 1 .25 Price: $2.99 |
| 30 |
532430470 |
BEARING.BALL.689ZZ Price: $4.99 |
| 31 |
532437322 |
SPACER.NEUTRAL Price: $2.99 |
| 32 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 33 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 34 |
532121250 |
SPRING Price: $3.99 |
| 35 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 36 |
532127018 |
BOLT,SHOULD Price: $3.99 |
| 37 |
819171912 |
WASHER Price: $3.99 |
| 38 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 39 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 40 |
532121248 |
BUSHING Price: $3.99 |
| 41 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 42 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 43 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 44 |
532440691 |
SEAT.SUBASY.OPP.WEEDEATER.LRVA Price: $129.99 |
| 45 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 46 |
817490508 |
SCREW LT Price: $3.99 |
| 47 |
532086777 |
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) Price: $1.99 |
| 48 |
532408981 |
BEARING FLANGE BALL Price: $5.99 |
| 49 |
817060516 |
SCREW 5/16-18X1 Price: $3.99 |
| 50 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
