Home / OPE / *Legacy / Tractors / Attachments / 14101 54" Snow Blade / 54" Snow Blade

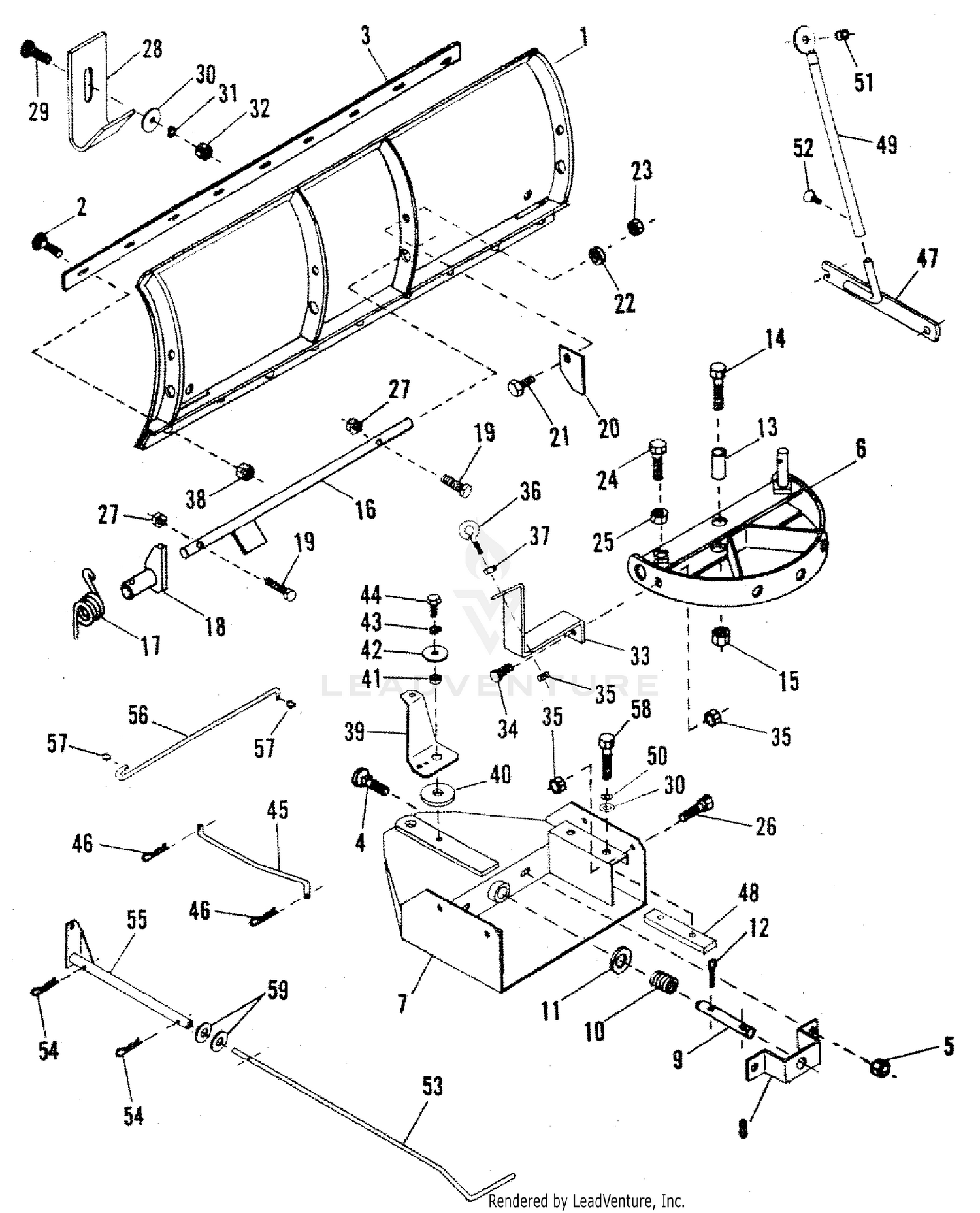

54" Snow Blade

54" Snow Blade

Parts (58)

RefPart NumberDescription
1 1773353 Blade Assembly -54" Price: Call Us
2 1186100 SCREW-CARR 5/16-18X1 Not Available Price:
3 HA-19385-0637 BLADE-SCRAPER 54 Not Available This part replaces 1773355. Price:
4 1186098 SCREW-CARR Not Available Price:
5 1732499 Nut - 5/16-18 Hex Lock Price: $3.49
6 1773356 Pivot Quadrant Assembly Price: Call Us
7 1773357 Pivot Bracket Assembly Price: Call Us
8 1773358 BRACKET-LOCK PIN Not Available Price:
9 1773359 PIN-LOCK Not Available Price:
10 1773360 SPRING Not Available Price:
11 736-0237 Washer, Flat, .65 x 1.25 x .075 This part replaces 1107386. Price: $3.90
12 1100351 COTTER PIN Not Available Price:
13 1773375 Spacer Price: Call Us
14 GW-9548 Bolt-Hex hd., flanged self-locking Grade 5, 1/2-13 x 3-1/2" This part replaces 1100066. Price: $12.42
15 712-3022 Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61
16 1773361 ASSM-BREAK Not Available Price:
17 1773362 Torsion Spring Price: Call Us
18 1773363 ASSM-SPRIN Not Available Price:
19 710-0606 Hex Bolt 1/4-20 x 1.50 This part replaces 1100811. Price: $4.67
20 1773364 STRAP-BLAD Not Available Price:
21 1773365 SCR-HH 5/8 Not Available Price:
22 1100247 WASHER-LK Not Available Price:
23 712-3015 Nut, 5/8 Jam Type 5 This part replaces 1108891. Price: $4.02
24 710-3181 Hex Cap Screw, 1/2-13 x 1.5 This part replaces 1100064. Price: $6.01
25 712-3048 Nut, Hex Jam, 1/2-13 GR5 This part replaces 1186261. Price: $4.08
26 710-3011 Screw 3/8-16 X 2.25 Gr5 This part replaces 1100049. Price: $6.49
27 712-0291 Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93
28 1773366 SKID SHOE Not Available Price:
29 1186180 Bolt - 1/2-13 x 1" Carriage Price: Call Us
30 736-0326 Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89
31 736-0921 Lock Washer, 1/2 This part replaces 1100245. Price: $3.90
32 712-0206 HEX NUT This part replaces 1186233. Price: $3.90
33 1773367 BRACKET-PIVOT CONTROL Not Available Price:
34 710-3005 SCREW 3/8-16 x 1.25 GR5 This part replaces 1100043. Price: $3.61
35 712-3000 Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90
36 1773368 EYE-BOLT Not Available Price:
37 712-3017 HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90
38 712-04054 NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95
39 1773369 BRACKET-PIVOT RELEASE Not Available Price:
40 1743945 Flat Washer - 17/32 x 2" x .134 Price: Call Us
41 1773370 SPACER Not Available Price:
42 1805077 Flat Washer - 13/32 x 1-1/2 x .065 Price: Call Us
43 736-0169 L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33
44 710-0347 Hex Cap Screw 3/8-16 x 1.75 This part replaces 1100086. Price: $4.39
45 1773371 LOCK ROD P Not Available Price:
46 1717897 PIN-CLIP Not Available Price:
47 1773335 ASSM-CONTR Not Available Price:
48 1773395 STRAP-TAPP Not Available Price:
49 1773331 Control Rod Support Assembly Price: Call Us
50 736-0921 Lock Washer, 1/2 This part replaces 1773396. Price: $3.90
51 1773332 BUSHING-CONTROL RO Not Available Price:
52 1773334 SCR-THUMB Not Available Price:
53 1773372 CONTROL ROD Not Available Price:
54 1723478 HITCH PIN Not Available Price:
55 1773373 ASSM-PIVOT CONTROL Not Available Price:
56 1773374 PIVOT ROD Not Available Price:
57 1751908 RING COTTER Not Available Price:
58 710-3104 Screw, Hex Cap, 1/2-13 X 2.25 Lg GR5 Not Available This part replaces 1100075. Price:
