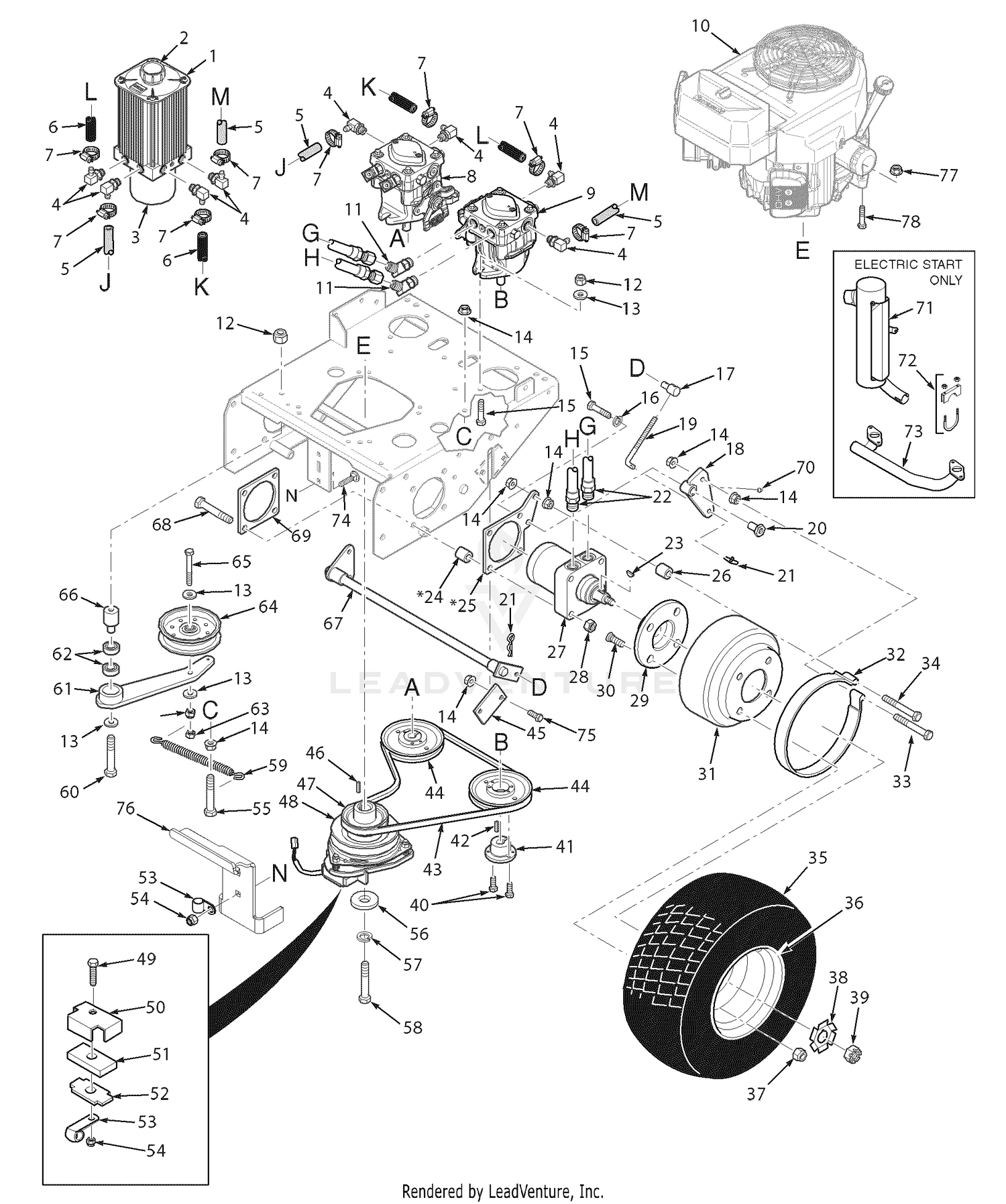

| Ref | Part Number | Description |
|---|
| 1 |
462056 |
Oil Reservoir Assembly Price: Call Us |
| 2 |
483094 |
Cap, Oil Reservoir Price: Call Us |
| 3 |
48462-01 |
Oil Filter Price: Call Us |
| 4 |
482266-01 |
Elbow, 90Degree O-Ring 9/16-18 x 3/8" Hose Price: Call Us |
| 7 |
48136-13 |
Clamp, Hose .69" Max. Dia. Price: Call Us |
| 10 |
483708 |
Engine, 23hp Kawasaki Electric Start FH680V Price: Call Us |
| 11 |
48485-01 |
Elbow, 45 Degree Price: Call Us |
| 12 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 13 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 14 |
04019-04 |
N ut, Serrated Flange 3/8-16 Price: Call Us |
| 15 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 16 |
04030-03 |
Lockwasher, 3/8" Price: Call Us |
| 17 |
43032 |
Swivel Joint Price: Call Us |
| 18 |
451941 |
Brake Actuator Weldment, LH Price: Call Us |
| 19 |
44170 |
Rod, Brake Lower Price: Call Us |
| 20 |
43415 |
B ushing, Brake Price: Call Us |
| 21 |
04062-01 |
Hair Pin Cotter, .094 x 1.62" Price: Call Us |
| 22 |
481265 |
Hose Assembly Price: Call Us |
| 23 |
04063-07 |
Key, 3/16 x 3/4" Woodruff Price: Call Us |
| 24 |
43391 |
Spacer Price: Call Us |
| 27 |
483388 |
Wheel Motor Price: Call Us |
| 28 |
04021-19 |
Nut, Center Lock 1/2-13 Price: Call Us |
| 30 |
04008-01 |
Bolt, Serrated 1/2-20 Price: Call Us |
| 31 |
422215 |
Brake Drum Price: Call Us |
| 32 |
481470 |
Brake Band Assembly Price: Call Us |
| 33 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4’ Price: Call Us |
| 34 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 37 |
04028-02 |
L ug Nut Price: Call Us |
| 38 |
422214 |
Lockwasher, Wheel Motor Price: Call Us |
| 39 |
48679 |
Hex Castle Nut, 3/4-28 UNEF Price: Call Us |
| 40 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Price: Call Us |
| 41 |
482085 |
Tapered Hub Price: Call Us |
| 42 |
04063-14 |
Key, 5.0 x 5.0 x 25mm Price: Call Us |
| 43 |
483520 |
Belt, Pump Drive Price: Call Us |
| 44 |
482649 |
Pulley, 5.45 O.D. Tapered Bore Price: Call Us |
| 45 |
424810 |
Plate, Brake Keeper Price: Call Us |
| 46 |
04063-29 |
Key, 1/4 x 1/4 x 3-3/4" Price: Call Us |
| 47 |
483598 |
Pulley, 4.0 O.D. - 1" Bore Price: Call Us |
| 48 |
462108 |
Clutch Assembly Price: Call Us |
| 49 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 50 |
424421 |
R e t a i n e r , C l utch Pad Price: Call Us |
| 51 |
483289 |
Rubber Pad Price: Call Us |
| 52 |
424422 |
Plate, Backing Price: Call Us |
| 53 |
48030-09 |
Clamp, Cable Price: Call Us |
| 54 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 55 |
04001-138 |
Bolt, Hex Head 3/8-16 x 3-3/4" Grade 8 Price: Call Us |
| 56 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 Price: Call Us |
| 57 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 58 |
04102-05 |
Bolt, Hex Head 7/16-20 x 2-3/4” w/Patch, (Kawasaki FX & FT, Yamaha MX) Price: Call Us |
| 59 |
483526 |
Spring, Transmission Idler Price: Call Us |
| 60 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 61 |
462109 |
Idler Arm Assembly Price: Call Us |
| 62 |
48224 |
Bearing Price: Call Us |
| 63 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 64 |
483213 |
Pulley, 4-1/2" Idler Price: Call Us |
| 65 |
04001-161 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 66 |
43734 |
Pivot, Idler Price: Call Us |
| 67 |
451939 |
Brake Bellcrank Weldment Price: Call Us |
| 69 |
424600 |
Plate, Wheel Motor Price: Call Us |
| 70 |
48114-05 |
Grease Fitting Price: Call Us |
| 74 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 75 |
04017-26 |
Bolt, Serrated Flange 3/8-16 x 3/4" Price: Call Us |
| 76 |
424709 |
Plate, Clutch Bracket Price: Call Us |
| 77 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 451947 |
Brake |
Actuator Weldment, RH Price: Call Us 451947 |
