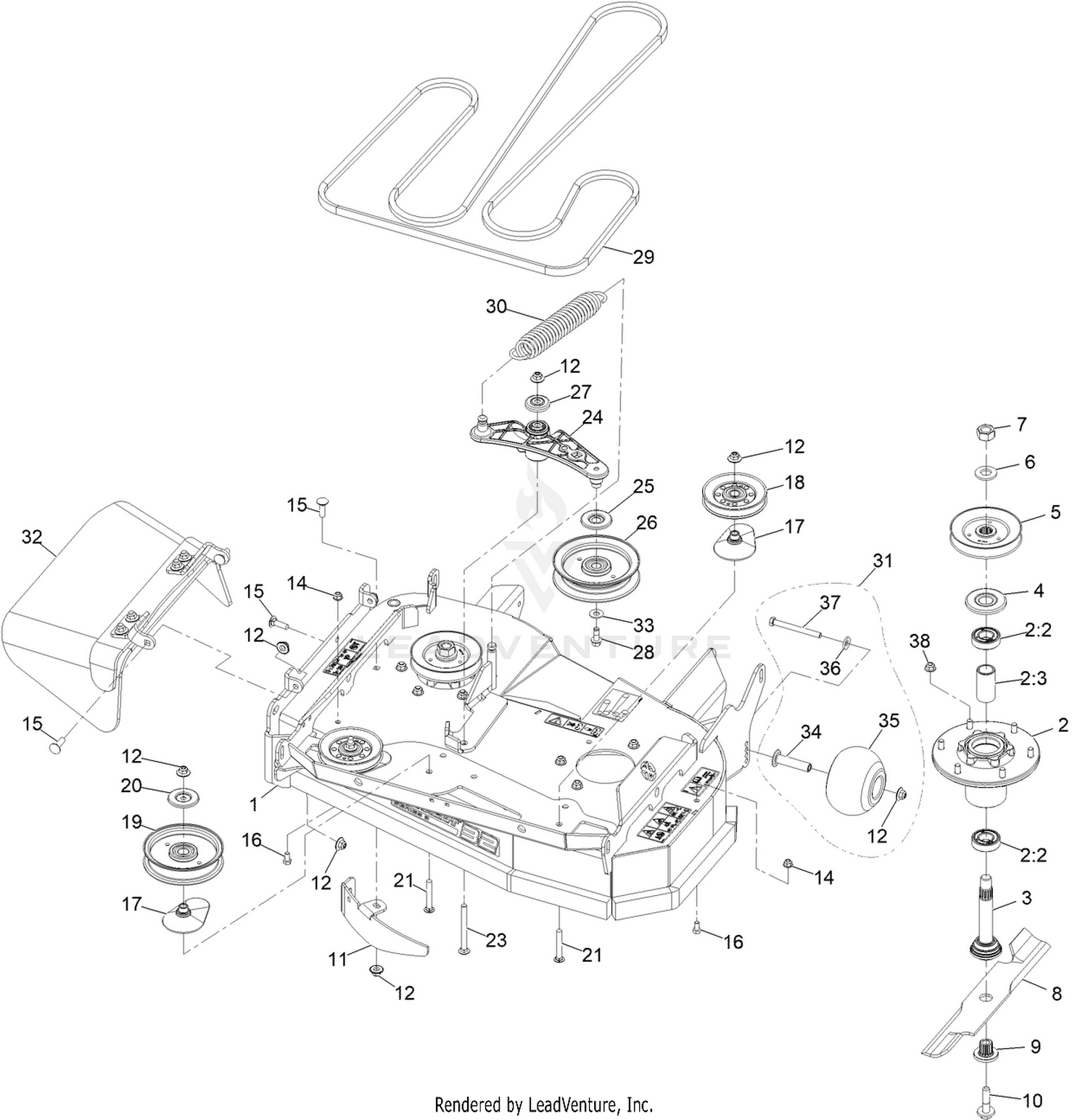

| Ref | Part Number | Description |
|---|
| 1 |
142-6073 |
ASM-DECK DECALS 32 Price: $1,487.99 |
| 2 |
146-5285 |
ASM-Cutter Hsg With Bearings Price: Call Us |
| 3 |
116-3342 |
ASM-SPINDLE AND SEAL Price: $82.99 |
| 4 |
116-1286 |
GUARD,BEARING TOP .989 Price: $5.09 |
| 5 |
135-4808 |
SHEAVE-BLADE DRIVE Price: $30.99 |
| 6 |
103-2802 |
WASHER Price: $4.79 |
| 7 |
116-7306 |
NUT-HEX Price: $2.59 |
| 8 |
103-6401-S |
SPK, BLADE NOTCHED 16.25 (.94 HOLE) This part replaces 103-6401. Price: $28.99 |
| 9 |
103-3037 |
BUSHING,SPLINED Price: $20.99 |
| 10 |
109-9220 |
SCREW,SEMS 1/2-20 X 2.19 Price: $7.59 |
| 11 |
126-2783-01 |
BAFFLE, DOGLEG Price: $42.99 |
| 12 |
109-6658 |
Nut-Nyloc 3/8-16 Flg Price: $1.19 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.89 |
| 15 |
119-4162 |
Bolt-Carriage 3/8-16 X 1 1/4 This part replaces 3231-25. Price: $1.59 |
| 16 |
322-2 |
SCREW-HH Price: $2.29 |
| 17 |
109-2872 |
SPACER-PULLEY Price: $20.99 |
| 18 |
135-4398 |
Idler - V 4.13 Eod-A Price: $31.99 |
| 19 |
146-4624 |
Pulley-Idler, Flat Price: $31.99 |
| 20 |
126-8043 |
SHIELD-DUST Price: $2.39 |
| 21 |
3231-31 |
SCREW-CARR Price: $6.59 |
| 23 |
135-0313 |
SCREW-CARR Price: $2.59 |
| 24 |
135-1679 |
ASM.-ARM, IDLER Price: $111.99 |
| 25 |
126-9195 |
SHIELD-GUARD, DUST Price: $2.49 |
| 26 |
146-4609 |
IDLER-PULLEY, FLAT Price: $32.99 |
| 27 |
103-2916 |
GUARD-TOP Price: $2.39 |
| 28 |
126-1680 |
SCREW-HFH Price: $1.49 |
| 29 |
135-7353-SL |
BELT-V WITH SLEEVE This part replaces 135-7353. Price: $141.99 |
| 30 |
116-6317 |
SPRING-EXTENSION Price: $26.99 |
| 31 |
116-9981 |
KIT, ANTI-SCALP ROLLER Price: $48.99 |
| 32 |
142-6489 |
RUBBER DEFLECTOR ASM Price: $152.99 |
| 33 |
3256-4 |
WASHER-FLAT Price: $1.49 |
| 34 |
116-8131 |
AXLE, ROLLER Price: $12.99 |
| 35 |
103-8415 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 36 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 37 |
116-9362 |
SCREW-HH 3/8-16 X 3 3/4 GR 8 Price: $2.39 |
