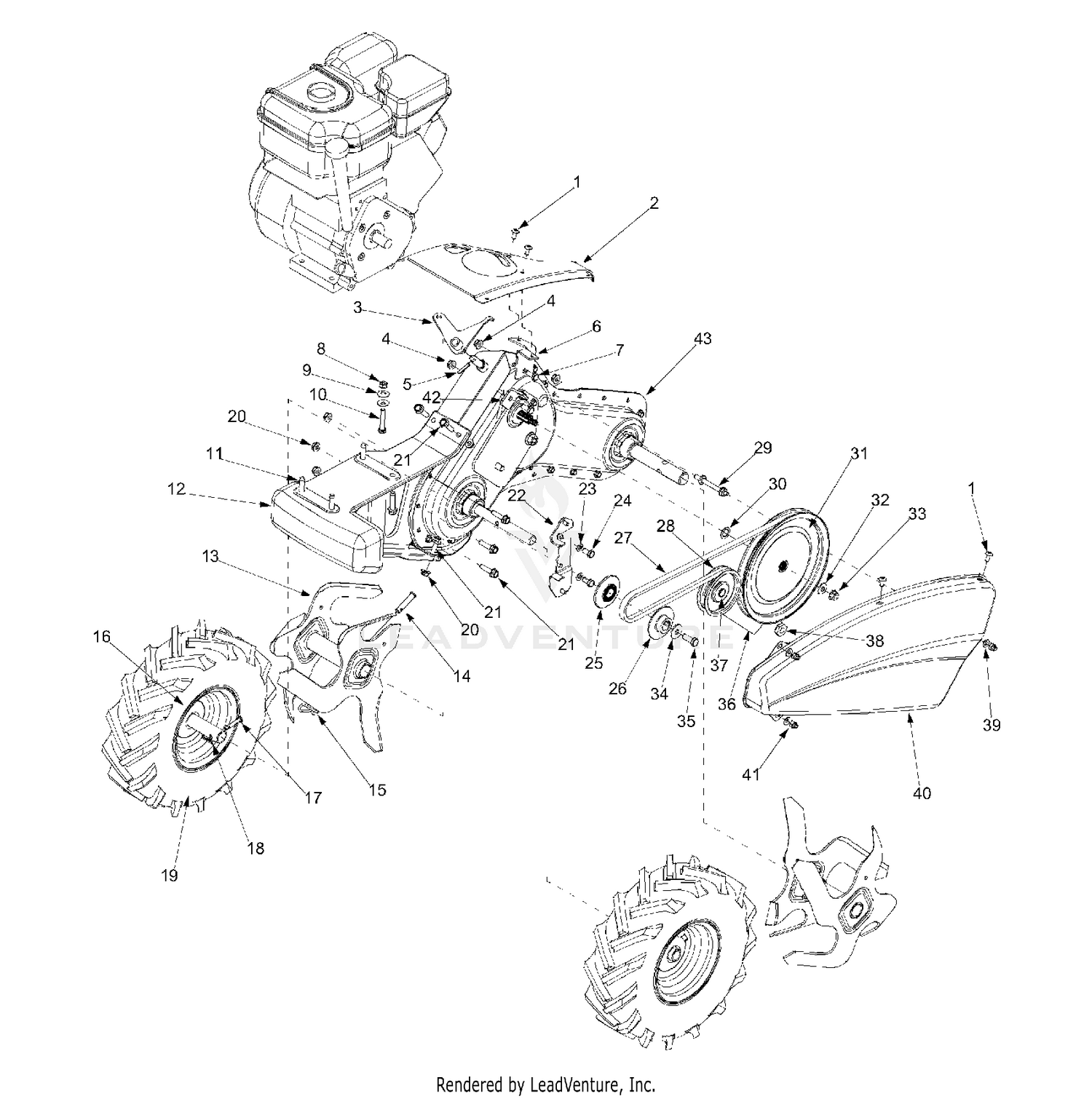

| Ref | Part Number | Description |
|---|
| 1 |
710-1017 |
Hex Screw 1/4-20 x .625 Price: $7.26 |
| 2 |
786-0101B |
SHIFT COVER Not Available Price: |
| 3 |
686-0095 |
CRANK SHIFT ASSEMBLY Not Available Price: |
| 4 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 5 |
715-0120 |
Spiral Pin Price: $9.14 |
| 6 |
786-0117 |
BRACKET CO Not Available Price: |
| 7 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 9 |
736-0242 |
Bell Washer .340 ID x .872 OD Price: $3.75 |
| 10 |
710-3180 |
Hex Cap Screw 5/16-18 x 1.75 Price: $4.93 |
| 11 |
710-1007 |
Hex Washer Screw 3/8-16 x 1.5 Price: $5.71 |
| 12 |
619-0009 |
COUNTERWEIGHT FRAME Not Available Price: |
| 13 |
642-0015-0637 |
Tine Ass'y. - L.H. Not Available This part replaces 642-0015. Price: |
| 14 |
711-0415 |
Clevis Pin Price: $4.04 |
| 15 |
714-0149B |
Cotter Pin Price: $3.95 |
| 16 |
634-0110 |
WHEEL ASSEMBLY (14 x 4.5) (RH) Not Available Price: |
| 17 |
711-1017 |
Clevis Pin Price: $6.57 |
| 18 |
714-0104 |
Cotter Pin Price: $3.90 |
| 19 |
734-1796A |
Tire This part replaces 734-1796. Price: $129.88 |
| 20 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 21 |
710-1090 |
Flange Screw 5/16-18 x 1.25 Price: $3.15 |
| 22 |
686-0031A-0637 |
BELT KEEPER BRACKET (POWDER BLACK) Not Available This part replaces 686-0031A. Price: |
| 23 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 24 |
710-0237 |
Hex Cap Screw 5/16-24 x .625 Price: $3.93 |
| 25 |
756-0971 |
Inner Pulley Half Price: $12.60 |
| 26 |
756-0972 |
Outer Pulley Half Price: $14.17 |
| 27 |
954-0438 |
Drive Belt This part replaces 754-0438. Price: $49.79 |
| 28 |
756-0405 |
Flat Idler Price: $66.84 |
| 29 |
738-0899 |
BELT COVER BOLT Not Available Price: |
| 30 |
936-0256 |
Fl-Wash. This part replaces 736-0256. Price: $6.24 |
| 31 |
756-0634 |
Flat Pulley Price: $80.32 |
| 32 |
736-0105 |
Spring Washer .401 ID x .870 OD Price: $3.96 |
| 33 |
712-0379 |
Flange Lock Nut 3/8-24 Price: $4.02 |
| 34 |
736-0452 |
Bell Washer .396 ID x 1.140 OD Price: $4.05 |
| 35 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 36 |
786-0080-0637 |
IDLER BRACKET Not Available This part replaces 786-0080. Price: |
| 37 |
710-0723 |
Hex Cap Screw 3/8-16 x 1.25 Price: $4.04 |
| 38 |
738-0876A |
SHOULDER NUT This part replaces 738-0876. Price: $9.54 |
| 39 |
736-3020 |
Flat Washer .271 ID x .630 OD Price: $5.94 |
| 40 |
786-0100 |
BELT COVER Not Available Price: |
| 41 |
712-0392 |
Hex Lock Nut 1/4 Price: $6.01 |
| 42 |
786-0107 |
CABLE BRACKET MOUNTING Not Available Price: |
