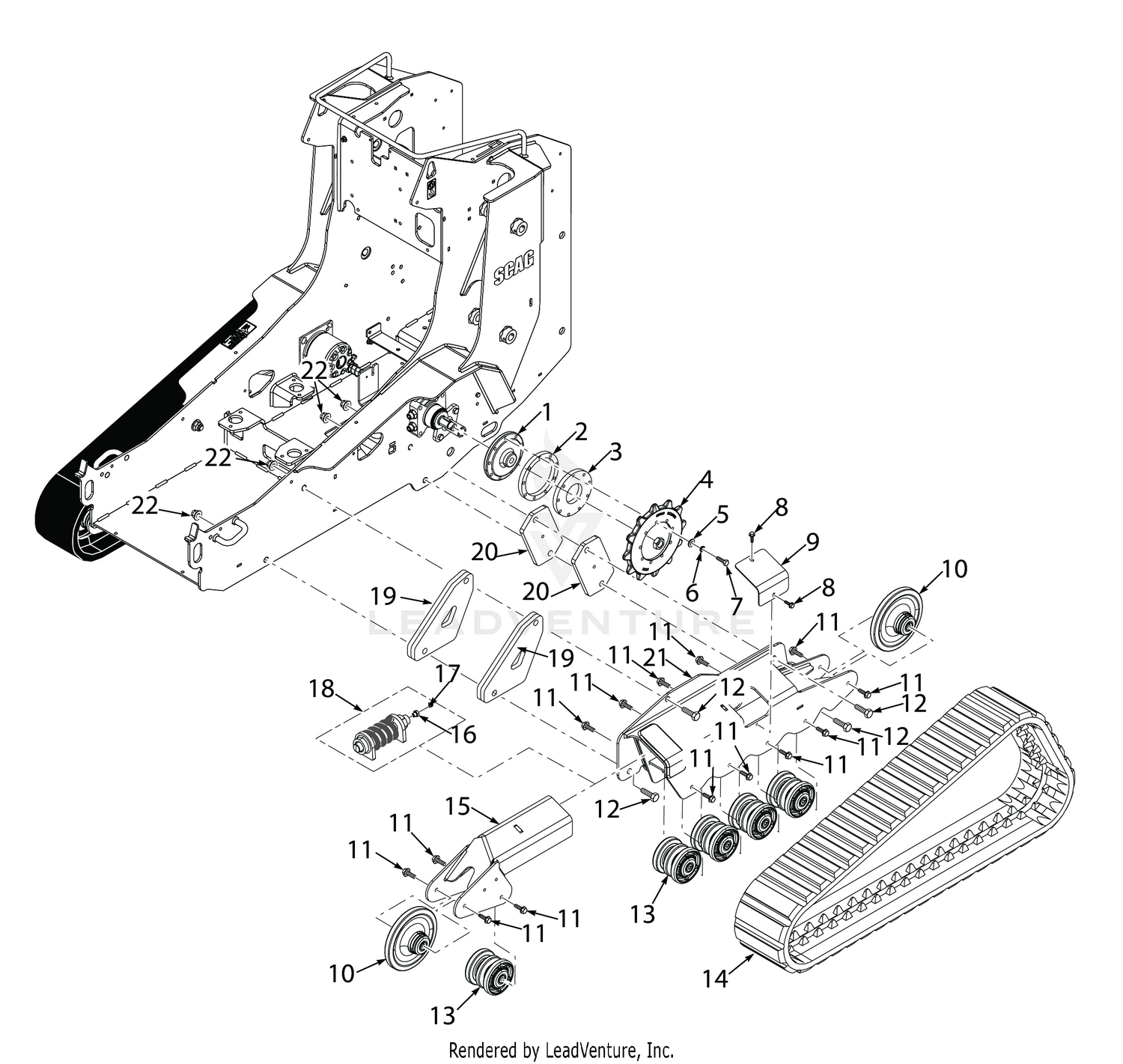

| Ref | Part Number | Description |
|---|
| 1 |
29-0500 |
DISCONTINUED Price: Call Us |
| 1 |
431207 |
Flange, Sprocket Price: Call Us |
| 2 |
429600 |
Sprocket Spacer, Inner Price: Call Us |
| 2 |
66-6140 |
DECAL This part replaces 18-2180. Price: $25.48 |
| 3 |
29-0640 |
DISCONTINUED Price: Call Us |
| 3 |
429601 |
Sprocket Spacer, Outer Price: Call Us |
| 4 |
29-0580 |
DISCONTINUED Price: Call Us |
| 4 |
487583 |
Track, Sprocket Price: Call Us |
| 5 |
04040-05 |
Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us |
| 5 |
29-0630 |
DISCONTINUED Price: Call Us |
| 6 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 7 |
323-34 |
SCREW-HH Price: $0.54 |
| 8 |
04011-22 |
Screw, 3/8-19 x 1" Self Tapping Price: Call Us |
| 8 |
29-0590 |
SCREEN-FILLER Price: $150.99 |
| 9 |
429386 |
Cover, Track Support Price: Call Us |
| 10 |
36-4950 |
CAP WA Price: $195.49 |
| 10 |
487559 |
Idler, Track Price: Call Us |
| 11 |
04018-06 |
Metric Hex Head Capscrew Serrated Flange M12-1.75 X 30 Price: Call Us |
| 11 |
11-6350 |
DISCONTINUED Price: Call Us |
| 12 |
04001-232 |
Capscrew Hexhead 3/4-10 UNC X 3.00" Price: Call Us |
| 12 |
32140-43 |
DISCONTINUED Price: Call Us |
| 13 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 13 |
487560 |
Roller, Track Price: Call Us |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 14 |
487629 |
Track, 9" Price: Call Us |
| 15 |
237-103 |
DISCONTINUED Price: Call Us |
| 15 |
453511 |
Track Yoke Weldment. RH Price: Call Us |
| 16 |
29-2270 |
DISCONTINUED Price: Call Us |
| 16 |
431230 |
Grease Insert Price: Call Us |
| 17 |
29-8720 |
DISCONTINUED Price: Call Us |
| 17 |
48114-11 |
Grease Fitting, Straight 1/8 - PTF Price: Call Us |
| 18 |
92-7800 |
BATTERY COVER ASM This part replaces 24-9740. Price: $65.49 |
| 19 |
32103-2 |
NUT-WING Price: $0.68 |
| 19 |
429596 |
Track Spacer, Front Price: Call Us |
| 20 |
29-0780 |
DISCONTINUED Price: Call Us |
| 20 |
429597 |
Track Spacer, Rear Price: Call Us |
| 21 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 21 |
453426 |
Track Carriage Weldment, LH Price: Call Us |
| 22 |
29-0650 |
TOWER WA Price: $253.91 |
| 23 |
20-4690 |
TORO LOGO DECAL Price: $6.67 |
| 24 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 25 |
323-4 |
SCREW-HH Price: $1.02 |
| 26 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 27 |
29-2130 |
DISCONTINUED Price: Call Us |
| 28 |
322-1 |
SCREW-HH Price: $0.22 |
| 29 |
237-102 |
GROMMET Price: $62.07 |
| 33 |
36-6220 |
DISCONTINUED Price: Call Us |
| 34 |
27-6630 |
DISCONTINUED Price: Call Us |
| 35 |
29-2380 |
DISCONTINUED Price: Call Us |
| 36 |
38-3790 |
DISCONTINUED This part replaces 29-2370. Price: Call Us |
| 37 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 38 |
32128-29 |
NUT-LOCK, FLANGE Price: $1.63 |
| 39 |
29-0830 |
DISCONTINUED Price: Call Us |
| 40 |
321-3 |
SCREW-HH Price: $0.28 |
| 41 |
29-0610 |
DISCONTINUED Price: Call Us |
| 42 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 43 |
321-6 |
SCREW-HH Price: $0.25 |
| 44 |
29-8710 |
DISCONTINUED Price: Call Us |
| 45 |
29-0620 |
DISCONTINUED Price: Call Us |
| 453427 |
Track |
Carriage Weldment, RH Price: Call Us 453427 |
| 453428 |
Track |
Yoke Weldment. LH Price: Call Us 453428 |
