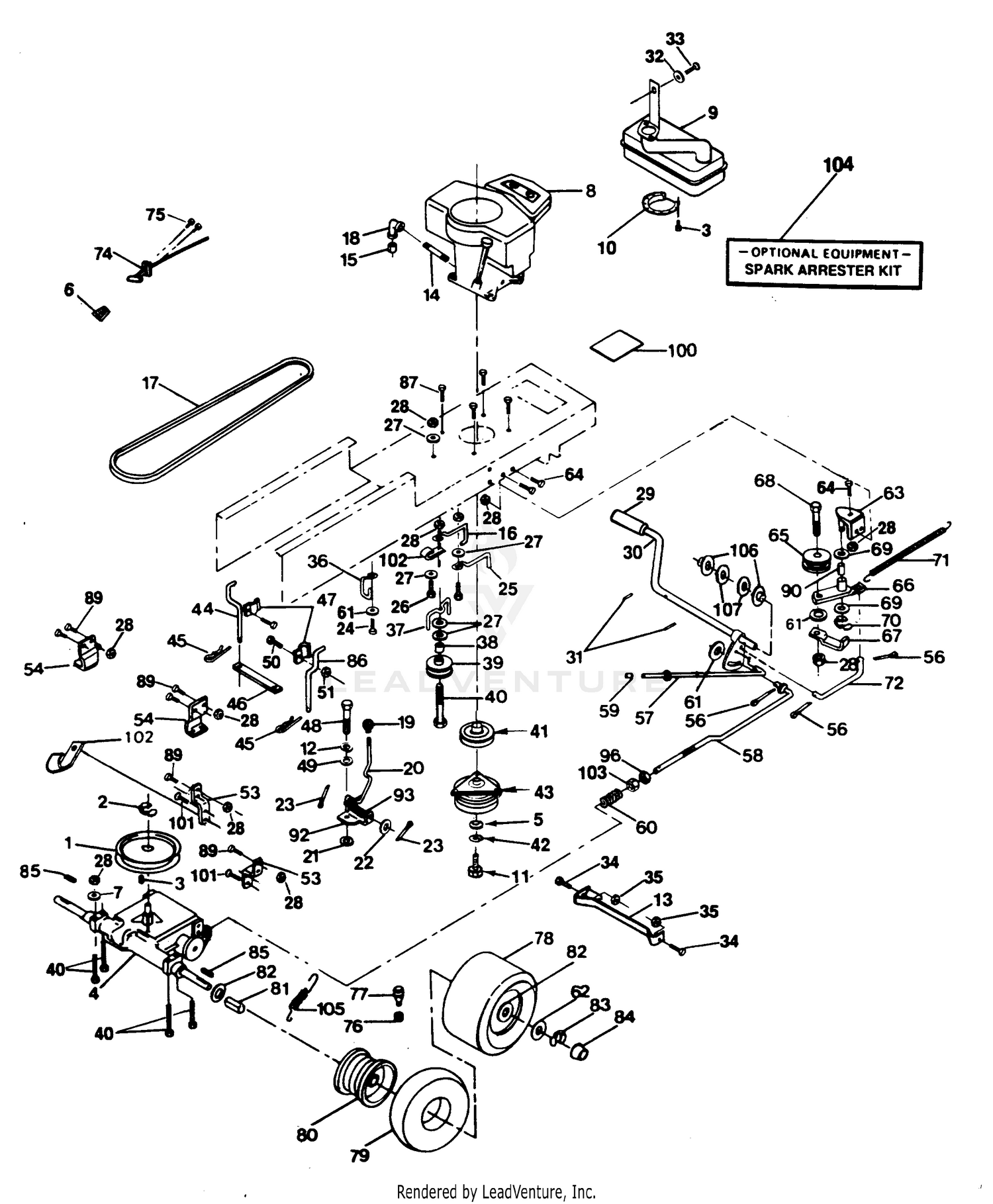

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
532123666 |
Transaxle (Driven) Pulley (AYP part number) Price: $22.99 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
812000028 |
Retainer Ring (AYP part number) Price: $4.99 |
| 3 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 4 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 4 |
532124162 |
Foote Dana 6-speed Transaxle, Model No. 4360-19 (AYP part number) Price: $570.54 |
| 5 |
23-4010 |
DISCONTINUED Price: Call Us |
| 5 |
532108252 |
Washer (AYP part number) Price: $3.33 |
| 6 |
532061159 |
Throttle Control Knob (AYP part number) Price: $3.33 |
| 7 |
819111214 |
Washer (AYP part number) Price: Call Us |
| 9 |
532124196 |
Muffler (AYP part number) Price: $3.33 |
| 10 |
532101326 |
Muffler Deflector (AYP part number) Price: $4.01 |
| 11 |
747810100 |
BOLT, HEX This part replaces 532125005. Price: $2.99 |
| 12 |
810040400 |
Lock Washer 1/4 (AYP part number) Price: $3.99 |
| 13 |
532109169 |
Clutch Retainer (AYP part number) Price: $17.99 |
| 14 |
813280320 |
Pipe Nipple (AYP part number) Price: $3.33 |
| 15 |
813300300 |
Pipe Coupling (AYP part number) Price: $3.33 |
| 17 |
532120302 |
Drive V-Belt (AYP part number) Price: $3.33 |
| 18 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 19 |
532121274 |
Knob (AYP part number) Price: $5.99 |
| 20 |
532124461 |
Shifter Rod (AYP part number) Price: $8.59 |
| 21 |
532105701 |
Shift Plate Washer (AYP part number) Price: $3.99 |
| 22 |
819151216 |
Washer (AYP part number) Price: Call Us |
| 23 |
876020416 |
Cotter Pin 1/8 x 1 (AYP part number) Price: $3.99 |
| 24 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 25 |
532105730 |
Engine Belt Keeper (AYP part number) Price: $2.99 |
| 26 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 27 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 28 |
873680600 |
Locknut Price: $1.99 |
| 29 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 30 |
532122424 |
Foot Pedal Shaft (AYP part number) Price: $21.56 |
| 31 |
532001572 |
Roll Pin (AYP part number) Price: $3.99 |
| 32 |
810040500 |
Lock Washer (AYP part number) Price: $2.99 |
| 33 |
874760508 |
Hex Bolt (AYP part number) Price: $3.99 |
| 34 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 35 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 36 |
532136715 |
Keeper Belt Chassis Span Ctr (AYP part number) This part replaces 532104777. Price: $6.79 |
| 37 |
532109070 |
Belt Keeper (AYP part number) Price: $3.99 |
| 38 |
532124965 |
SPACER T This part replaces 532004470. Price: $3.99 |
| 39 |
532123674 |
Flat Idler (AYP part number) Price: $17.99 |
| 40 |
874760644 |
Hex Bolt 3/8-16 x 2-3/4 (AYP part number) Price: $3.99 |
| 41 |
532140189 |
Pulley, Engine (AYP part number) This part replaces 532109841. Price: $29.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 43 |
532142600 |
KIT CLUTCH ELECT REPL This part replaces 532108218. Price: $329.99 |
| 44 |
532123662 |
L.H. Belt Keeper (AYP part number) Price: $20.17 |
| 45 |
532004921 |
Spring Retainer (AYP part number) Price: $3.99 |
| 46 |
532123770 |
Locator Strap (AYP part number) Price: $4.62 |
| 47 |
532106190 |
Clamp (AYP part number) Price: $4.62 |
| 48 |
871040412 |
Hex Bolt 1/4-28 x 3/4 (AYP part number) Price: $3.99 |
| 49 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 50 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 51 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 53 |
532121520 |
Torque Strap (AYP part number) Price: $3.99 |
| 54 |
532109167 |
Transaxle Bracket (AYP part number) Price: $2.86 |
| 56 |
876020412 |
Cotter Pin (AYP part number) Price: $3.99 |
| 57 |
532105844 |
Park Brake Rod (AYP part number) Price: $3.62 |
| 58 |
532110437 |
Brake Rod (AYP part number) Price: $29.99 |
| 59 |
532071673 |
Cap (AYP part number) Price: $3.99 |
| 60 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 61 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 62 |
532121748 |
Washer (AYP part number) Price: $1.99 |
| 63 |
532123102 |
Clutch Bracket (AYP part number) Price: $11.99 |
| 64 |
872140606 |
Carriage Bolt (AYP part number) Price: $3.99 |
| 65 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532123766. Price: $22.99 |
| 66 |
532123789 |
Idler Arm (AYP part number) Price: $13.07 |
| 67 |
532123205 |
Belt Retainer (AYP part number) Price: $3.99 |
| 68 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 69 |
532110812 |
Hardened Washer (AYP part number) Price: $3.10 |
| 70 |
812000039 |
Klip Ring (AYP part number) Price: $3.99 |
| 71 |
532105709 |
Clutch Return Spring (AYP part number) Price: $7.99 |
| 72 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 74 |
532121275 |
Throttle Control (AYP part number) Price: $3.33 |
| 75 |
817720410 |
Thread Cutting Hex Screw (AYP part number) Price: $5.99 |
| 76 |
532059192 |
Valve Cap (AYP part number) Price: $3.99 |
| 77 |
532065139 |
Valve Stem (AYP part number) Price: $5.99 |
| 78 |
532420531 |
TIRE.18X9.5-8 TURF SAVER This part replaces 532106268. Price: $74.99 |
| 79 |
532007152 |
Tube (Not furnished with Tractor) (AYP part number) Price: $44.99 |
| 80 |
532125122 |
RIM.ASM.8"REAR.YELLOW.SERVICE This part replaces 532124789. Price: $109.99 |
| 81 |
532109502 |
Split Spacer (AYP part number) Price: $3.99 |
| 82 |
532121749 |
Washer (AYP part number) Price: $1.99 |
| 83 |
812000001 |
E-Ring (AYP part number) Price: $2.99 |
| 84 |
532104757 |
Rear Hub Cap (AYP part number) Price: $1.99 |
| 85 |
532123583 |
Square Key (AYP part number) Price: $2.99 |
| 86 |
532123663 |
R.H. Belt Keeper (AYP part number) Price: $20.17 |
| 87 |
532125006 |
Screw Price: $4.62 |
| 89 |
874760612 |
Hex Bolt 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 90 |
532105706 |
Bearing (AYP part number) Price: $3.99 |
| 92 |
532106919 |
Shifter Plate Assembly (AYP part number) Price: $11.90 |
| 93 |
532105700 |
Torsion Spring (AYP part number) Price: $4.60 |
| 96 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 98 |
819132012 |
Washer (AYP part number) Price: $2.99 |
| 100 |
532121120 |
Decal (AYP part number) Price: $16.26 |
| 101 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 102 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 103 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 104 |
532100091 |
Spark Arrestor Kit (AYP part number) Price: $3.33 |
| 105 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 106 |
532120183 |
Nylon Bearing (AYP part number) Price: $2.99 |
