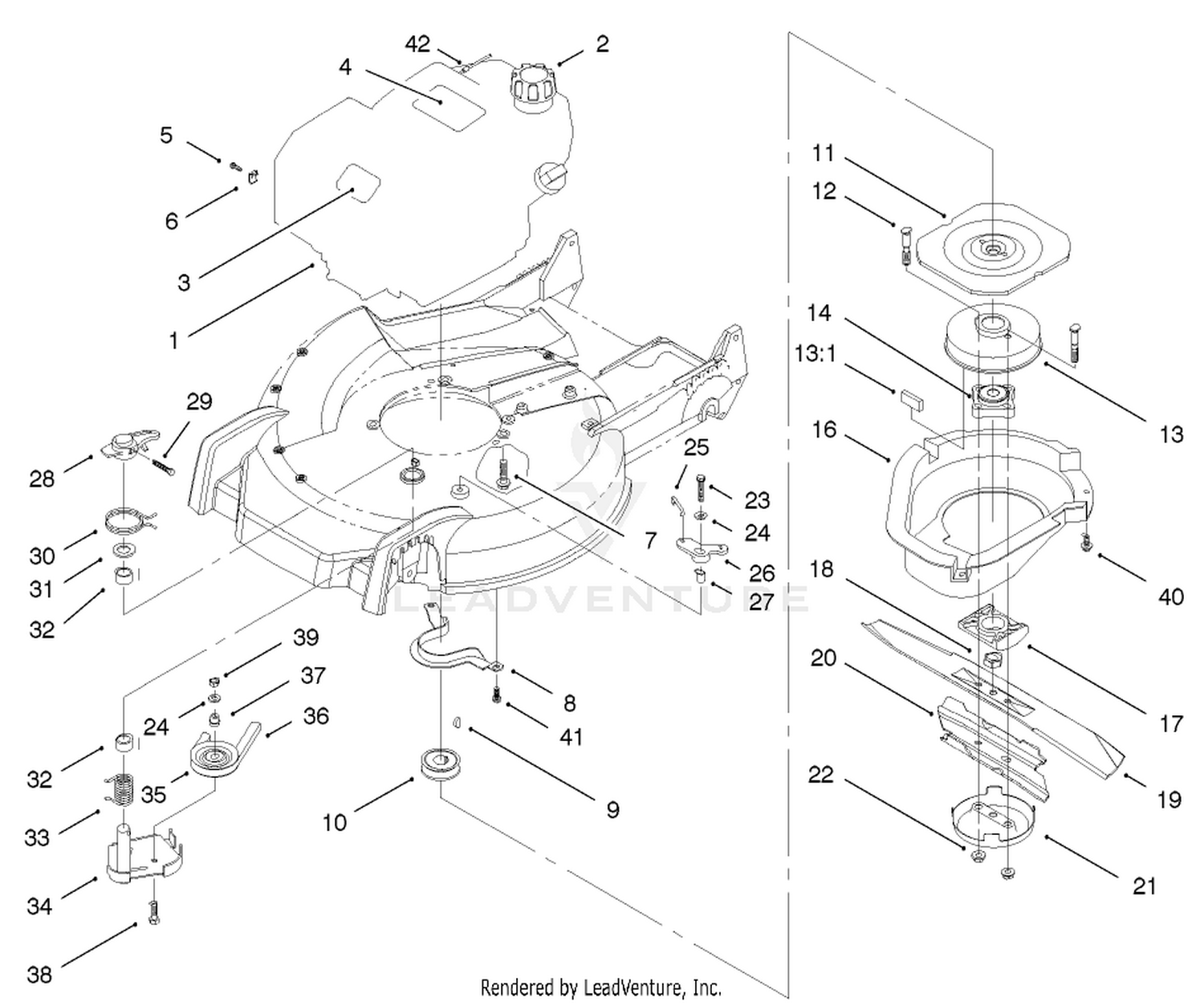

| Ref | Part Number | Description |
|---|
| 2 |
55-3570 |
GAS CAP ASM Price: $13.99 |
| 3 |
98-3206 |
DECAL Price: $1.99 |
| 4 |
99-6012 |
DECAL - RECOIL Price: $5.45 |
| 5 |
93-8470 |
SCREW-CLAMP Price: $4.41 |
| 6 |
2210-249 |
CLAMP-CASING Price: $2.05 |
| 7 |
32144-102 |
SCREW-HWH Price: $3.19 |
| 8 |
66-0570-03 |
BRACKET-GUIDE, BELT Price: $8.87 |
| 9 |
3257-17 |
KEY-WOODRUFF Price: $3.57 |
| 10 |
62-7560 |
PULLEY Price: $27.38 |
| 11 |
56-6160-03 |
FLYWHEEL - BBC This part replaces 56-6160. Price: $69.79 |
| 12 |
42-3190 |
BOLT-BLADE Price: $7.43 |
| 13 |
94-9431 |
BRAKE DRUM ASM Price: $30.01 |
| 14 |
42-6890 |
HUB ASM Price: $61.78 |
| 16 |
46-5693 |
SHIELD Price: $21.19 |
| 17 |
93-4126 |
SPACER - BLADE Price: $10.00 |
| 18 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 19 |
133-8183-03 |
BLADE-RECYCLING, 21IN This part replaces 93-4106-03. Price: $19.68 |
| 20 |
93-4181-03 |
STIFFENER-BLADE Price: $49.86 |
| 21 |
80-2770 |
CUP-SCALP, ANTI Price: $10.48 |
| 22 |
54-9190 |
NUT-LOCK Price: Call Us |
| 23 |
32104-107 |
SCREW-HH Price: $6.99 |
| 24 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 25 |
49-2810 |
LINK-CONTROL Price: $1.97 |
| 26 |
49-7960 |
BELLCRANK Price: $7.34 |
| 27 |
49-7950 |
SLEEVE-BELLCRANK Price: $2.59 |
| 28 |
49-2820 |
LEVER Price: $6.94 |
| 29 |
32104-96 |
SCREW-HH Price: $5.59 |
| 30 |
49-7970 |
SPRING-TORSION Price: $5.69 |
| 31 |
70-1160 |
WASHER Price: $3.59 |
| 32 |
68-9780 |
BEARING Price: $15.98 |
| 33 |
46-5670 |
SPRING-TORSION Price: $6.39 |
| 34 |
94-1601 |
BRAKE PLATE ASM Price: $67.46 |
| 35 |
117-5299 |
PULLEY-IDLER This part replaces 46-5650. Price: $31.73 |
| 36 |
42-0884 |
V-BELT Price: $14.21 |
| 37 |
46-5630 |
HUB-PULLEY, IDLER Price: $11.05 |
| 38 |
322-16 |
SCREW-HH Price: $3.39 |
| 39 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 40 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 41 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 42 |
2210-316 |
STOP-ROPE Price: $4.41 |
