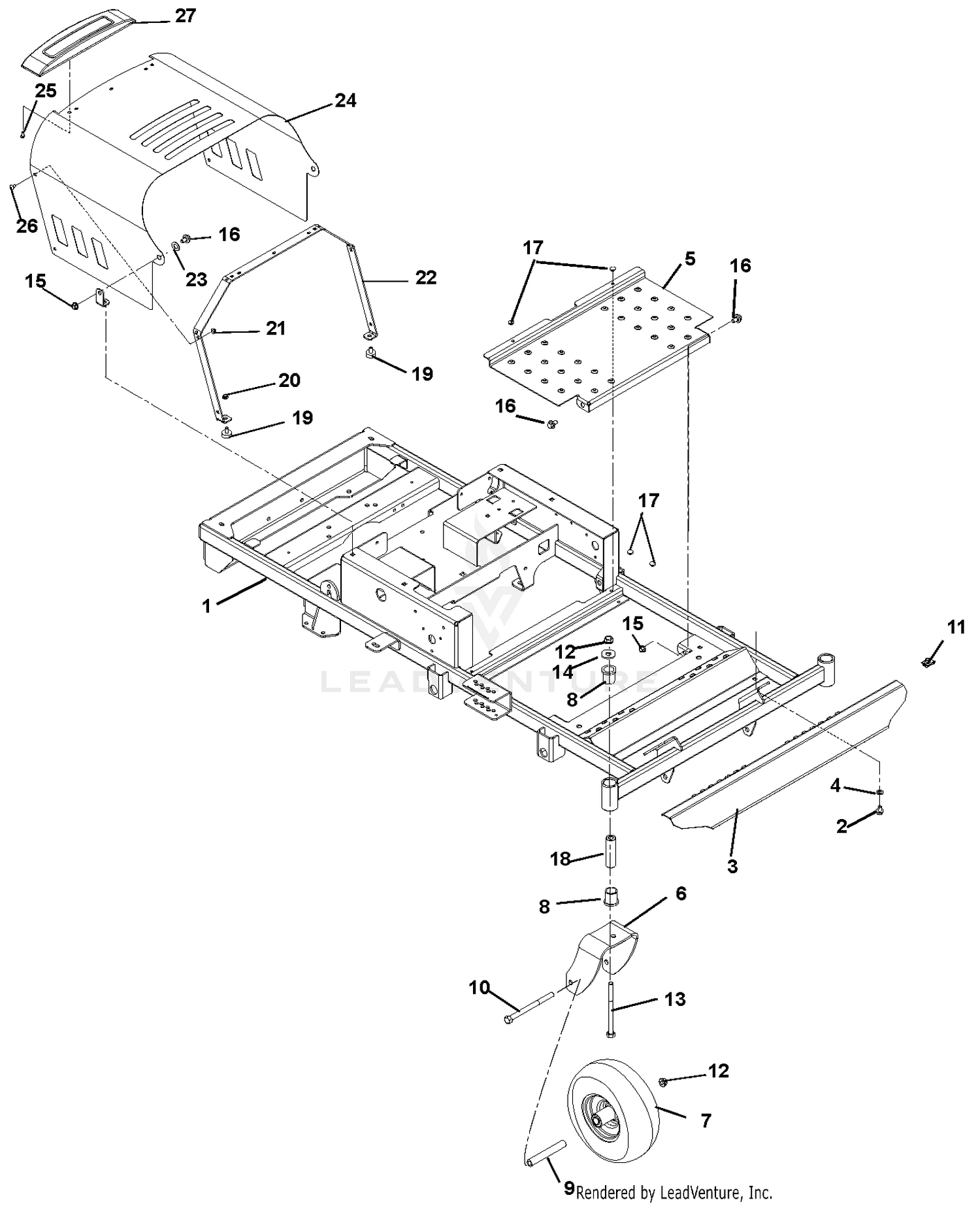

| Ref | Part Number | Description |
|---|
| 1 |
03998151 |
WMT, FRAME ZT XL (2010) This part replaces 00608051. Price: $1,054.70 |
| 2 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 3 |
01922953 |
WMT, FOOTREST Price: $134.95 |
| 4 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 5 |
01923251 |
DECK ACCESS PANEL Price: $80.45 |
| 6 |
03368551 |
CASTER FORK WELDMENT Price: $64.95 |
| 7 |
07100124 |
TIRE/WHEEL ASSY, 11X4-5 Price: $72.95 |
| 8 |
05500934 |
BSHG-FLG 1.00X1.25X1.50X1.50 This part replaces 05533600. Price: $6.95 |
| 9 |
00278500 |
SPACER, ROLLED WHEEL Price: $13.95 |
| 10 |
05901907 |
BLT, HEX .50-13X6.50 GR5 ZCC This part replaces 05964400. Price: $6.95 |
| 11 |
07053300 |
NUT-RTNR .375-16X.37 Price: $3.45 |
| 12 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 13 |
05901905 |
BLT, HEX .50-13X5.00 GR5 ZCC This part replaces 05962200. Price: $4.95 |
| 14 |
06401022 |
WSHR-FL-STL.511X1.44X.125ZC120 This part replaces 06436400. Price: $2.95 |
| 15 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 16 |
07056700 |
BOLT-SHLDR .375-16X.150 Price: $3.95 |
| 17 |
07503100 |
BUMPER GROMMET Price: $3.45 |
| 18 |
00363100 |
SPACER, CASTER .50X1.00X1.84 Price: $6.95 |
| 19 |
07533600 |
BUMPER, RUBBER Price: $10.95 |
| 20 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 21 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95 |
| 22 |
02985453 |
BRKT-HOOD BRACE Price: $40.95 |
| 23 |
06443300 |
WSHR-FL-NYL .518X1.000X.080 Price: $0.45 |
| 24 |
04045253 |
HOOD, XL This part replaces 02970753. Price: $111.45 |
| 25 |
07400032 |
SCR-.25X.62 PN HD BOSSSCREW YZ Price: $2.45 |
| 26 |
06200306 |
BLT, RHSN .25-20X.500 G5 ZCC This part replaces 06220600. Price: $0.95 |
