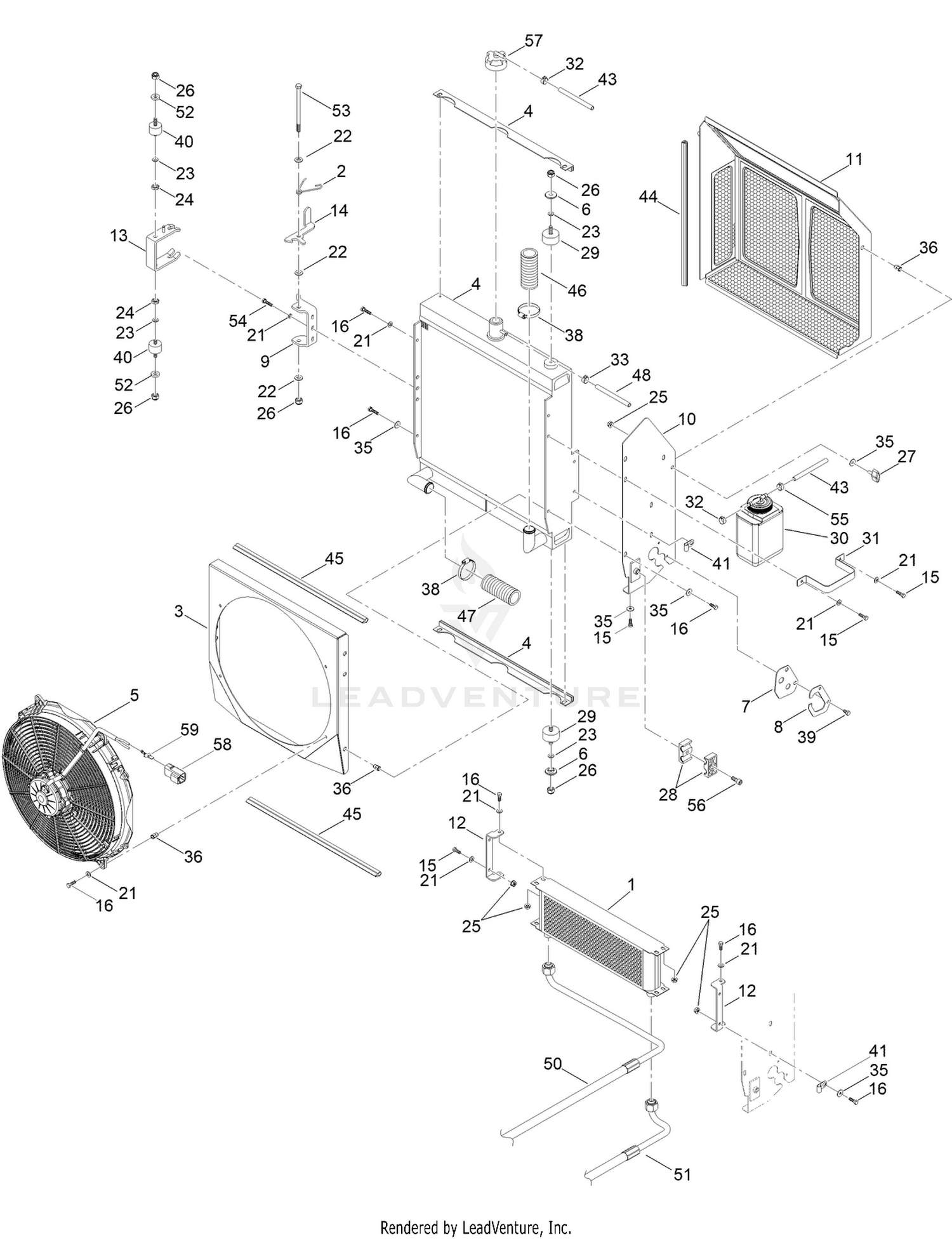

Cooling Assembly
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0625 | COOLER-OIL Price: $305.69 |
| 2 | 134-0640 | SPRING Price: $7.83 |
| 3 | 134-0651 | CONVEYOR-BLOWER Price: $58.50 |
| 4 | 134-0659 | RADIATOR Price: $972.27 |
| 5 | 134-4713 | FAN-ELECTRIC Price: $483.18 |
| 6 | 134-0694 | BUSHING Price: $4.83 |
| 7 | 134-0751 | GASKET Price: $8.72 |
| 8 | 134-0752 | FRAME Price: $2.35 |
| 9 | 134-0771 | BRACKET Price: $10.40 |
| 10 | 134-0773 | GUARD-CABLE Price: $26.89 |
| 11 | 134-0777 | SCREEN-RADIATOR Price: $291.41 |
| 12 | 134-0840 | BRACKET Price: $13.67 |
| 13 | 134-0863 | BRACKET Price: $31.87 |
| 14 | 134-0864 | BRACKET Price: $8.51 |
| 15 | 134-1008 | SCREW Price: $0.25 |
| 16 | 134-1009 | SCREW Price: $0.32 |
| 21 | 134-1044 | WASHER Price: $0.25 |
| 22 | 134-1045 | WASHER Price: $0.25 |
| 23 | 134-1054 | WASHER Price: $0.32 |
| 24 | 134-1078 | NUT Price: $0.25 |
| 25 | 134-1084 | NUT Price: $0.25 |
| 26 | 134-1092 | NUT Price: $0.25 |
| 27 | 134-1148 | KNOB Price: $1.46 |
| 28 | 134-1151 | COLLAR Price: $2.22 |
| 29 | 134-1164 | SHOCK ABSORBER Price: $8.78 |
| 30 | 134-1173 | TANK Price: $49.83 |
| 31 | 134-1174 | CLAMP Price: $9.09 |
| 32 | 134-1199 | CLAMP Price: $1.63 |
| 33 | 134-1201 | CLAMP Price: $2.08 |
| 35 | 134-1234 | WASHER Price: $0.25 |
| 36 | 134-1257 | INSERT-THREADED Price: $0.70 |
| 38 | 134-1277 | CLAMP Price: $4.17 |
| 39 | 134-1293 | SCREW Price: $0.28 |
| 40 | 134-1346 | SHOCK ABSORBER Price: $6.02 |
| 41 | 134-1348 | GROMMET Price: $4.59 |
| 43 | 134-2973 | PIPE Price: $5.98 |
| 44 | 134-2974 | GASKET Price: $5.98 |
| 45 | 134-2975 | GASKET Price: $6.02 |
| 46 | 134-2976 | PIPE Price: $61.79 |
| 47 | 134-2977 | PIPE Price: $91.70 |
| 48 | 134-2978 | PIPE Price: $8.48 |
| 50 | 134-3070 | HYDRAULIC HOSE Price: $230.13 |
| 51 | 134-3071 | HYDRAULIC HOSE Price: $189.31 |
| 52 | 134-0997 | WASHER Price: $4.55 |
| 53 | 134-1294 | SCREW Price: $0.93 |
| 54 | 134-1028 | SCREW Price: $0.39 |
| 55 | 134-1200 | CLAMP Price: $1.79 |
| 56 | 134-1026 | SCREW Price: $0.49 |
| 57 | 134-8131 | CAP-RADIATOR Price: $55.76 |
| 58 | 134-8132 | CONNECTOR-2WAY Price: $5.20 |
