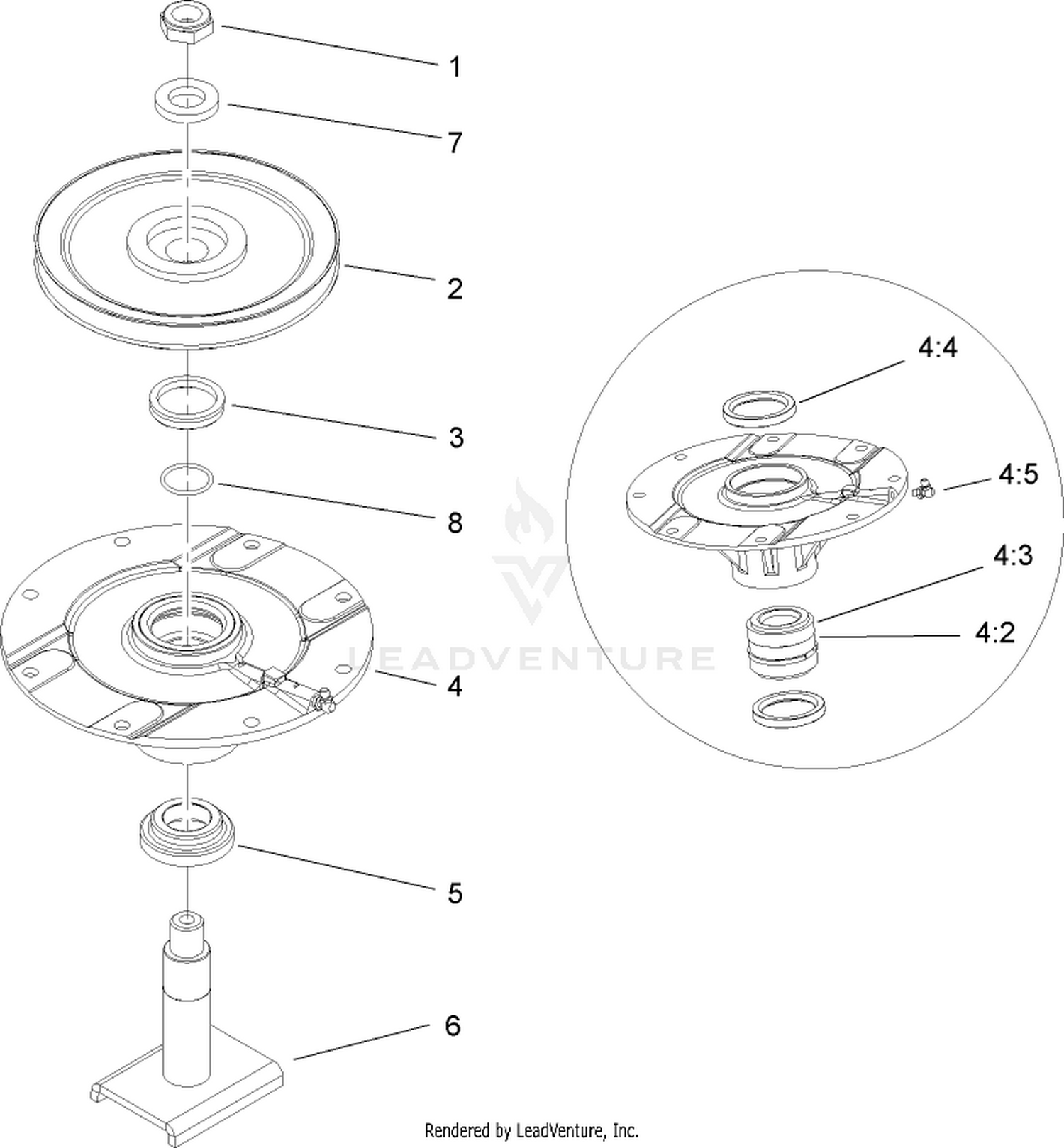

Right and Left Hand Deck Spindle Assembly No. 104-3532
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-60 | NUT-LOCK, NI Price: $5.08 |
| 2 | 104-3546 | PULLEY-DRIVEN, LOW Price: $163.56 |
| 3 | 112-8446 | SEAL-V RING This part replaces 104-3564. Price: $4.26 |
| 4 | 119-4546 | SPINDLE HOUSING ASM This part replaces 104-3552. Price: $244.67 |
| 5 | 138-6416 | SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 6 | 104-3554 | SHAFT-SPINDLE Price: $67.98 |
| 7 | 104-8322 | WASHER-HARDENED Price: $23.22 |
