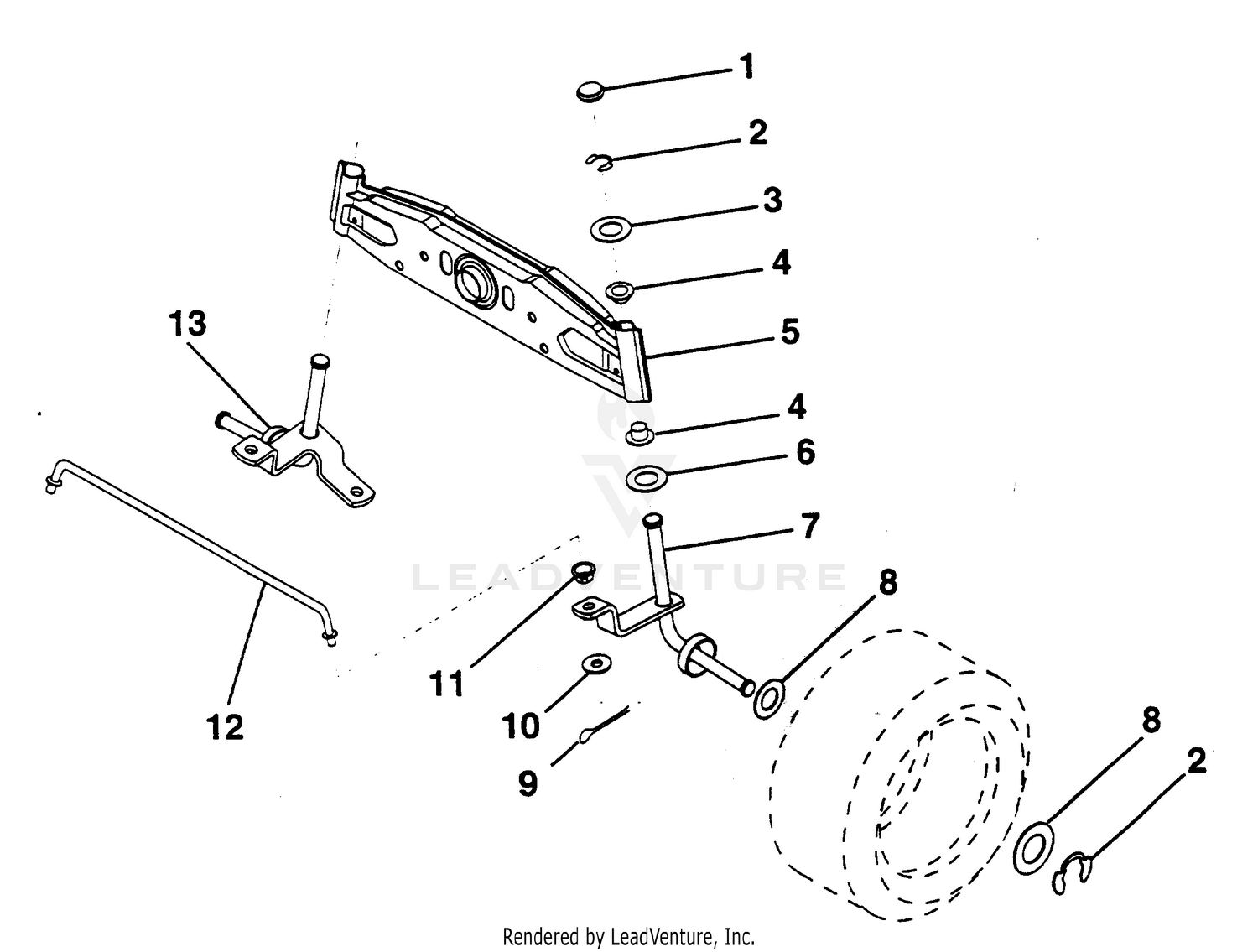

| Ref | Part Number | Description |
|---|
| 1 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 1 |
532121232 |
Cap, Spindle (AYP part number) Price: $1.99 |
| 2 |
132-8136-03 |
COVER-BRACKET, REAR Price: $13.15 |
| 2 |
812000029 |
Ring, Clip (AYP part number) Price: $1.99 |
| 3 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number) Price: $1.99 |
| 3 |
94-2413 |
NUT-U Price: $1.79 |
| 4 |
48-7880 |
NUT-HEX Price: $0.25 |
| 4 |
532121922 |
Nyliner (AYP part number) Price: $2.99 |
| 5 |
43-5920 |
WASHER-LOCK, SPRING This part replaces 48-8000. Price: $0.25 |
| 5 |
532121914 |
Axle, Front (AYP part number) Price: $21.92 |
| 6 |
132-8135-03 |
BRACKET-LAMP, REAR (RH) Price: $313.95 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
119-8093 |
TAIL LIGHT ASM Price: $184.00 |
| 7 |
532121919 |
Spindle, R.H. Asm. (AYP part number) Price: $20.99 |
| 8 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 8 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number) Price: $1.99 |
| 9 |
110-9380 |
SCREW-HWH Price: $1.89 |
| 9 |
876020412 |
Pin, Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 10 |
119-9851-03 |
BRACKET-PIVOT, RH Price: $128.92 |
| 10 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 11 |
104-9412 |
SPRING-COMPRESSION Price: $8.24 |
| 11 |
532126847 |
Bushing (AYP part number) Price: $2.99 |
| 12 |
119-9875 |
WASHER Price: $6.65 |
| 12 |
532121924 |
Rod, Tie (AYP part number) Price: $66.99 |
| 13 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 14 |
119-9850-03 |
BRACKET-PIVOT, LH Price: $135.69 |
