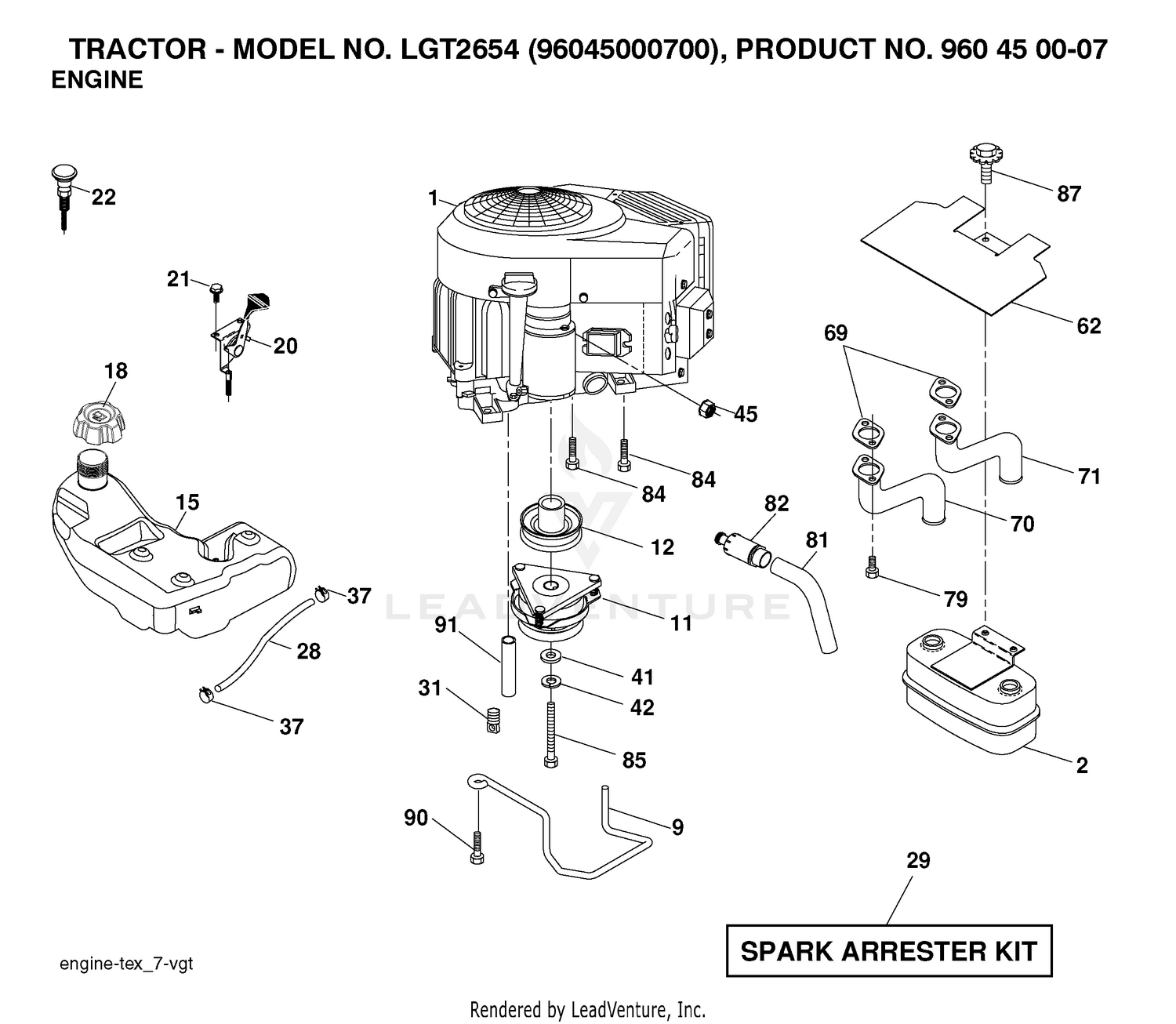

| Ref | Part Number | Description |
|---|
| 1 |
94-3645 |
KEY Price: $13.07 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
94-6359 |
SHAFT-DRIVE Price: $675.42 |
| 3 |
104-4046 |
BEARING-CUP Price: $40.66 |
| 4 |
98-4640 |
SCREW-CAP Price: $7.46 |
| 5 |
98-4644 |
PLATE-COVER Price: $310.82 |
| 6 |
105-9762 |
WASHER Price: $5.90 |
| 7 |
100-3182 |
SHIM KIT Price: $404.35 |
| 8 |
98-4639 |
BEARING-CONE Price: $74.90 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
94-3646 |
KEY Price: $6.56 |
| 10 |
104-4888 |
SWASHPLATE Price: $1,258.52 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 11 |
76-6070 |
ROTATING KIT Price: $1,788.80 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 13 |
104-0429 |
PLATE-VALVE Price: $524.20 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 15 |
76-6150 |
PIN-DOWEL Price: $1.42 |
| 16 |
105-3813 |
ENDCOVER SUB ASM Price: $1,421.33 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 18 |
74-9280 |
PLUG ASM Price: $35.55 |
| 19 |
104-4889 |
RELIEF VALVE ASM Price: $818.85 |
| 20 |
105-3812 |
VALVE-CHECK Price: $570.10 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
105-3811 |
VALVE-BYPASS Price: $170.14 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
76-6170 |
CAPSCREW Price: $2.65 |
| 23 |
76-6160 |
CAPSCREW Price: $3.95 |
| 25 |
98-4645 |
PLATE-COVER Price: $645.16 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
100-3176 |
HOUSING ASM Price: $1,172.62 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 32 |
252-66 |
BEARING-THRUST Price: $10.61 |
| 33 |
33-3720 |
WASHER Price: $11.87 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
98-4635 |
INSERT-PLATE, CAM Price: $167.59 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
74-9040 |
COUPLER Price: $73.91 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
