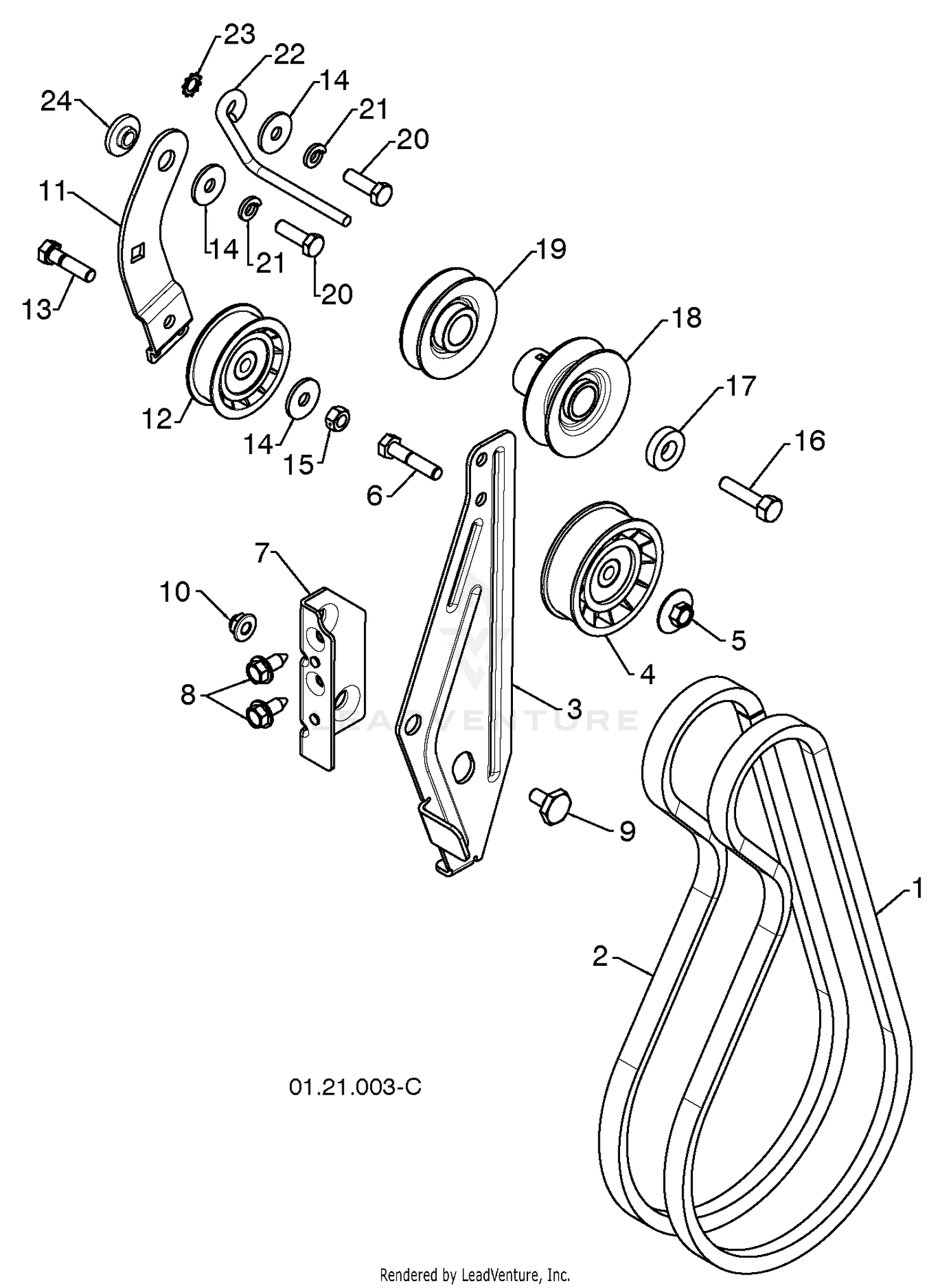

| Ref | Part Number | Description |
|---|
| 1 |
408007 |
IMPELLER BELT Price: Call Us |
| 1 |
98-7697 |
BOLT Price: $1.08 |
| 2 |
419744 |
TRACTION BELT Price: Call Us |
| 2 |
98-7660 |
WASHER-PLAIN This part replaces 98-7698. Price: $0.28 |
| 3 |
423723X431 |
IDLER ARM BRACKET Price: Call Us |
| 3 |
98-7692 |
BOLT Price: $0.92 |
| 4 |
112-7047 |
STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 4 |
180523 |
IDLER PULLEY Price: Call Us |
| 5 |
426589 |
NUT 5/16-18 Price: Call Us |
| 5 |
98-9584 |
PULLEY-FAN Price: $89.56 |
| 6 |
74780524 |
SCREW 5/16-18 X 1 .50 Price: Call Us |
| 6 |
98-9360 |
BOLT Price: $2.35 |
| 7 |
423990X431 |
IDLER BRACKET Price: Call Us |
| 7 |
99-7527 |
WASHER-SPRING This part replaces 98-9368. Price: $1.02 |
| 8 |
428867 |
SCREW 5/16-18 X .625 Price: Call Us |
| 8 |
98-9366 |
WASHER-PLAIN Price: $0.28 |
| 9 |
424297 |
SHOULDER BOLT 5/16-18 X .500 Price: Call Us |
| 9 |
98-9700 |
TERMINAL ASM Price: $3.16 |
| 10 |
751153 |
NUT 5/16-18 NYLOCK Price: Call Us |
| 10 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 11 |
187786 |
TRACTION IDLER ARM Price: Call Us |
| 11 |
99-8363 |
BOLT-FLANGE Price: $1.66 |
| 12 |
180522 |
TRACTION PULLEY Price: Call Us |
| 12 |
98-9602 |
LOCK COUPLER ASM Price: $17.36 |
| 13 |
74780520 |
SCREW 5/16-18 X 1 .00 Price: Call Us |
| 13 |
98-9696 |
COUPLER ASM Price: $6.53 |
| 14 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 14 |
59289 |
WASHER Price: Call Us |
| 15 |
73800500 |
NUT 5/16-18 Price: Call Us |
| 15 |
98-9676 |
V-BELT Price: $31.01 |
| 16 |
104-1247 |
PULLEY-FAN DRIVE Price: $208.24 |
| 16 |
851084 |
SCREW 3/8-24 X 1.375 Price: Call Us |
| 17 |
400026 |
WASHER Price: Call Us |
| 18 |
426491 |
PULLEY ENG IMPELLER Price: Call Us |
| 19 |
426490 |
PULLEY ENG TRACTION Price: Call Us |
| 20 |
74610516 |
SCREW 5/16-18 X 1 .00 Price: Call Us |
| 21 |
10040500 |
LOCKWASHER 5/16 Price: Call Us |
| 22 |
155452 |
BELT GUIDE Price: Call Us |
| 23 |
11050500 |
LOCKWASHER 5/16 Price: Call Us |
