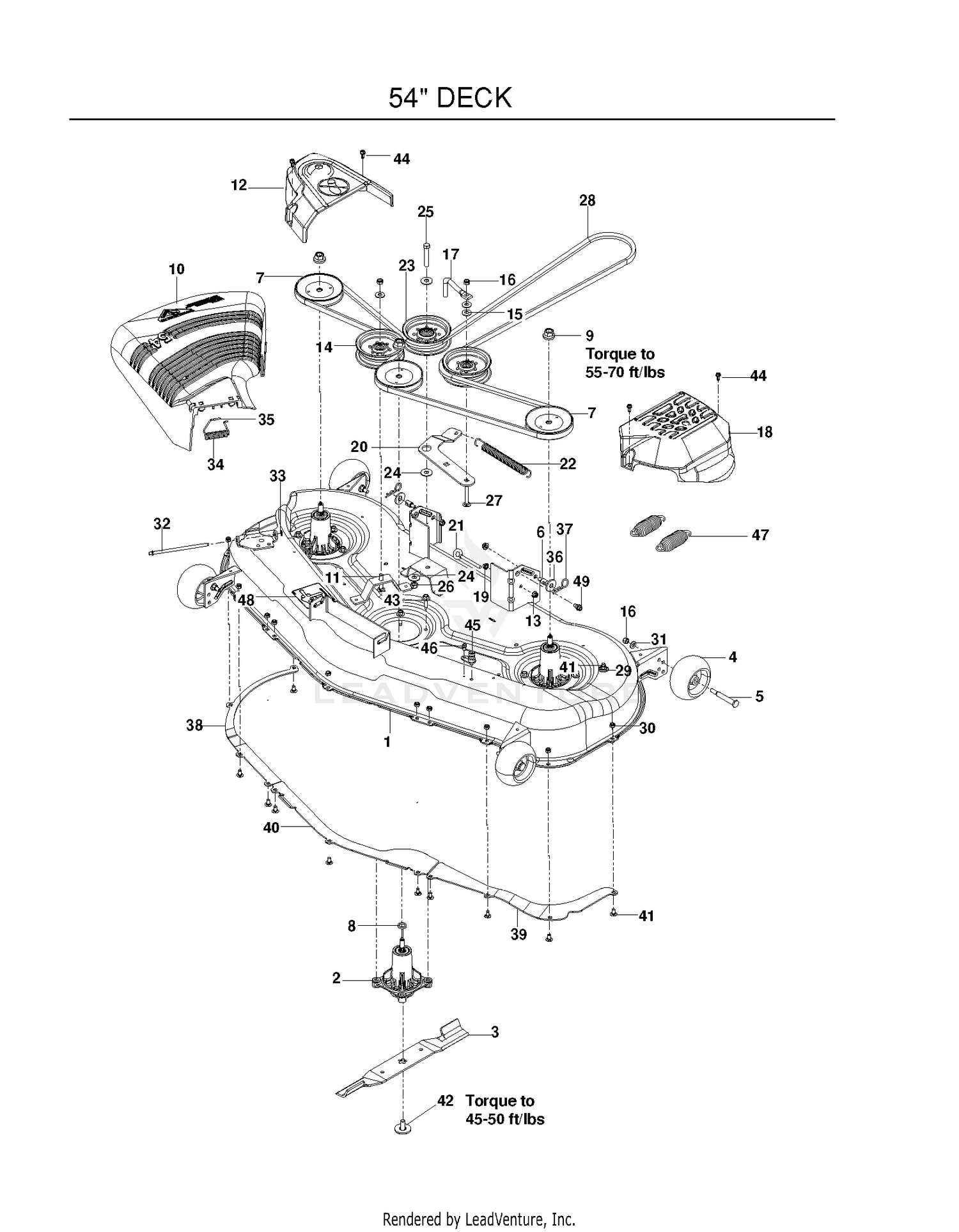

| Ref | Part Number | Description |
|---|
| 1 |
3211-2 |
SCREW-HH Price: $2.17 |
| 2 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 2 |
587125401 |
MANDREL.W/SPCR.BRG.TALL.NONREV This part replaces 539112057. Price: $32.99 |
| 3 |
5-1720 |
WASHER Price: $2.24 |
| 3 |
532187256 |
BLADE.BAGGING.54" This part replaces 777187256. Price: $17.99 |
| 4 |
352-160 |
PIN Price: $7.99 |
| 4 |
532133957 |
Wheel, Gauge (AYP part number) This part replaces 539107610. Price: $9.99 |
| 5 |
5-0786 |
KEY Price: $13.87 |
| 5 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8. This part replaces 539107608. Price: $1.99 |
| 6 |
352-146 |
DISCONTINUED Price: Call Us |
| 6 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 7 |
352-147 |
DISCONTINUED Price: Call Us |
| 7 |
532173436 |
PULLEY MANDREL This part replaces 539112171. Price: $7.99 |
| 8 |
352-183 |
DISCONTINUED Price: Call Us |
| 8 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $1.99 |
| 9 |
352-162 |
DISCONTINUED Price: Call Us |
| 9 |
532400234 |
NUT.FLANGE.LOCK.TOP This part replaces 539107590. Price: $3.99 |
| 10 |
352-148 |
DISCONTINUED Price: Call Us |
| 10 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 539112054. Price: $54.99 |
| 11 |
352-144 |
DISCONTINUED Price: Call Us |
| 11 |
539100145 |
RHSNB 3/8C X 2 Price: $1.99 |
| 12 |
352-188 |
DISCONTINUED Price: Call Us |
| 12 |
532188187 |
COVER.MANDREL.RH.DECK.54" Price: $22.99 |
| 13 |
3210-9 |
SCREW-HH Price: $0.61 |
| 14 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 14 |
532196106 |
PULLEY.IDLER.2006 Price: $14.99 |
| 15 |
251-148 |
DISCONTINUED Price: Call Us |
| 15 |
539990517 |
WASHER 3/8 FLAT Price: $1.99 |
| 16 |
3210-4 |
SCREW-HH Price: $0.81 |
| 16 |
539976979 |
NUT 3/8-16 NYLOC Price: $1.99 |
| 17 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 17 |
522629701 |
BELT KEEPER 5" Price: $2.99 |
| 18 |
3-5696 |
DISCONTINUED Price: $2.00 |
| 18 |
532187297 |
COVER.MANDREL.LH.DECK.54" Price: $22.99 |
| 19 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 19 |
539990585 |
NUT 5/16C WHIZ Price: $1.99 |
| 20 |
323-6 |
SCREW-HH Price: $0.66 |
| 20 |
510220002 |
ARM.IDLER.BLACK Price: $24.99 |
| 21 |
4-4649 |
DISCONTINUED Price: Call Us |
| 21 |
539115574 |
EYE BOLT 5/16 X 3.50 Price: $4.99 |
| 22 |
3211-13 |
DISCONTINUED Price: Call Us |
| 22 |
539120920 |
SPRING, DECK BELT Price: $5.99 |
| 23 |
352-250 |
DISCONTINUED Price: Call Us |
| 23 |
532196104 |
PULLEY.IDLER.MWR.STATIONARY.LH Price: $22.99 |
| 24 |
352-199 |
DISCONTINUED Price: Call Us |
| 24 |
539104864 |
WASHER 7/16 FLAT ZD Price: $1.99 |
| 25 |
3-6532 |
DISCONTINUED Price: Call Us |
| 25 |
539104870 |
BOLT 7/16-14 X 2-1/2 GR 5 ZD Price: $1.99 |
| 26 |
3219-3 |
NUT-HEX Price: $0.34 |
| 27 |
3-1314 |
Bracket Price: Call Us |
| 27 |
539128101 |
CARRIAGE BOLT 3/8-16 X Price: $1.99 |
| 28 |
5-1718 |
KEY-CLUTCH Price: $8.57 |
| 28 |
539114557 |
BELT-DECK, 52 Price: $64.99 |
| 29 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 29 |
539990188 |
FLAT WASHER 5/16 SAE Price: $1.99 |
| 30 |
3-8951 |
DISCONTINUED Price: Call Us |
| 30 |
539990717 |
NUT 5/16 NYLOC Price: $1.99 |
| 31 |
5-1717 |
DISCONTINUED Price: Call Us |
| 31 |
539990122 |
WASHER 3/8 SAE FLAT Price: $1.99 |
| 32 |
3247-2 |
SCREW-SET, HSH Price: $0.68 |
| 32 |
532131491 |
ROD.HINGE This part replaces 539110462. Price: $1.99 |
| 33 |
5-1825 |
DISCONTINUED Price: Call Us |
| 33 |
532110452 |
NUT PUSH M This part replaces 539107626. Price: $1.99 |
| 34 |
5-1733 |
DISCONTINUED Price: Call Us |
| 34 |
539107609 |
TORSION SPRING Price: $1.99 |
| 35 |
3219-2 |
NUT-HEX Price: $0.37 |
| 35 |
532105304 |
CAP-SLEEVE LT This part replaces 539107627. Price: $2.99 |
| 36 |
5-1896 |
DISCONTINUED Price: Call Us |
| 36 |
539109554 |
WASH USS FLAT 1/2 Price: $1.99 |
| 37 |
281-7 |
CAP-PIPE Price: $3.69 |
| 37 |
539976989 |
HAIRPIN #4 Price: $1.99 |
| 38 |
321-3 |
SCREW-HH Price: $0.28 |
| 38 |
532187342 |
BAFFLE.RIGHT.54" This part replaces 539112059. Price: $12.99 |
| 39 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
532187344 |
BAFFLE.LEFT.54" This part replaces 539112060. Price: $14.99 |
| 40 |
3-8129 |
DISCONTINUED Price: Call Us |
| 40 |
532187607 |
BAFFLE CENTER 54" MOWER This part replaces 539112062. Price: $17.99 |
| 41 |
5-1732 |
DISCONTINUED Price: Call Us |
| 41 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE Price: $1.99 |
| 42 |
3257-4 |
DISCONTINUED Price: Call Us |
| 42 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 43 |
5-1735 |
DISCONTINUED Price: Call Us |
| 43 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $1.99 |
| 44 |
5-1715 |
DISCONTINUED Price: Call Us |
| 44 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 539107631. Price: $2.99 |
| 45 |
256-8 |
DISCONTINUED Price: Call Us |
| 45 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 46 |
3217-7 |
NUT-HEX Price: $0.28 |
| 46 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $1.99 |
| 47 |
5-1716 |
DISCONTINUED Price: Call Us |
| 47 |
539118762 |
SPRING Price: $17.99 |
| 48 |
3210-1 |
SCREW-HH Price: $6.29 |
| 48 |
539112620 |
DECAL, BELT ROUTING Price: $4.99 |
| 49 |
5-1912 |
DISCONTINUED Price: Call Us |
| 50 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 51 |
329-2 |
SCREW-HH Price: $3.68 |
| 52 |
1-8429 |
DISCONTINUED Price: Call Us |
| 53 |
3294-2 |
DISCONTINUED Price: Call Us |
| 54 |
32120-76 |
RING-SNAP, EXT Price: $0.34 |
| 55 |
352-251 |
DISCONTINUED Price: Call Us |
| 56 |
352-255 |
DISCONTINUED Price: Call Us |
| 57 |
352-258 |
DISCONTINUED Price: Call Us |
| 58 |
352-257 |
DISCONTINUED Price: Call Us |
| 59 |
352-159 |
DISCONTINUED Price: Call Us |
| 60 |
5-1911 |
DISCONTINUED Price: Call Us |
| 61 |
3-1346 |
DISCONTINUED Price: $2.00 |
| 62 |
5-1737 |
DISCONTINUED Price: Call Us |
| 63 |
5-1736 |
DISCONTINUED Price: Call Us |
| 64 |
32130-2 |
DISCONTINUED Price: Call Us |
| 65 |
352-150 |
DISCONTINUED Price: Call Us |
| 66 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 67 |
5-3613 |
DISCONTINUED Price: Call Us |
| 68 |
32120-77 |
DISCONTINUED Price: Call Us |
| 69 |
5-1731 |
DISCONTINUED Price: Call Us |
| 70 |
5-1734 |
TRCTN SPRKT BUSHING Price: $22.53 |
