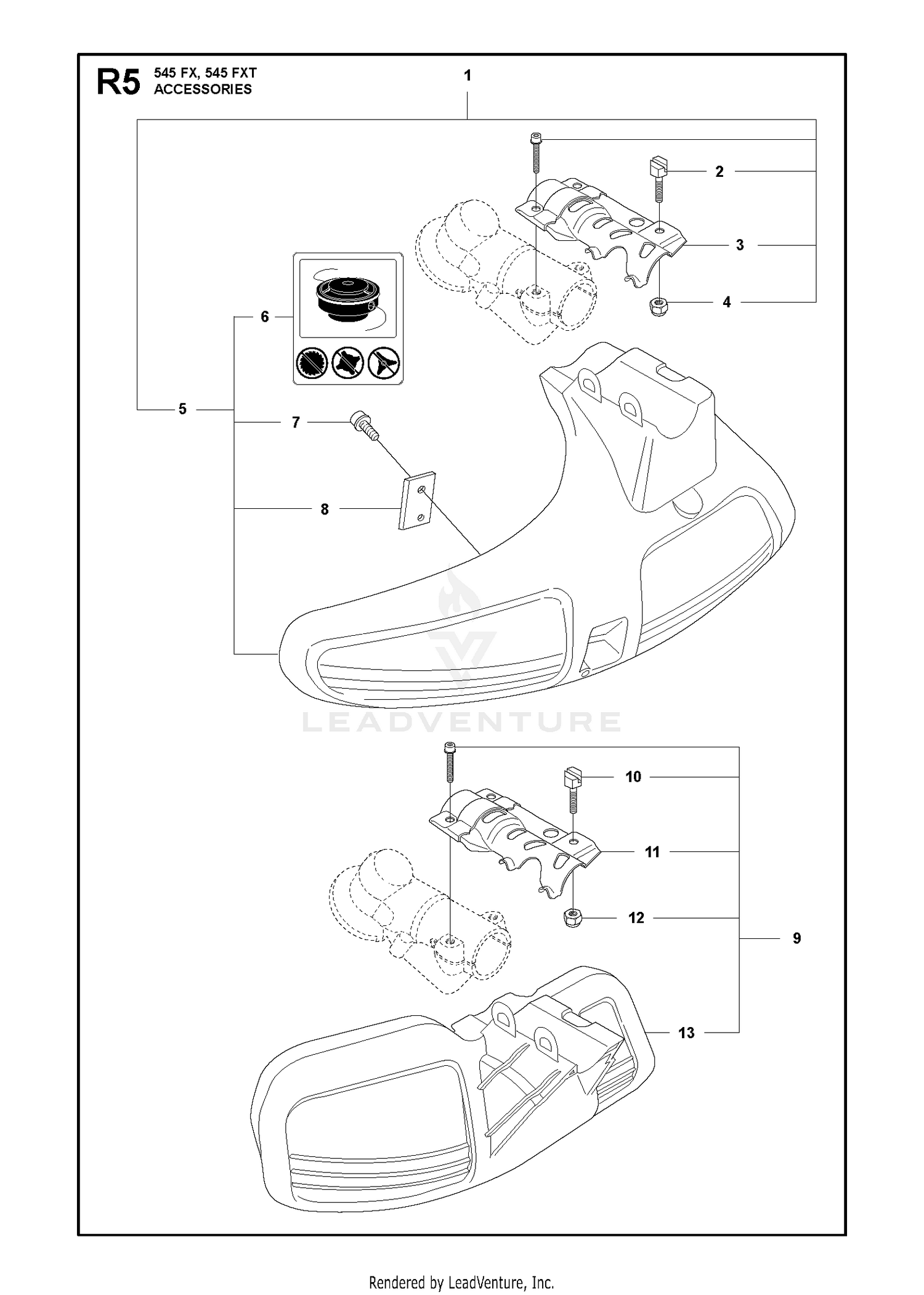

| Ref | Part Number | Description |
|---|
| 1 |
3296-45 |
NUT-HEX Price: $3.79 |
| 1 |
537297301 |
TRIMMER GUARD ASSY Price: $59.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
537189501 |
SCREW Price: $3.99 |
| 3 |
537230301 |
PLATE Price: $11.99 |
| 3 |
80-7970 |
TUBE-RETURN Price: $9.85 |
| 4 |
80-7960 |
BRACKET-SPRING Price: $14.27 |
| 5 |
503954302 |
PROTECTOR Price: $44.99 |
| 5 |
80-5140-03 |
LEVER-LIFT Price: $163.29 |
| 6 |
32121-66 |
PIN-ROLL Price: $0.68 |
| 6 |
503742901 |
DECAL Price: $3.99 |
| 7 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
503210716 |
SCREW Price: $2.99 |
| 8 |
325-22 |
SCREW-HH Price: $4.26 |
| 8 |
537285301 |
BLADE Price: $9.99 |
| 9 |
323-7 |
SCREW-HH Price: $0.65 |
| 9 |
537297401 |
TRIMMER GUARD COMPL Price: $54.99 |
| 10 |
537189501 |
SCREW Price: $3.99 |
| 11 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 11 |
537230301 |
PLATE Price: $11.99 |
| 12 |
117-5115 |
HUB AND BEARING ASM This part replaces 80-6570. Price: $163.75 |
| 12 |
732211601 |
LOCKNUT M6 Price: $4.99 |
| 13 |
537288501 |
BLADE GUARD Price: $34.99 |
| 13 |
72-4310 |
SWITCH-BALL Price: $84.47 |
| 14 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 15 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 16 |
3220-7 |
NUT-JAM Price: $4.09 |
| 18 |
93-1663-01 |
ARM-LIFT, MASKED Price: $350.82 |
| 19 |
86-8690 |
SHAFT-LIFT Price: $394.68 |
| 20 |
80-5560 |
BUSHING ASM Price: $62.64 |
| 22 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 23 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 24 |
325-14 |
SCREW-HH Price: $2.64 |
| 25 |
14-5219 |
LIFT ACTUATOR ASM Price: $1,542.81 |
| 27 |
80-7870 |
SPRING-EXTENSION Price: $17.55 |
| 28 |
80-8270 |
BRACKET-SPEED ADJUST Price: $30.18 |
| 29 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 39 |
106-9682 |
LIMIT SWITCH TUBE ASM This part replaces 86-9030. Price: $104.04 |
