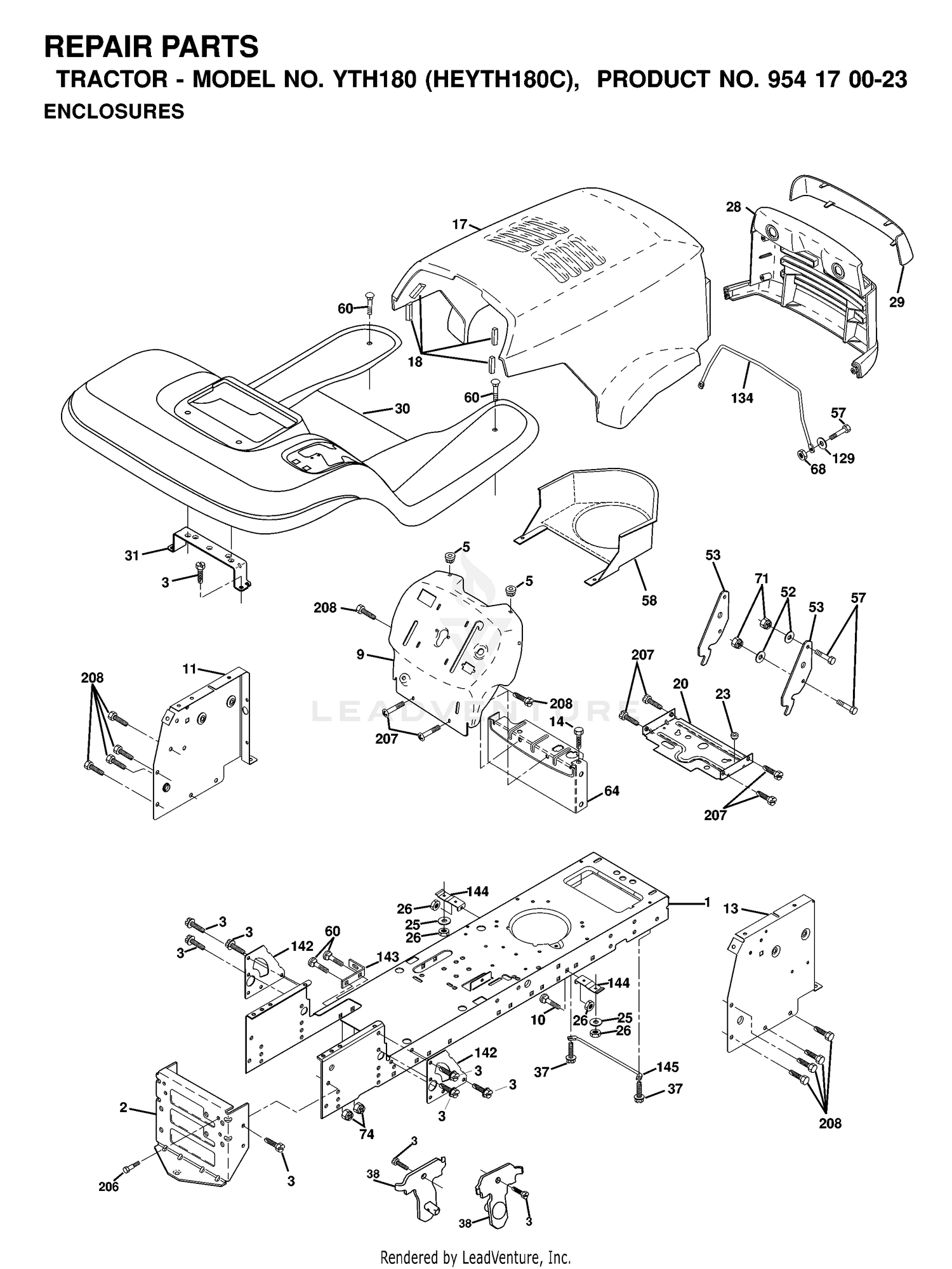

| Ref | Part Number | Description |
|---|
| 1 |
532169830 |
CHASSIS Price: $99.99 |
| 2 |
532176554 |
DRAWBAR, 12GA This part replaces 532169061. Price: $37.99 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 9 |
532168345 |
DASH This part replaces 532171924. Price: $32.72 |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM Price: $196.85 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 13 |
532172106 |
PANEL ASM, DASH RH This part replaces 532169115. Price: $14.99 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 17 |
532156051 |
HOOD - LT/YT This part replaces 532165378. Price: $549.99 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 25 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) Price: $60.46 |
| 25 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) Price: $66.64 |
| 25 |
115-4121 |
METAL-CRANKSHAFT (STD) Price: $86.06 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532165379. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA This part replaces 532165380. Price: $24.99 |
| 30 |
131-6554 |
GASKET-CASE, BEARING Price: $7.12 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532171854. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR This part replaces 532169834. Price: $9.99 |
| 40 |
112-7046 |
COVER-CASE, BEARING Price: $66.00 |
| 50 |
112-0180 |
SEAL-OIL Price: $58.48 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532174930 |
DUCT, INTAKE AIR This part replaces 532162266. Price: $19.99 |
| 60 |
112-7037 |
GASKET-COVER, CASE Price: $14.14 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 68 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 70 |
127-0441 |
BOLT Price: $0.61 |
| 71 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 80 |
127-0442 |
BOLT Price: $0.61 |
| 90 |
115-4106 |
MAIN BEARING CASE ASM Price: $189.84 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 105 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) Price: $60.46 |
| 105 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 105 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 120 |
115-4107 |
MAIN BEARING CASE ASM Price: $152.88 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 130 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 134 |
532160219 |
ROD SUPPORT HOOD LT/PL HUS. Price: $7.99 |
| 140 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) Price: $60.46 |
| 140 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532165867. Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST This part replaces 532154207. Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
