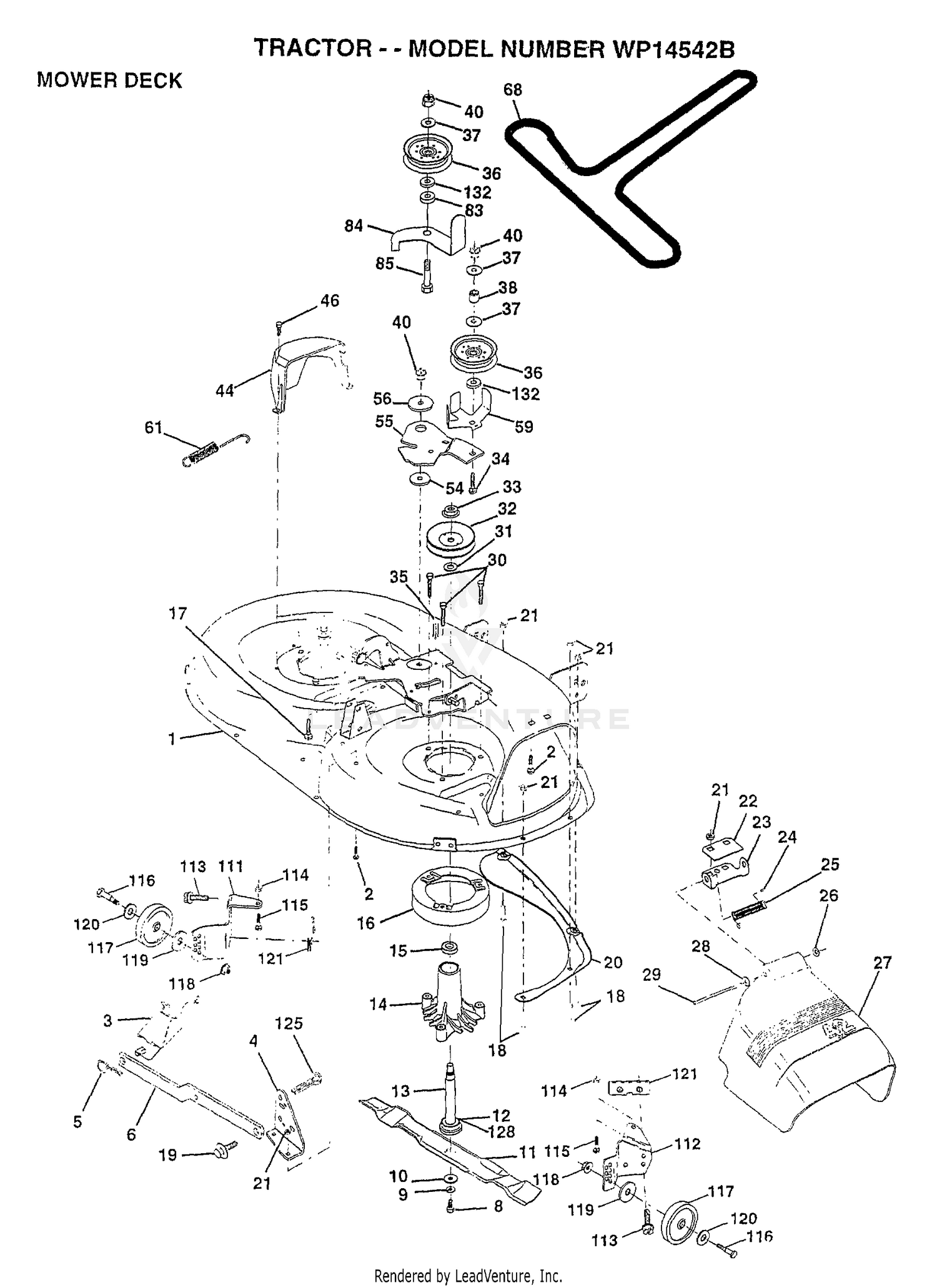

| Ref | Part Number | Description |
|---|
| 1 |
144393 |
DECK.WELD.42. Price: Call Us |
| 1 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 2 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
2412-109 |
CLIP-J Price: $3.82 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
237-100 |
GROMMET Price: $9.73 |
| 5 |
104-5232 |
CLIP-WIRE Price: $3.13 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
105-9279 |
HARNESS-WIRE, CONTROL PANEL Price: $133.94 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
82-9790 |
HARNESS Price: $69.81 |
| 10 |
104-5205 |
HARNESS-WIRE, MICRO SWITCH Price: $38.58 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 11 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
321-5 |
SCREW-HH Price: $0.22 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 15 |
106-7053 |
CABLE-BATTERY, NEGATIVE Price: $68.25 |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
104-0086 |
CABLE-BATTERY, POSITIVE Price: $78.07 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 17 |
106-7052 |
HARNESS, WIRE Price: $804.89 |
| 17 |
72110618 |
BOLT CARRIAGE Price: Call Us |
| 18 |
72140505 |
BOLT Price: Call Us |
| 18 |
82-9750 |
HARNESS Price: $24.36 |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 20 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 21 |
43-0090 |
SCREW-HH Price: $8.05 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
2412-74 |
R-CLAMP Price: $2.37 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
37-2690 |
CAPACITOR Price: $155.98 |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
82-9230 |
HARNESS Price: $58.83 |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
98-3819 |
HARNESS-WIRE, LIGHT CLUSTER Price: $168.52 |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
72110622 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
86-5990 |
HARNESS-FILTER Price: $18.14 |
| 38 |
132823 |
SUB= 532132823 Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
66-8800 |
RELAY Price: $87.56 |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 44 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 45 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 46 |
321-4 |
SCREW-HH Price: $0.99 |
| 47 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
140084 |
SUB= 151785 Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 61 |
131950 |
SPRING.EXTENSION Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 83 |
120958X |
WASHER Price: Call Us |
| 85 |
72140618 |
BOLT RDHD 3/8-16 Price: Call Us |
| 111 |
155197 |
BRACKET.GWHL.LH. Price: Call Us |
| 112 |
155198 |
BRACKET.GWHL.RH. Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 114 |
73510500 |
NUT Price: Call Us |
| 115 |
72110504 |
SUB= 872110504 Price: Call Us |
| 116 |
4898H |
BOLT M Price: Call Us |
| 117 |
105455X |
WHEEL.GAGE.BLK.PL Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 120 |
19171512 |
WASHER Price: Call Us |
| 121 |
143723 |
BRACKET.EXTRD.GWL Price: Call Us |
| 125 |
76020816 |
COTTER PIN Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 132 |
19132203 |
WASHER GT Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
