Engine Accessories and PTO RZT 42

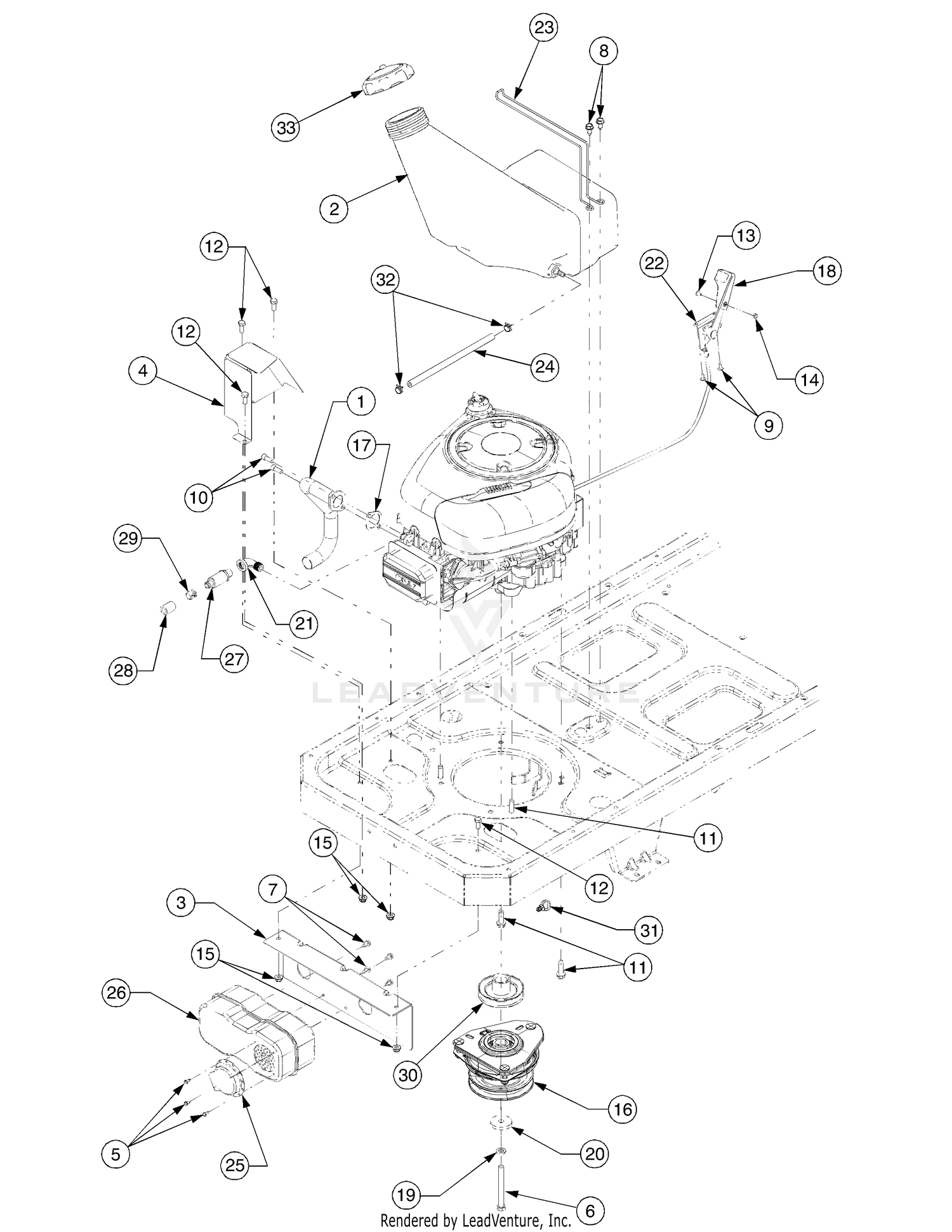

Engine Accessories and PTO RZT 42

Parts (30)

RefPart NumberDescription
1 603-04176A EXHAUST TUBE This part replaces 603-04176. Price: $90.71
2 751-10057D Fuel Tank This part replaces 751-10057C. Price: $271.40
3 703-05441A Bracket, Muffler Mounting Price: $48.35
4 703-05870 HEAT SHIELD Not Available Price:
5 710-0227 Screw, Hex Wash. Hd. Tapp #8-18 x .5 Price: $3.90
6 710-04248 Screw, Hex Cap, 7/16-20 x 4.0 GR5 Price: $10.13
7 710-0599 Screw, Hex Wash. Hd. Tapp 1/4-20 x .5 Price: $3.86
8 710-0726 Screw, Hex Wash. Hd. Tapp 5/16-12 x .75 Price: $3.82
9 710-04261 Screw, Hex Wash. Hd. Tapp #12-16 x .5 Price: $5.45
10 710-1314A Screw, Socket Hd. 5/16-18 x .75 Price: $4.05
11 710-1315 Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25 Price: $3.90
12 710-3008 SCREW 5/16-18 x .75 GR5 Price: $3.76
13 710-3217 Screw, Truss Hd. Mach. #8-32 x .375 Price: $5.94
14 712-0142 Nut, Hex, #8-32 Price: $3.90
15 712-04063 Nut, Hx Insert Flange Lck, 5/16-18 GrF Price: $3.56
17 BS-692236 Exhaust Gasket This part replaces 721-0208. Price: $4.66
18 731-04914 Knob, Throttle Control Price: $11.56
19 736-0171 Washer, Lock, 7/16 Price: $3.86
20 736-04131 Washer, Flat, .438 x 1.75 x .25 Price: $14.01
22 946-04161 Cable, Throttle, 39.0 Lg This part replaces 746-04161. Price: $46.22
23 747-04228A FUEL TANK MOUNTING WIRE Not Available Price:
24 751-10349 Hose, Fuel Line 6.5 in Price: $8.11
25 751-0564B Deflector, Muffler Price: $12.14
26 951-0617C Single Inlet Muffler This part replaces 751-0617B. Price: $138.70
27 951-10517A Oil Drain This part replaces 751-3140. Price: $22.67
28 751-3141-14 Oil Drain, Extension Hose This part replaces 751-3141. Price: $10.40
29 751-3142 Cap, Oil Drain Valve Price: $3.81
30 756-0978B Pulley, Engine, 3.56 Diameter This part replaces 756-0978A. Price: $58.13
31 726-3055 Clip, Cable Retainer Price: $6.06
32 726-0205 Clamp, Hose Price: $3.71
